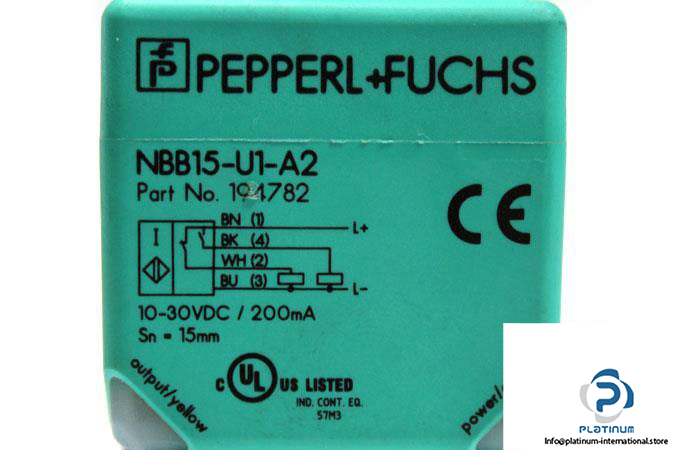

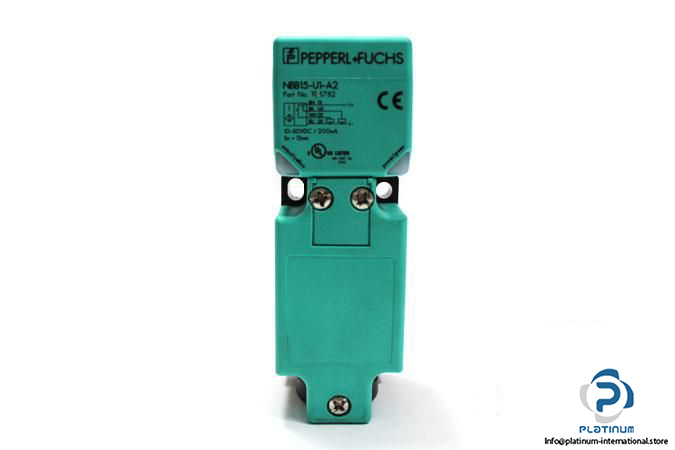

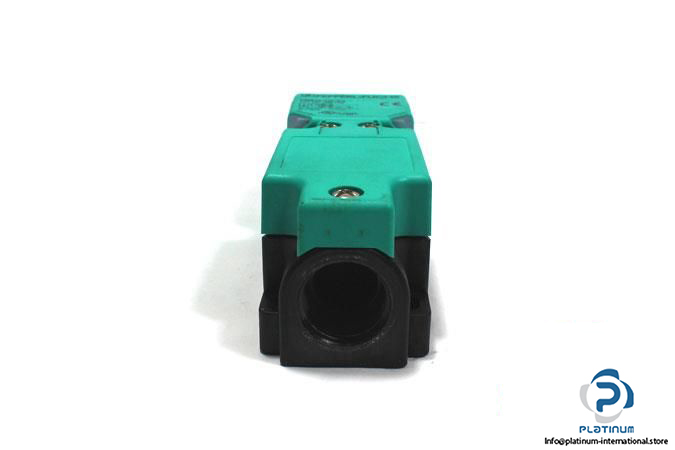

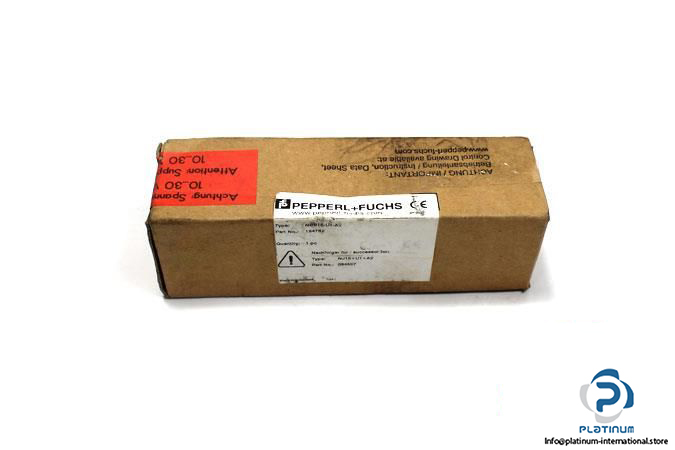

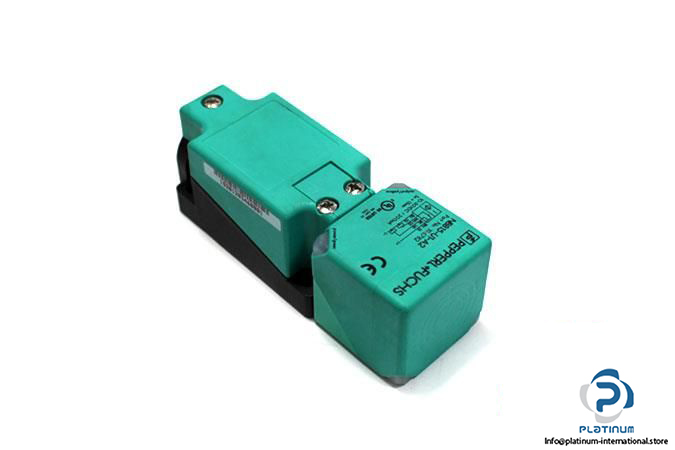

Pepperl+Fuchs NBB15-U1-A2 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NBB15U1A2

Part No.: 194782

Rated operating distance: 15 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching frequency: 0 … 560 Hz

Electrical design: PNP

Switching output: Normally open/Normally closed (Complementary)

Connector type: Terminal compartment

Protection class: II

Enclosure rating: IP68/IP69K

Ambient Operating temperature: -25 … 85°C

Dimensions: 40 x 40 x 118 mm

Weight: 225 g

Housing material: Plastic

Sensing face material: PA

Mounting: Flush-mountable

Condition: New
