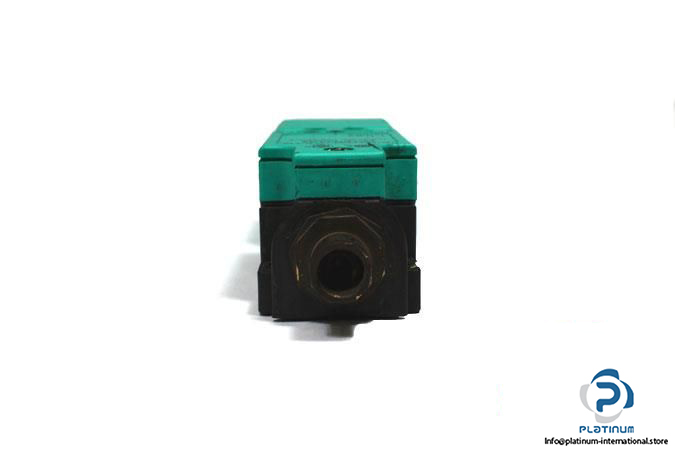

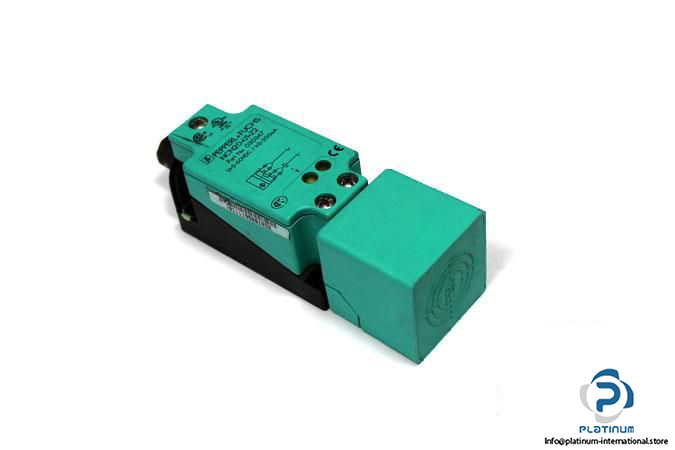

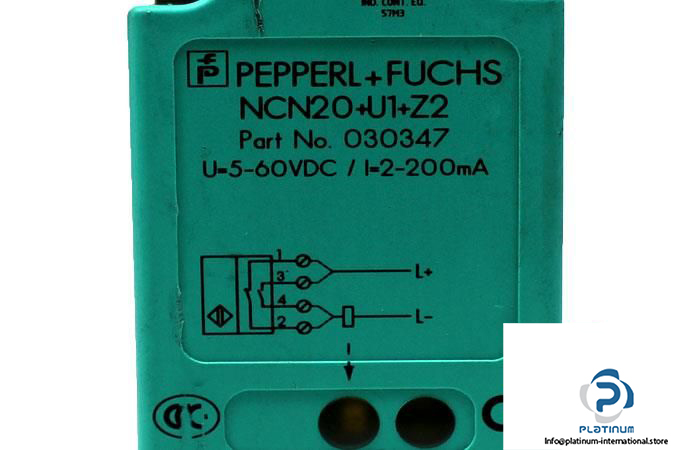

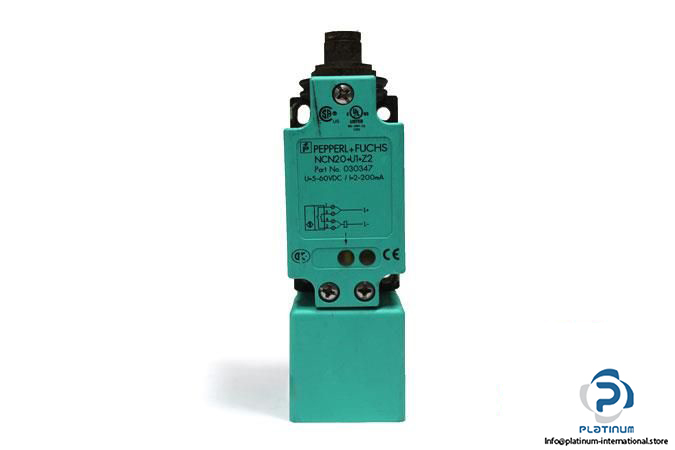

Pepperl+Fuchs NCN20+U1+Z2 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Series: VariKont

Type: INDUCTIVE SENSOR

Model No.: NCN20U1Z2

Part No.: 030347

Replaced by: NBB20-U1-Z2

Rated operating distance: 20 mm

Assured operating distance: 0 … 16.2 mm

Operating Voltage: 5 … 60 V DC

Operating Current: 2 … 200 mA

Switching frequency: 0 … 250 Hz

Switching output: Normally open/normally closed

Connector type: Terminal compartment

Protection class: II

Enclosure rating: IP68

Ambient Operating temperature: -25 … 70°C

Dimensions: 40 x 40 x 118 mm

Housing material: PBT

Sensing face material: PBT

Mounting: Non-flush mountable

Condition: Used
