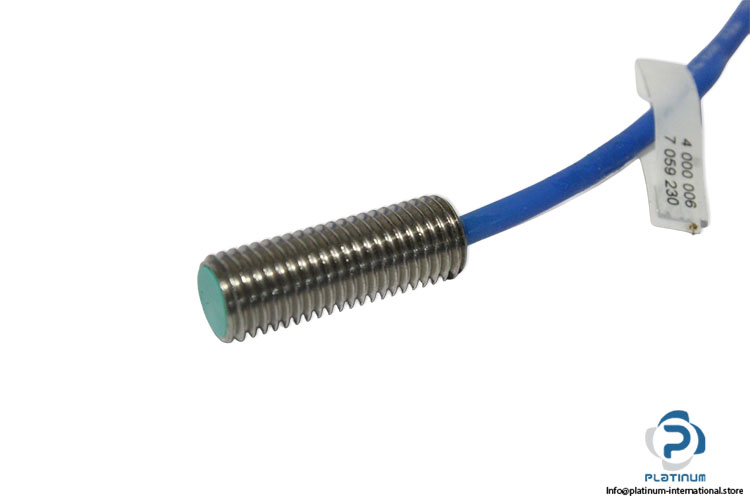

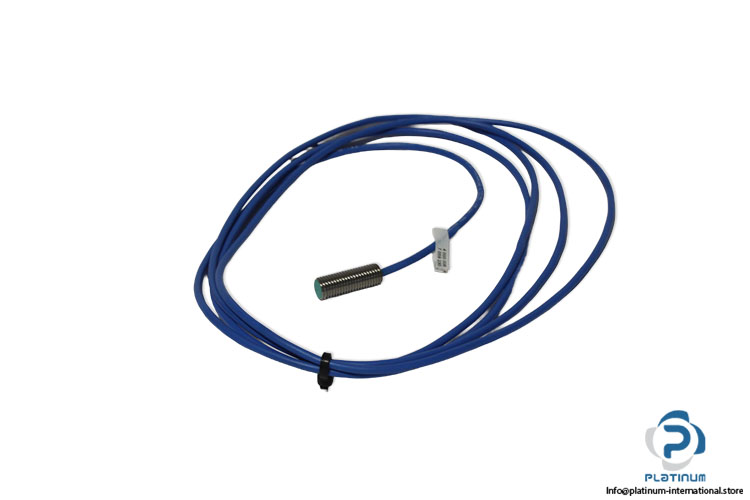

Pepperl+Fuchs NJ1,5-8GM-N Inductive Sensor
Yeni
Stokta1 birimSevkiyata hazır
Inductive Sensor The PEPPERL+FUCHS NJ1,5-8GM-N is an inductive sensor with 1.5 mm sensing range, NAMUR NC output and IP66/IP67 protection for industrial automation.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

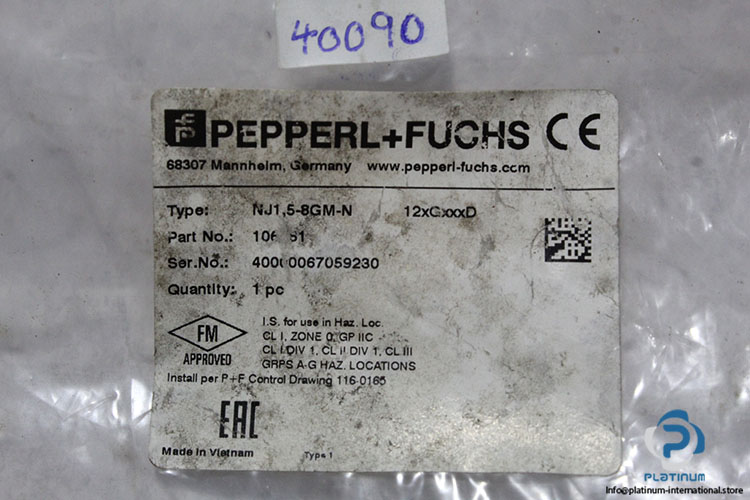

| Part No. | 106361 |
| Ser. No. | 40000067059230 |
| Series | NJ1.5 |
| Sensing Range | 1.5 mm |
| Nominal Voltage | 8.2 V |
| Current Consumption | Measuring Plate Detected = 1 mA / Not Detected = 3 mA |
| Switching Output | NAMUR Normally Closed (NC) |
| Switching Frequency | 0 ... 5000 Hz |

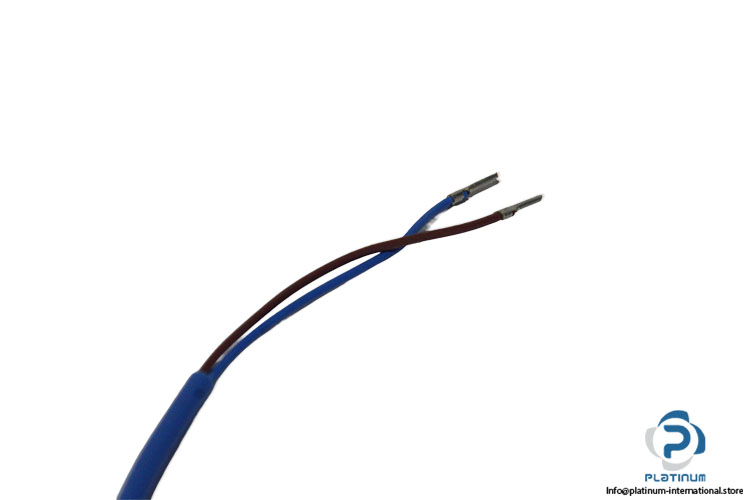

| Electrical Connection | Cable 2-Wires 2m |
| Housing Material | Stainless Steel 1.4305 / AISI 303 |
| Protection Class | IP66/IP67 |
| Ambient Temperature | -25 … 100 °C |
| Length, Diameter | 22, 8 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103912 |
| Weight | 0,04 |
