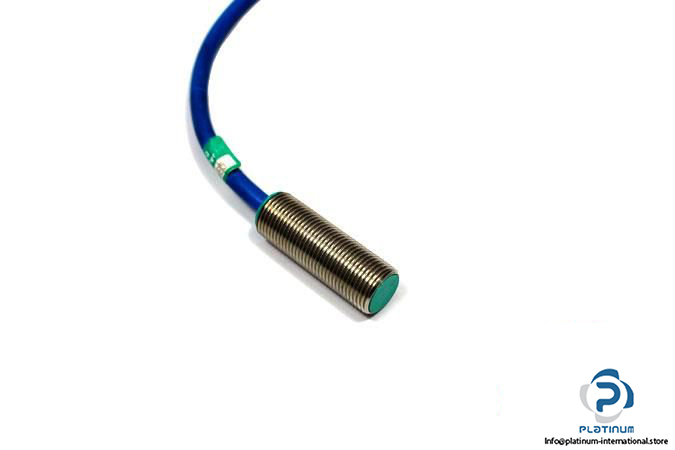

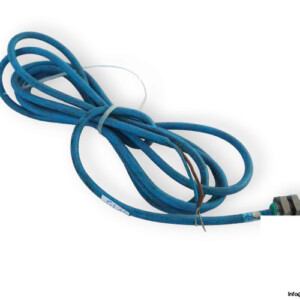

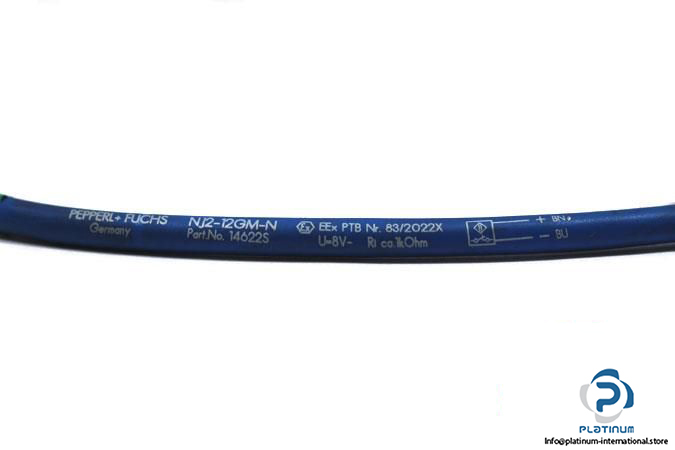

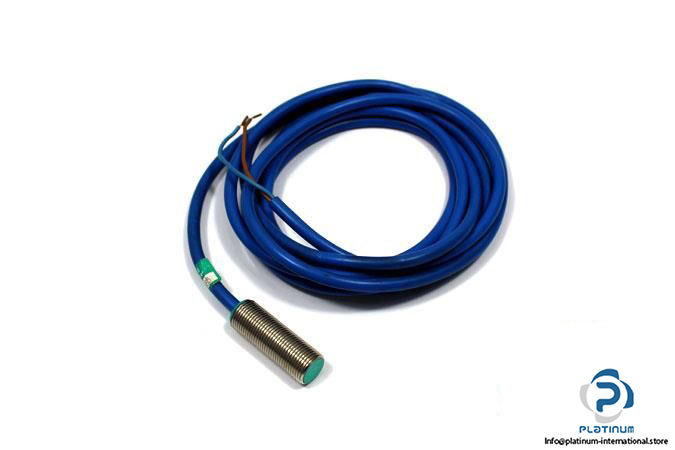

Pepperl+Fuchs NJ2-12GM-N Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ212GMN

Part No.: 14622S

Rated operating distance: 2 mm

Assured operating distance: 0 … 1.62 mm

Operating Voltage: 8 V DC

Current consumption (Measuring plate not detected): ≥ 3 mA

Current consumption (Measuring plate detected): ≤ 1 mA

Switching frequency: 0 … 2000 Hz

Output type: NAMUR

Switching output: Normally closed

Connector type: PVC Cable, 2 m

Protection class: II

Enclosure rating: IP66/IP67

Ambient Operating temperature: -25 … 100°C

Dimensions: 12, 35 mm

Housing material: PBT

Sensing face material: PBT

Mounting: Flush-mountable

Condition: New
