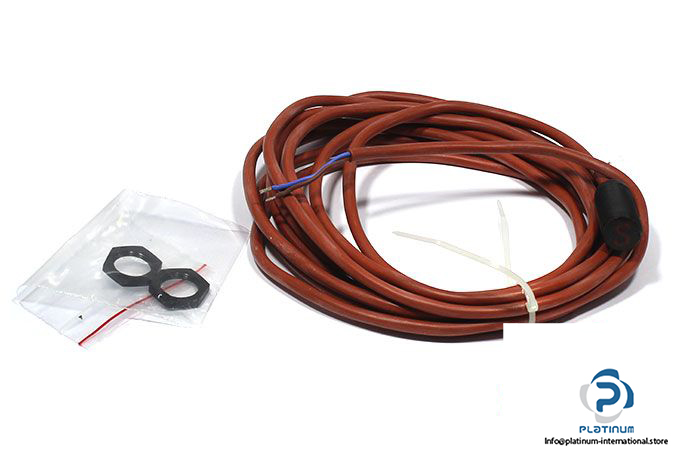

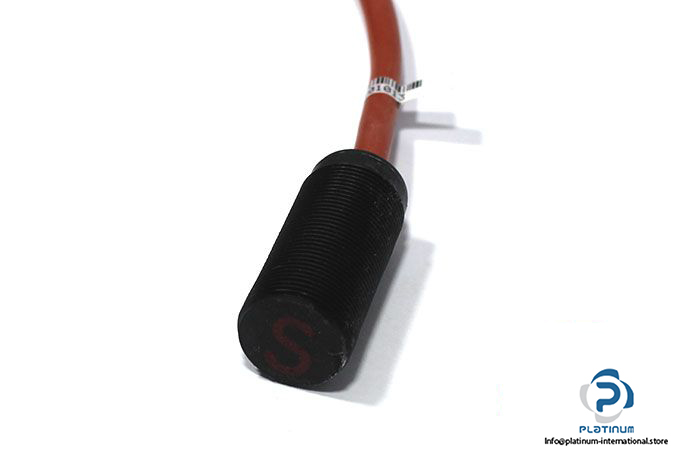

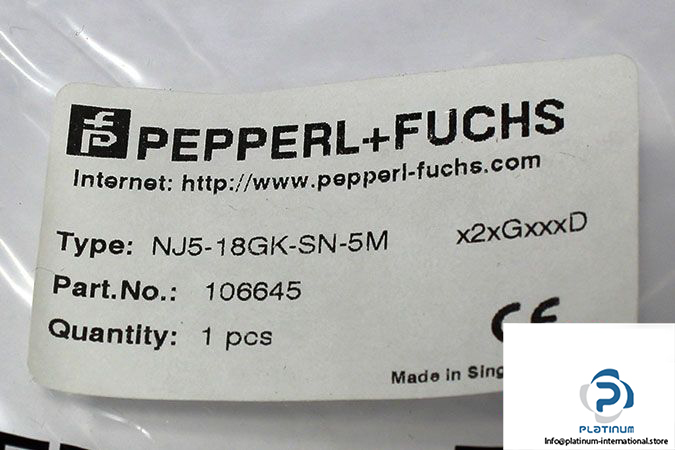

Pepperl+Fuchs NJ5-18GK-SN-5M Inductive Sensor

Manufacturer: Pepperl Fuchs

Type: Inductive Sensor

Model: NJ5-18GK-SN-5M

Part No: 106645



Nominal Voltage: 8.2 VDC

Switching Frequency: 0…500 Hz

Rated Operating Distance: 5 mm

Assured Operating Distance: 0…4.05 mm

Installation: Flush

Switching Function: Normally Closed

Output Type: 2-wire

Connection Type: Cable Silicone, 5 m

Cable Diameter: 6 mm ± 0.2 mm

Ambient Temperature: -40…100 °C

Protection Class: IP68

Dimensions: 40 x 18 mm

Weight: 0.26 kg
