Pepperl+Fuchs NJ8-18GM-N-10M Inductive Sensor
Yeni
Stokta4 ünitelerSevkiyata hazır
Indüktif Sensör Pepperl+Fuchs NJ8-18GM-N-10M 8 mm algılama menziline sahip indüktif yakınlık sensörü, NAMUR NC anahtarlama çıkışı, paslanmaz çelik gövde ve 10 m PVC kablo bağlantısı.
8AutomationInduInductiveIndustrialIP67mmNamurNCNJ8NJ8-18GM-N-10MPepperl+FuchsProximitySensorstainlessSteel
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

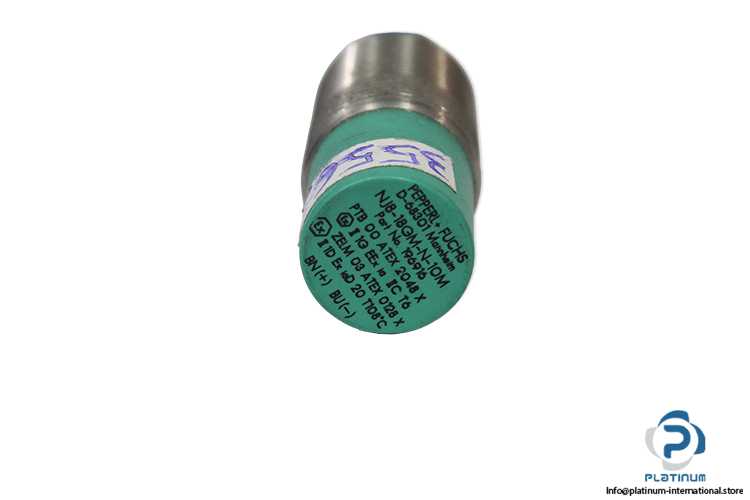

Pepperl+Fuchs NJ8-18GM-N-10M Inductive Sensor
The Pepperl+Fuchs NJ8-18GM-N-10M is an industrial inductive proximity sensor designed for reliable non-contact detection of metal objects in automation systems. Built with a stainless steel housing and NAMUR switching output, it provides stable sensing performance in demanding industrial environments.
Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor
Model: NJ8-18GM-N-10M
Part No: 196916
| Sensing Range | 8 mm |
| Operating Voltage | 5 ... 25 V |
| Current Consumption | Measuring Plate Detected ‰¤ 1 mA / Not Detected ‰¥ 3 mA |
| Switching Output | NAMUR, Normally Closed (NC) |
| Switching Frequency | 0 ... 200 Hz |
| Length, Diameter | 40, 18 mm |

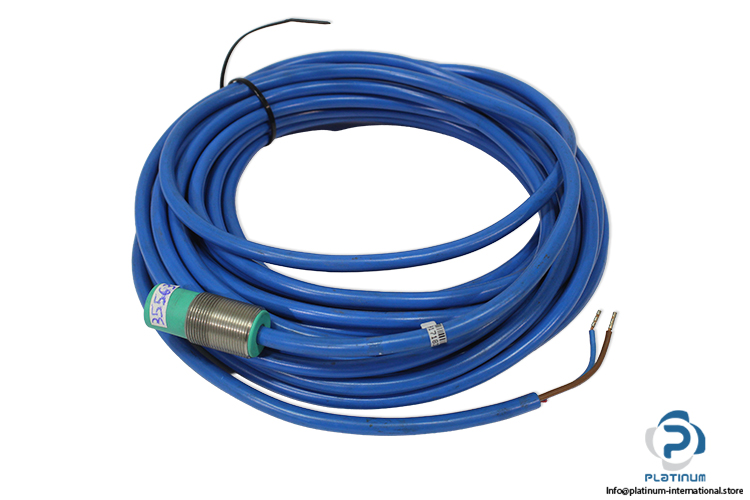

| Electrical Connection | PVC Cable, 2-Wires, 10 m |
| Housing Material | Stainless Steel |
| Protection Class | IP67 |
| Ambient Temperature | -25 / 100 °C |
