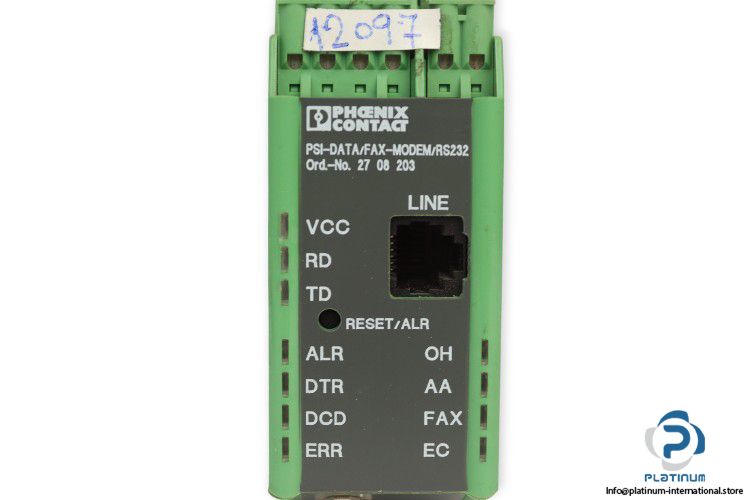

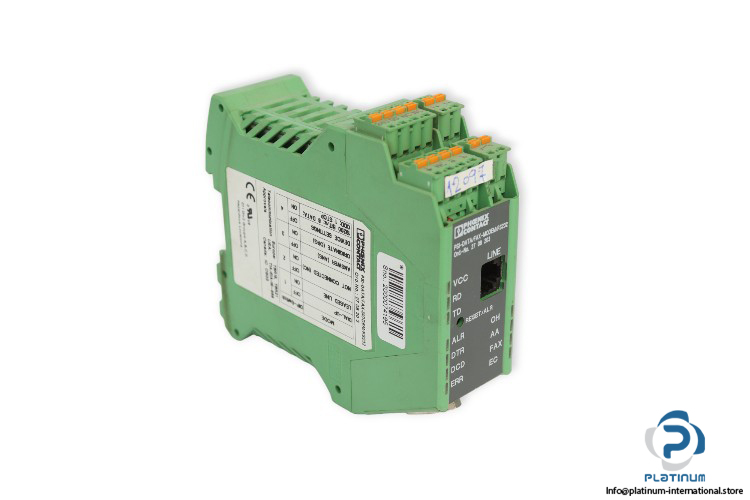

Phoenix Contact PSI-DATA/FAX-MODEM/RS232 Modem

Manufacturer: Phoenix Contact
Type: Modem
Model: PSIDATAFAXMODEMRS232
Order No.: 27 08 203

Supply voltage range: 10 … 60 V DC
Nominal supply voltage: 24 V DC ±5 %
Typical current consumption: < 100 mA (24 V DC)
Number of inputs: 1 digital input
Number of outputs: 1 relay output
Contact type: Normally open contact
Maximum switching voltage: 60 V DC, 42 V AC
Max. switching current: 1 A
Tightening torque: 0.56 … 0.79 Nm
Interface Signal: RS-232

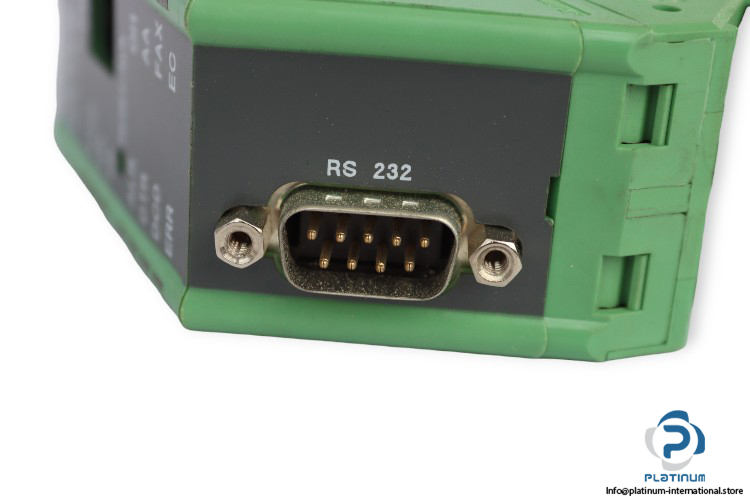

Connection method: D-SUB 9 plug
Transmission length: 15 m
Housing material: PA V0
Mounting type: DIN rail mounting
Operating Temperature: 0 … 55 °C
Degree of Protection: IP20
Dimensions: 35 x 99 x 114.5 mm
