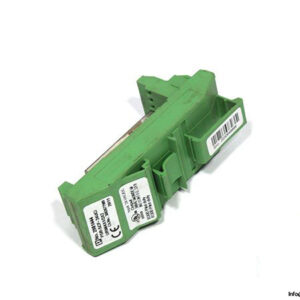

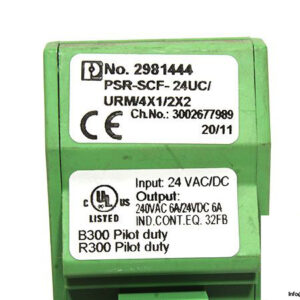

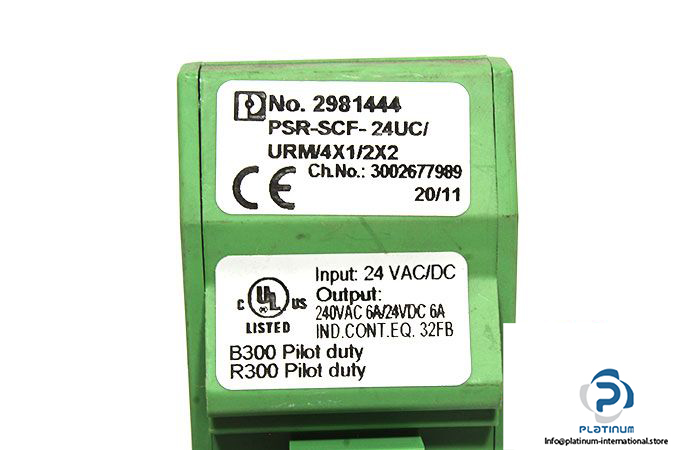

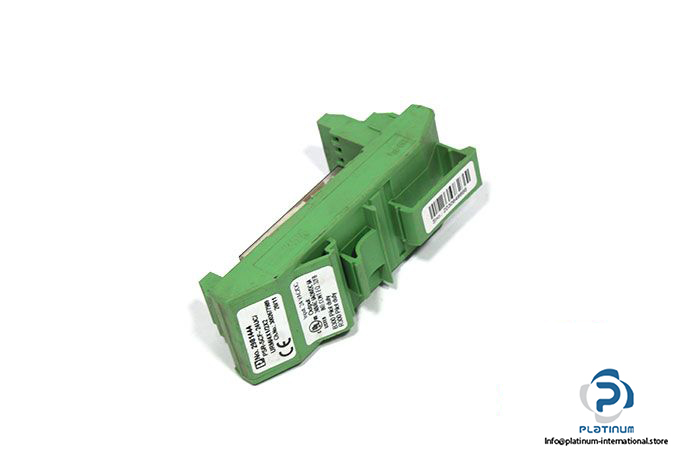

Phoenix Contact PSR-SCF- 24UC/URM/4X1/2X2 Coupling Relay

Manufacturer: PHOENIX CONTACT

Type: Coupling relay

Model: PSR-SCF- 24UC/URM/4X1/2X2

Order No.: 2981444

Rated control circuit supply voltage US: 24 V AC/DC -20 % / +10 %

Rated control supply current IS: typ. 52 mA

Input voltage range: 19.2 V AC/DC … 26.4 V AC/DC

Response Time: Typ. 10 ms

Switching Frequency: 0.5 Hz

Switching Output voltage: 5 V AC/DC … 230 V AC/DC

Inrush current: 10 mA … 6 A

Switching Capacity: min. 50 mW

Operating Temp.: -20 °C … 55°C

Dimensions: LxWxD 111x40x55

Weight: 0.1 kg
