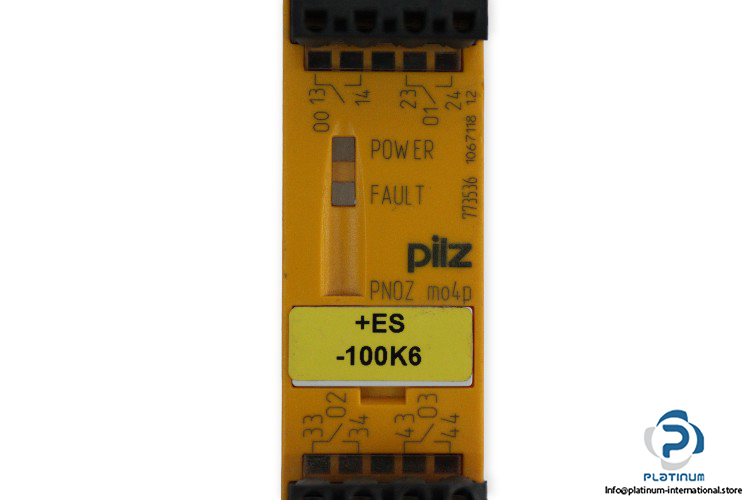

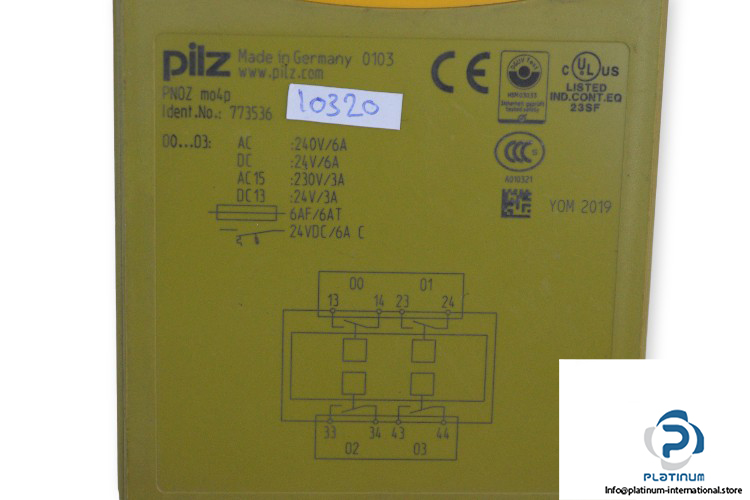

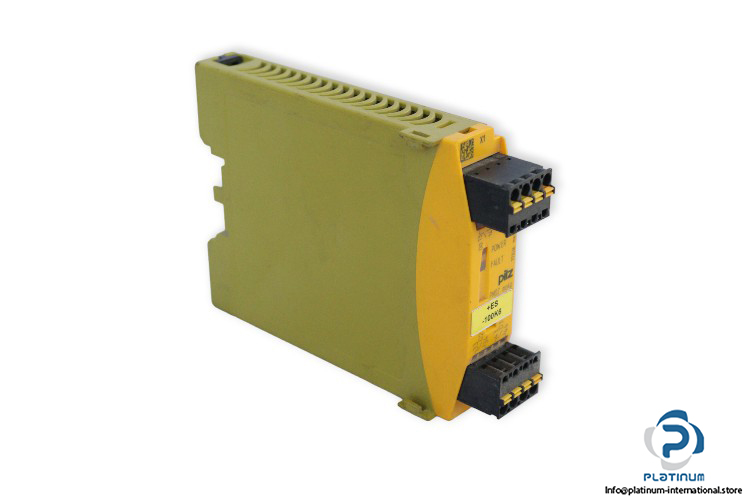

Pilz Pnoz MO4P Expansion Module

Manufacturer: PILZ
Type: Expansion module
Model: PNOZ mo4p
Identity No: 773536

Supply Voltage: 240 V AC/ 24 V DC
Current: 6 A
Power Consumption: 2.5 W
Contact Configuration: 4 Normally Open (NO)
Contact Voltage: 230 V AC/ 24 V DC
Contact Current: 3 A
Max. Power: 690 W (AC) / 72 W (DC)
Switch-off Delay: 50 ms
Switch on Delay: 5 s
Pollution Degree: 2
Degree of protection: IP20 (Housing/Terminal), IP54 (Mounting Area)
Operating Temperature: 0 … 60 °C
Dimension: 94 X 22.5 X 121 mm
