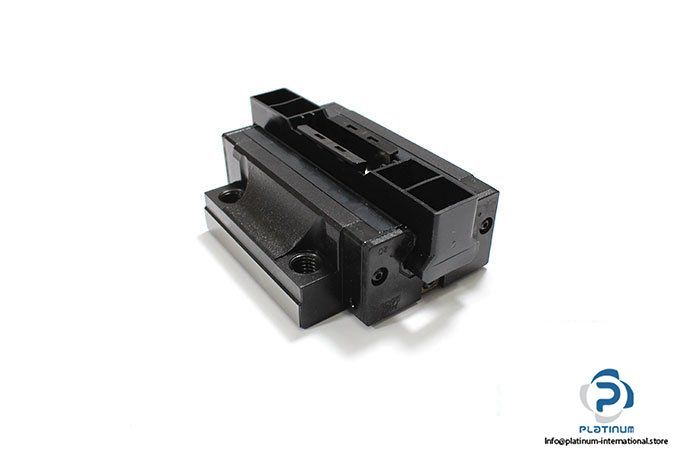

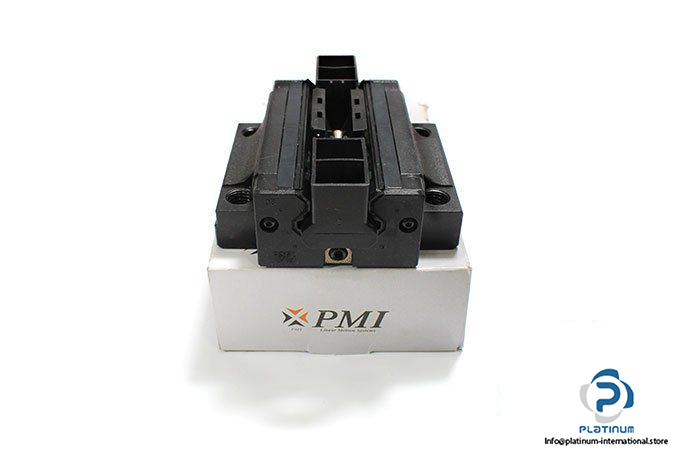

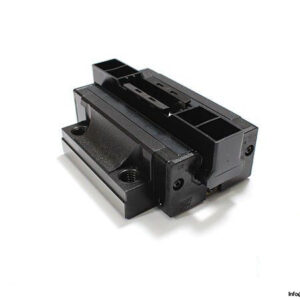

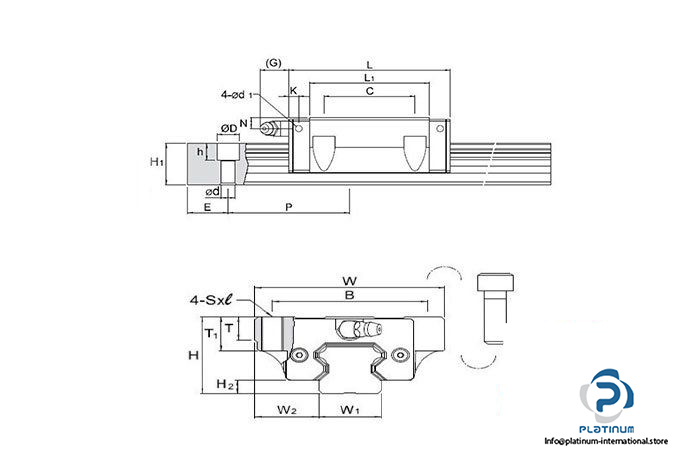

PMI MSA30A Linear Guideway Block

Manufacturer: PMI

Type: LINEAR GUIDEWAY BLOCK

Series: MSA

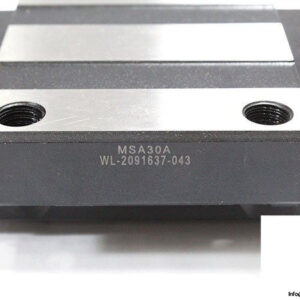

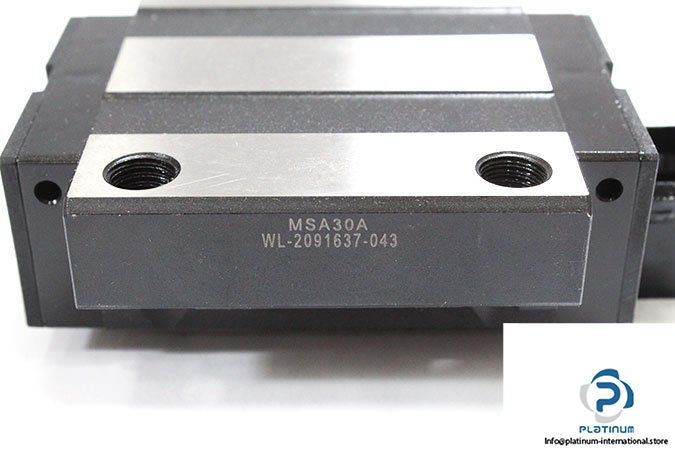

Model: MSA 30A

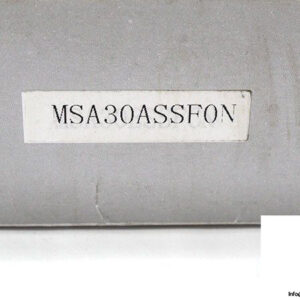

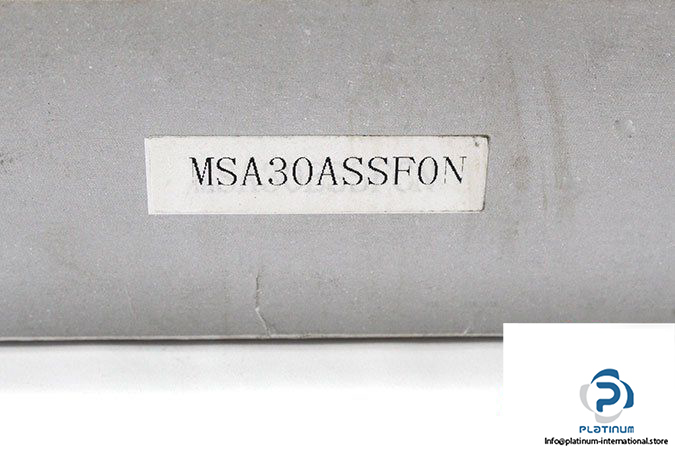

MRN: MSA30ASSF0N

Size: 30

Block Type: Flange

Load Type: Heavy Load

Block Mounting Type: from Top

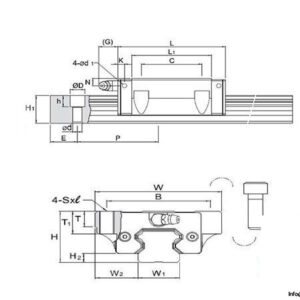

Block Height: 42 mm

Block Width: 90 mm

Block Length: 97 mm

Thread Size: M10

Rail Width: 28 mm

Rail Height: 26 mm

Preload: F0

Accuracy Grade: N

Basic dynamic load rating: 39.2 kN

Basic static load rating: 57.8 kN

Weight: 1.16 kg
