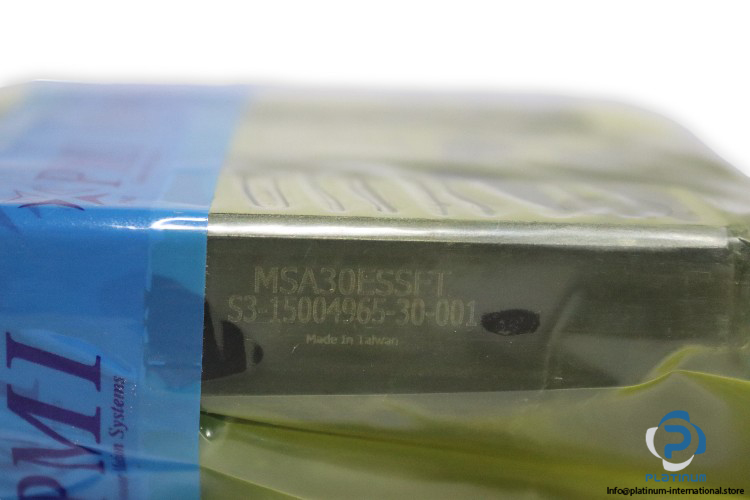

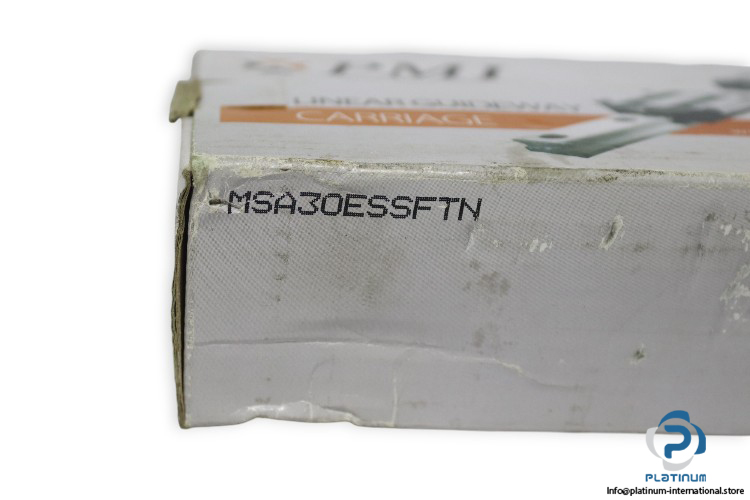

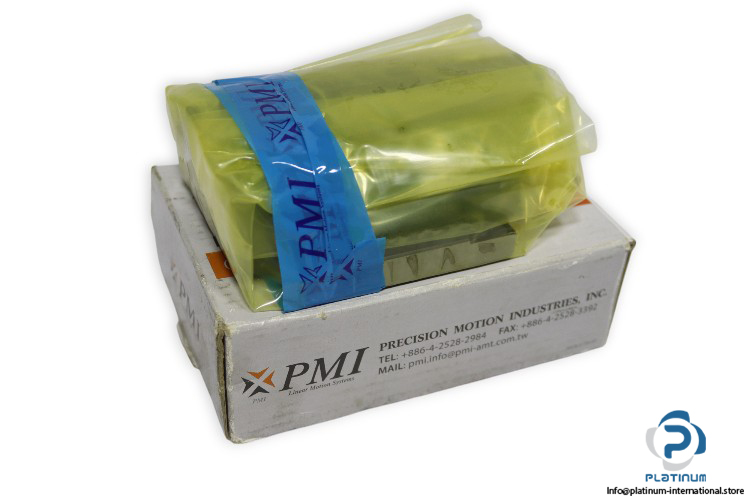

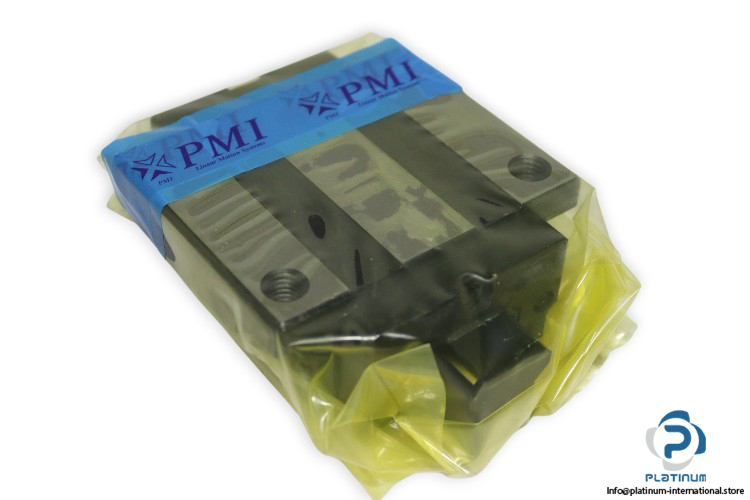

PMI MSA30ESSFTN Linear Guideway Block

Manufacturer: PMI
Type: LINEAR GUIDEWAY BLOCK
Model: MSA30 ESSFTN

Size: 30 mm

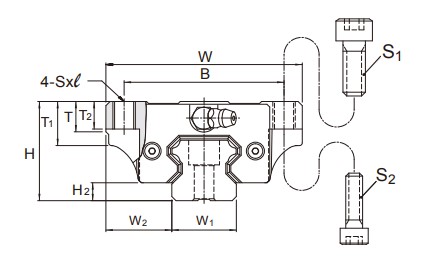

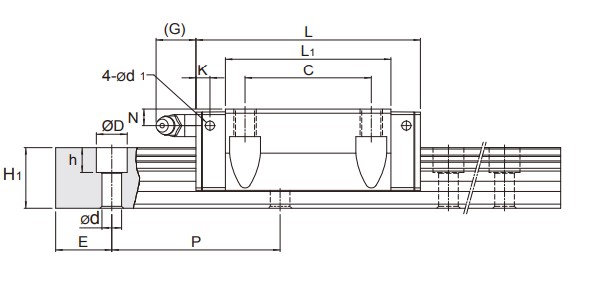

Dimensions:
System Height H: 42 mm
Block Width W: 90 mm
Block Length L: 97 mm
Block Height (H-H2): 34 mm
Series: MSA
Block Type: E , Flange type, mounting either from top or bottom
Load Type: heavy load
Dust protection option of carriage: SS
Accuracy grade: N
Preload: F
Block Mounting Type: Top or Bottom
Rail type: T, (Tapped hole type)
Basic dynamic load rating: 39.2 kN
Basic static load rating: 57.8 kN
Thread Size: S1-M10 , S2-M8
