High-Performance Linear Actuator
Raco K6L4 Linear Actuator with 2 kN force and 17 rpm speed provides reliable motion control with a 100 mm stroke. Paired with Turck Perma-Prox BIM-IKE-RP6X magnetic sensor for precise operation.1002230/400ActuatorActuatorsBIM-IKE-RP6XForceIndustrialK6L4kNLinearmmPerma-ProxRacoSensorStrokeTurckV
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

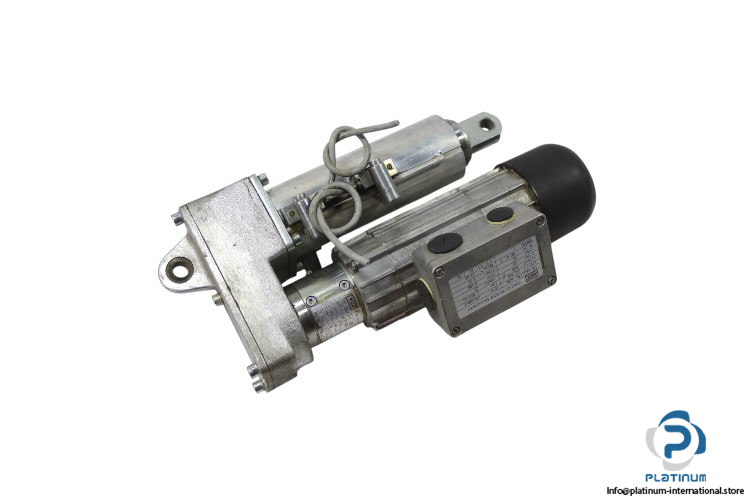

Raco Linear Actuator “ K6L4
The Raco K6L4 Linear Actuator offers high-performance movement with a force of 2 kN, speed of 17 rpm, and a stroke of 100 mm. It is designed for applications requiring reliable motion control in demanding environments.
Manufacturer: Raco
Type: Linear Actuator
Model: K6L4
Part No.: 6091
ID No.: 134-999-6
Turck Perma-Prox Magnetic Sensor

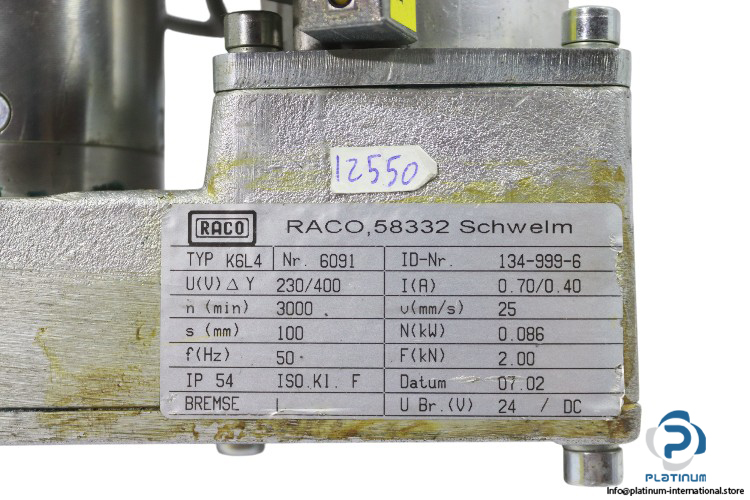

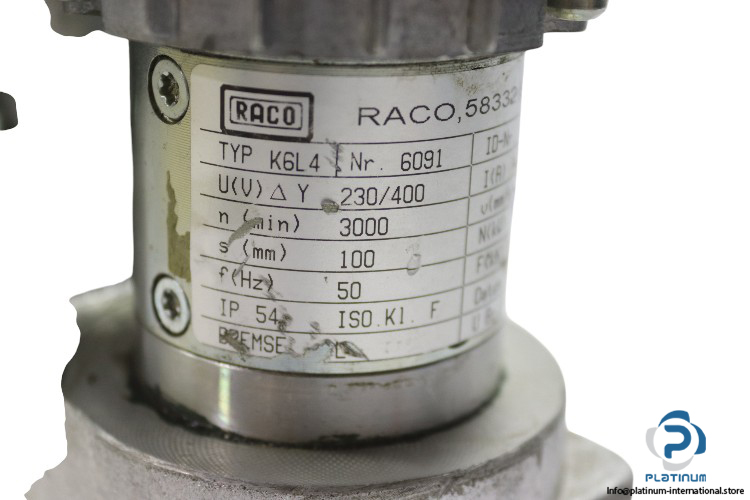

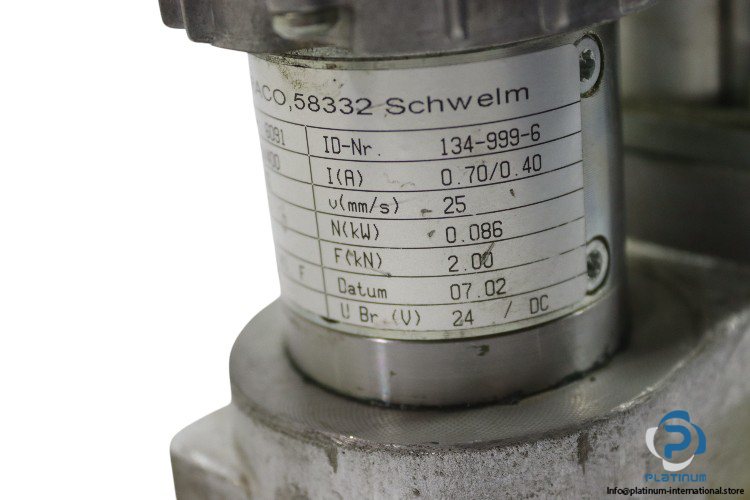

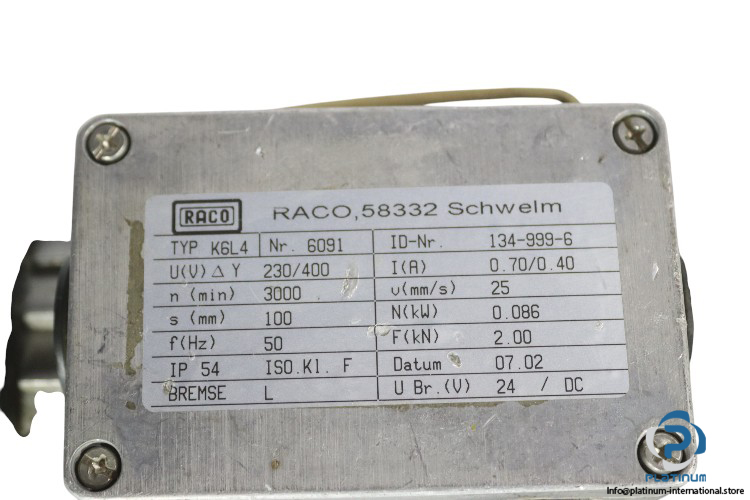

Technical Information:
| Force | 2 kN |
| Speed | 17 rpm |
| Voltage | 230 / 400 V |
| Breakdown Voltage | 24 V DC |
| Stroke | 100 mm |
| Frequency | 50 Hz |
| Power | 0.086 kW |
| Current | 0.70/0.40 A |
| Time | 3000 min |
| Velocity | 25 mm/s |
| IP Rate | 54 |
| Attachment | Turck Perma-Prox BIM-IKE-RP6X Magnetic Sensor |
| Voltage | 10 to 30 V DC |
| Current | 200 mA |
