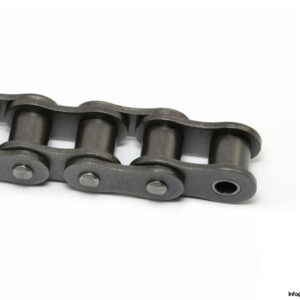

Rexnord 05B-1 Simplex Roller Chain

Manufacturer: REXNORD
Type: Simplex Roller Chain
Model: 05B-1

DIN/ISO 606
Chain no. 05B-1

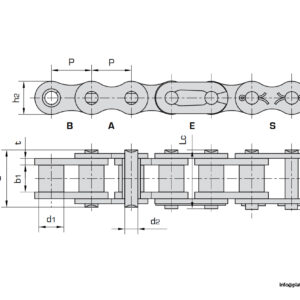

PitchP: 8 mm
Roller diameter d1: 5 mm
Width between inner plates b1: 3 mm
Pin diameter d2 max/L max: 2.31/8.20 mm
Pin length Lc max: 8.9 mm
Plate thickness T: 0.8mm
Ultimate tensile strength Q min: 5.0/1136 kN/lbf
Average tensile strength Q0: 5.9 kN
Weight per meter q: 0.2 kg/m
