Rexnord ES4-RM-7300085M Elastomer Coupling
Yeni
Stokta1 birimSevkiyata hazır
Elastomer Şaft Kaplin Rexnord ES4-RM “7300085M” OMEGA serisi ara kaplin, 62 Nm tork derecelendirmesi, yüksek hizasızlık kabiliyeti, üretan eleman ve 6600 rpm hız kapasitesi.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
Rexnord ES4-RM “ 7300085M Elastomeric Shaft Coupling

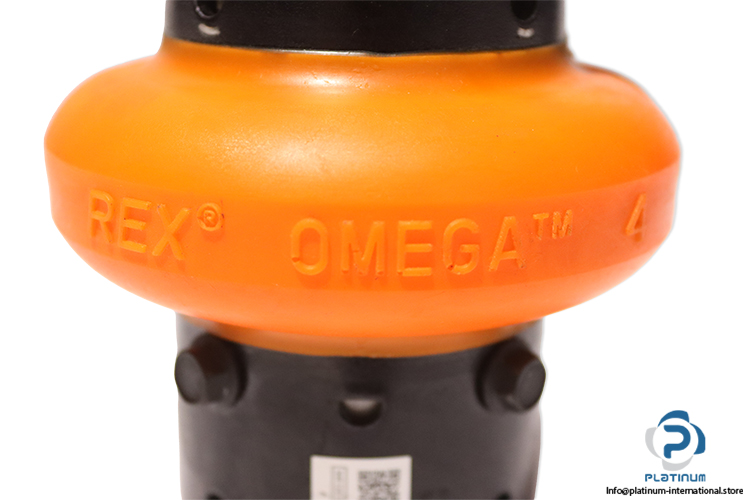

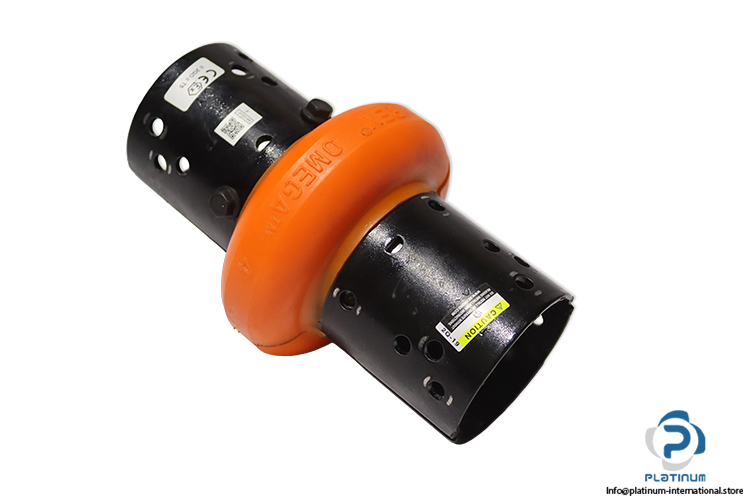

The Rexnord ES4-RM elastomeric shaft coupling from the OMEGA product series is engineered to deliver reliable torque transmission, vibration damping, and high misalignment capability in industrial drive systems.
Manufacturer: Rexnord
Type: Elastomeric Shaft Coupling
Model: ES4-RM “ 7300085M
Part Number: 10287827
Product Series: OMEGA
Recommended for pumps, compressors, gear drives, and industrial motor-driven systems requiring vibration control and misalignment compensation.
| Size | 4 |
| Continuous Torque Rating (in-lb) | 550 in/lbs |
| Continuous Torque Rating (Nm) | 62 Nm |
| Major Diameter of Coupling | 116 mm |
| Maximum Speed Rating | 6600 rpm |
| Coupling Style | Spacer |
| Cap Screws | Metric Capscrews |
| Element Style | High Misalignments |
| Material | Urethane (Orange) |

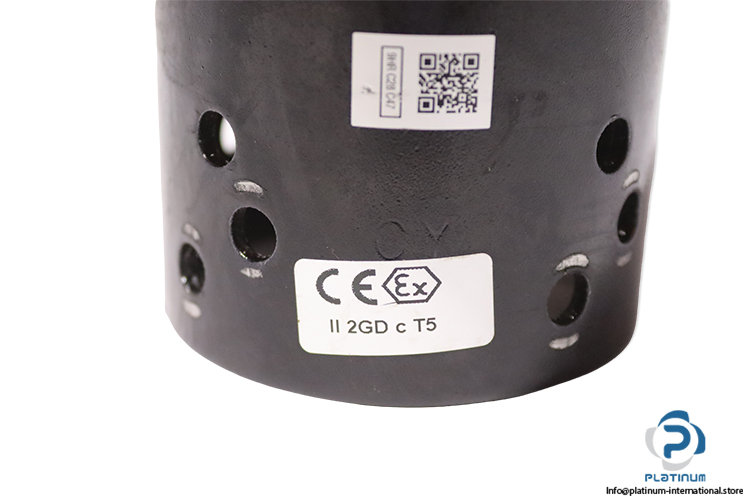

| Certification | CE EX II 2GD c T5 |
| Height | 8.00 inch (203.2 mm) |
| Length | 4.00 inch (101.6 mm) |
