Rexroth 0821406360 Mini Slide
Kullanılmış
Stokta5 ünitelerSevkiyata hazır
Mini Slide
The REXROTH MSC-016-0080 SH mini slide offers double-acting precision motion with 80 mm stroke, 16 mm cylinder diameter, and hydraulic cushioning for smooth, accurate linear movement.1680ActingActuatorAluminumCushionCylinderDoubleHydraulicLinearMinimmMSCMSC-016-0080PneumaticRexrothSeriesSHSlideStroke
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

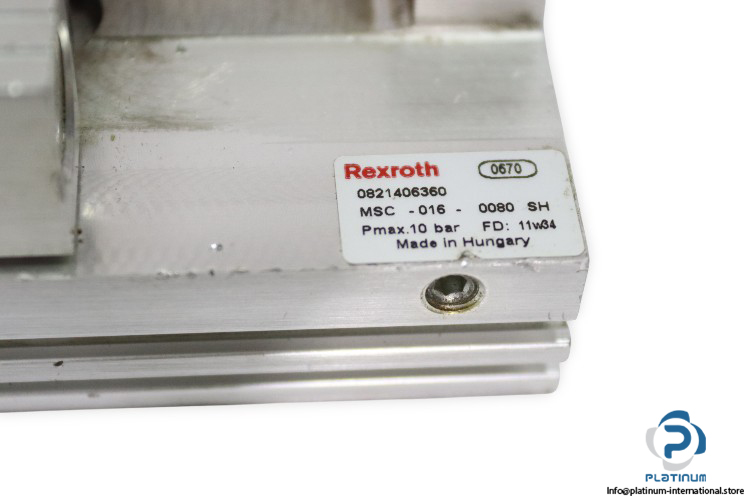

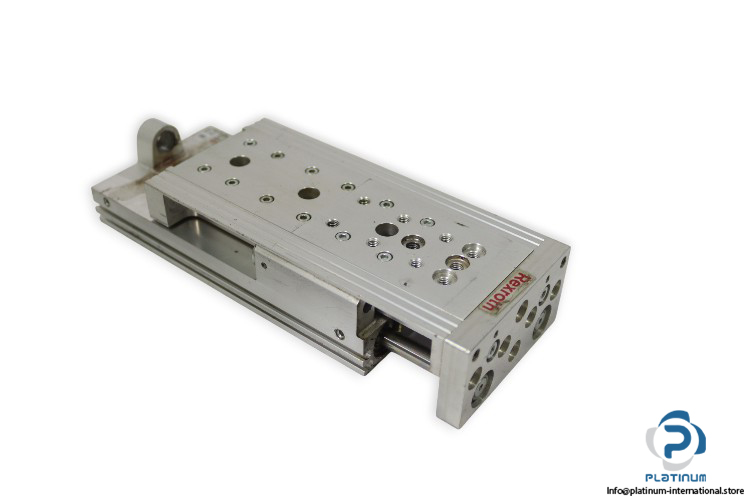

REXROTH MSC-016-0080 SH Mini Slide
The REXROTH MSC-016-0080 SH Mini Slide is a compact and precise linear actuator designed for accurate positioning and reliable performance in automated systems. It features a double-acting operation, hydraulic cushioning, and maintenance-free lubrication for long service life.
Manufacturer: REXROTH
Type: Mini Slide
Model: MSC-016-0080 SH
Material Number: 0821406360
Series: MSC
| Operating Mode | Double acting |
| Operating Pressure | 1 to 10 bar |
| Temperature Range | 0 to 60 degree Celsius |
| Cushioning | Hydraulic |
| Theoretical Useful Force (6 bar) | 241 N |
| Medium | Compressed air, lubricated or oil free |
| Lubrication | Maintenance free |
| Material Housing | Aluminum anodized |
| Material Slide | Aluminum anodized |
| Cylinder Diameter | 16 mm |
| Stroke | 80 mm |
| Port Size | 5 mm |
