Rexroth 5230070050 ISO Cylinder
Yeni
Stokta1 birimSevkiyata hazır
ISO Cylinder
The REXROTH 5230070050 ISO Cylinder features a **32 mm bore diameter**, **25 mm stroke length**, and **10 bar maximum pressure**. With a square shape and male piston rod end, this cylinder is designed for reliable performance in compressed air systems.1/81025325230070050AirbarboreCompressedconnectionCylinderdiameterDimensionsDoubleEndframeGISOLengthmalemaximummmOneOperationPistonPneumaticPressureRexrothRODShapeSiSquareStroke
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

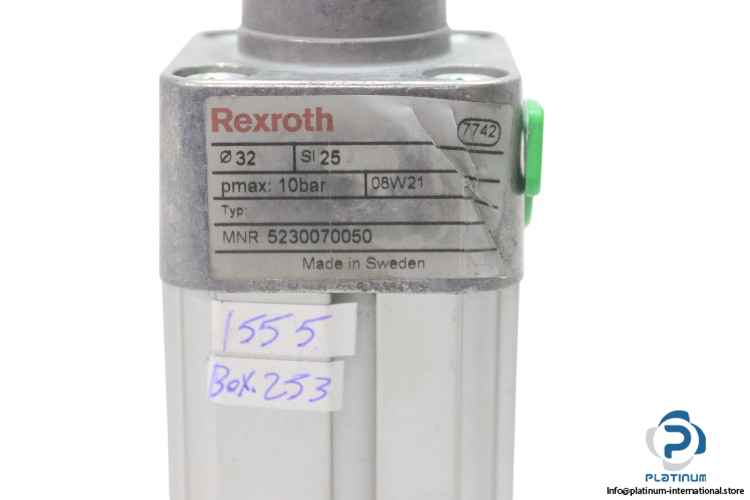

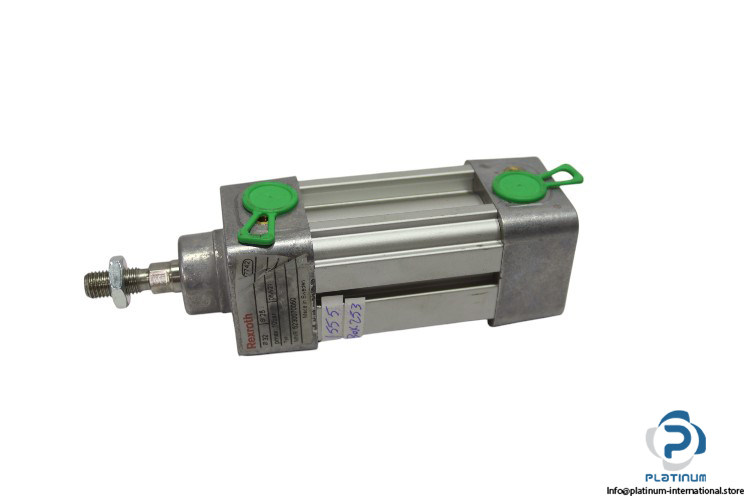

REXROTH 5230070050 ISO Cylinder
The REXROTH 5230070050 ISO Cylinder is a high-quality pneumatic cylinder designed for efficient compressed air operations. With a bore diameter of 32 mm and a stroke length of 25 mm, this cylinder is built for reliable performance under pressure, with a maximum pressure rating of 10 bar.
Manufacturer: REXROTH
Type: ISO Cylinder
Model: 5230070050
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke Length | 25 mm |
| Bore x Stroke | 32 x 25 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 48 x 126 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
