Rexroth 5230070160 ISO Cylinder
Yeni
Stokta1 birimSevkiyata hazır
ISO Cylinder
The REXROTH 5230070160 ISO Cylinder is a durable pneumatic cylinder with a **32 mm bore diameter**, **80 mm stroke length**, and **10 bar max pressure**. Ideal for compressed air systems, featuring a **square shape** and **male piston rod end**.1/8101232523007016080AirbarboreCompressedconnectionCylinderdiameterDimensionsDoubleEndframeGISOLengthmaleMaxmmPistonPneumaticPressureRexrothRODsquStroke
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

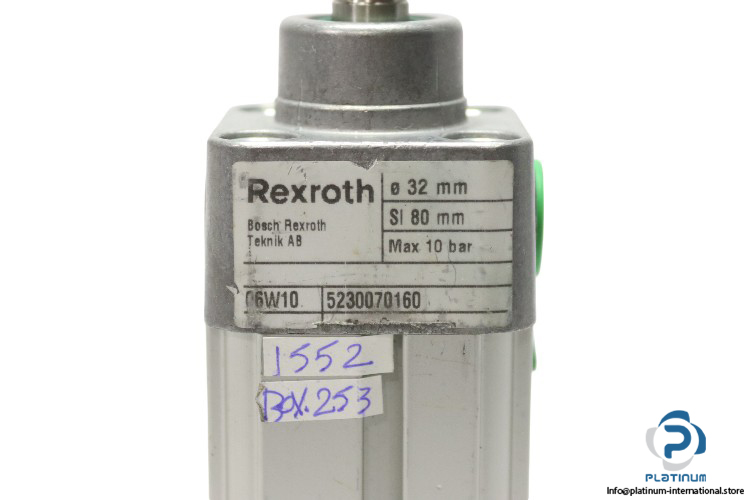

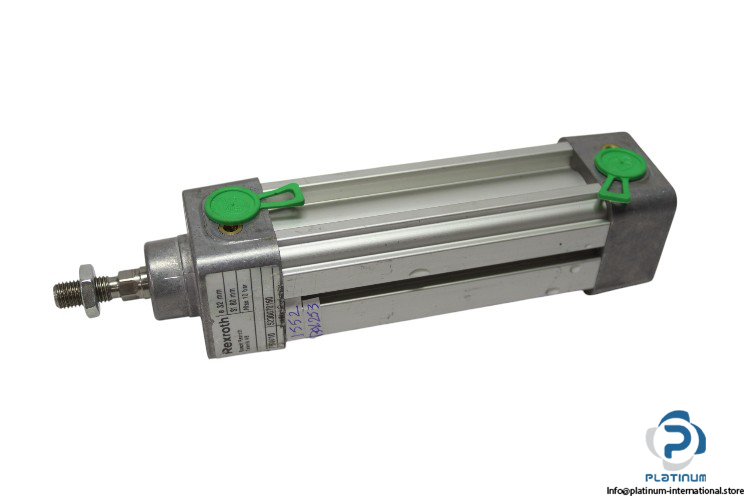

REXROTH 5230070160 ISO Cylinder
The REXROTH 5230070160 ISO Cylinder is a high-performance pneumatic cylinder designed for precise operation in compressed air systems. With a compact design and robust construction, it is ideal for a wide range of industrial applications.
Manufacturer: REXROTH
Type: ISO Cylinder
Model: 5230070160
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke Length | 80 mm |
| Bore x Stroke | 32 x 80 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 49 x 177 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
