Rexroth Mhrsm 12 B20/EG12C4M Stabilizing Module
Stabilizasyon Modülü ve Yönlendirme Valfi Rexroth MHRSM 12 B20/EG12C4M Stabilizasyon Modülü ve 4WE 6 X62A62/EG12C4 Yönlendirme Valfi, hassas akış kontrolü, yüksek basınç ve verimli hidrolik sistem performansı için güvenilirlik sunar.

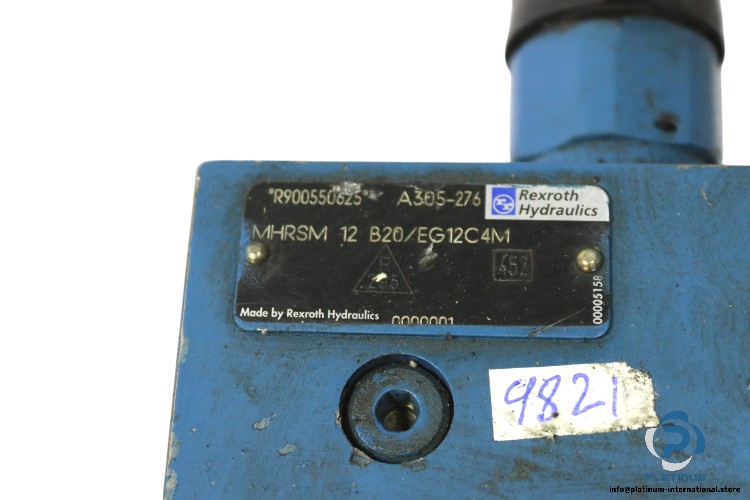

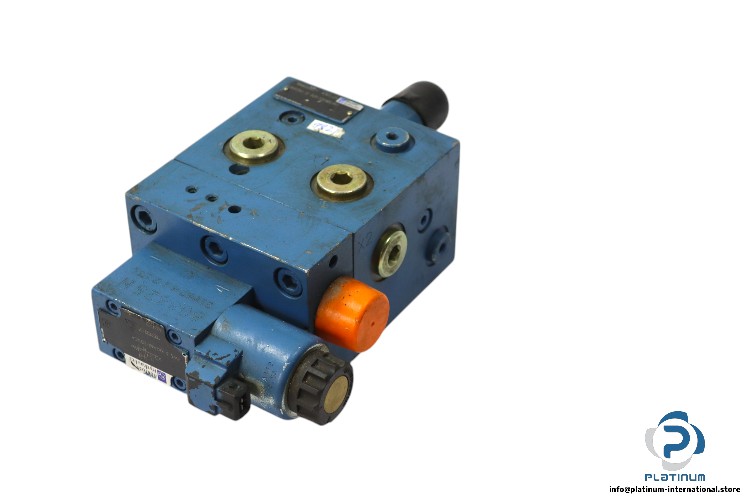

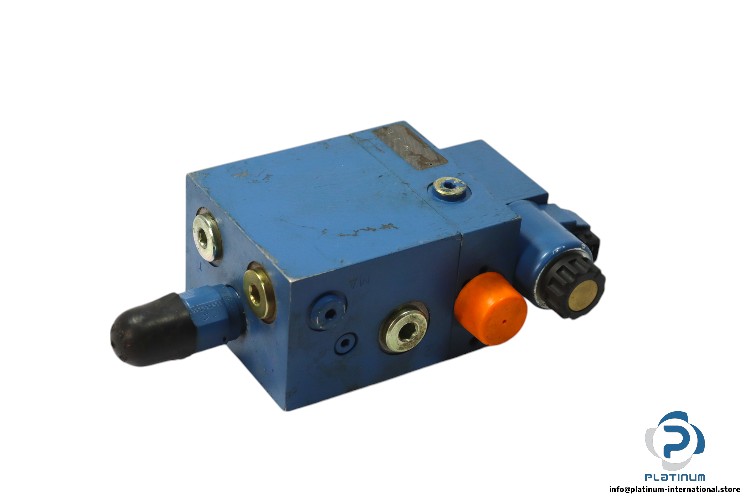

Rexroth MHRSM 12 B20/EG12C4M Stabilizing Module
The Rexroth MHRSM 12 B20/EG12C4M Stabilizing Module is designed for high-pressure hydraulic applications, providing precise stabilization and efficient fluid control. It is engineered for durability and reliable operation under demanding conditions.
Manufacturer: Rexroth
Type: STABILIZING MODULE
Model: MHRSM 12 B20/EG12C4M
MNR: R900550625
Operating Pressure:

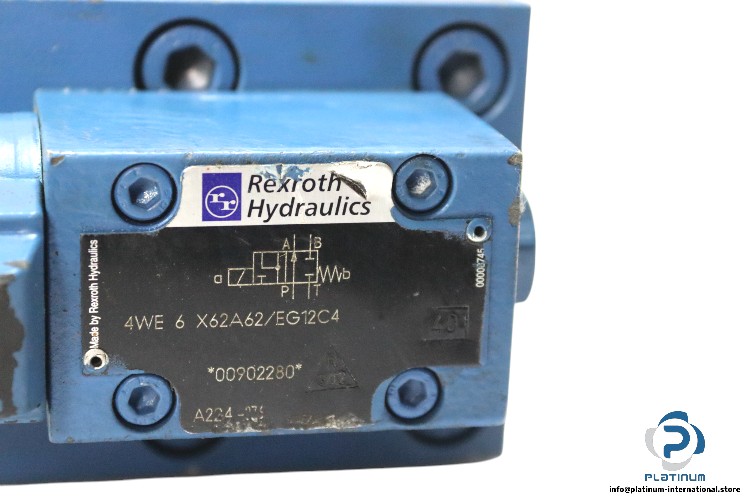

The Rexroth 4WE 6 X62A62/EG12C4 Directional Valve is designed for precise hydraulic control, ensuring efficient operation in high-pressure systems. This valve is suitable for industrial and mobile applications where reliable performance is required.
Technical Information:
Both components provide high-performance hydraulic control, ensuring stability and efficiency in demanding industrial and mobile applications.
| Nominal Size | 12 |
| Block Design | B |
| Component Series | 20 |
| Seal Material | M, NBR seals |
| Supply Voltage | 12 V DC |
| Ports A, B | 420 bar |
| Port X2 | 350 bar |
| Port T | 30 bar |
| Max. Nominal Flow | 150 L/min |
| Fluid Temperature Range | -20 to +80 °C |
| Fluid | Mineral oil |
| Attachment | Rexroth 4WE 6 X62A62/EG12C4 Directional Valve |
| Size | 6 |
| Maximum Operating Pressure | 350 bar |
| Maximum Flow | 80 L/min |
| Number of Ports | 4 |
| Voltage | 12 V |
| Ambient Temperature Range | -30 to +50 °C |
| Hydraulic Fluid Temperature Range | -30 to +80 °C |
