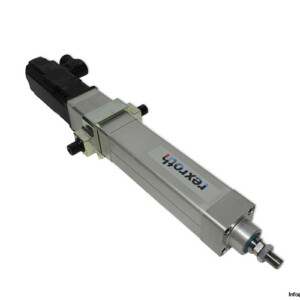

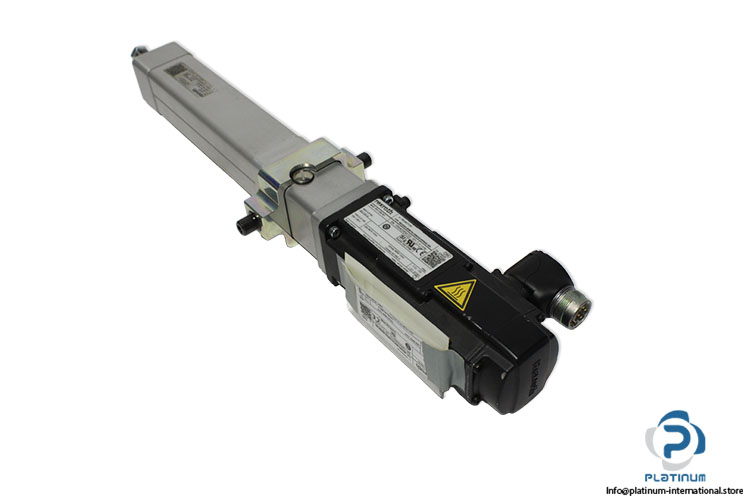

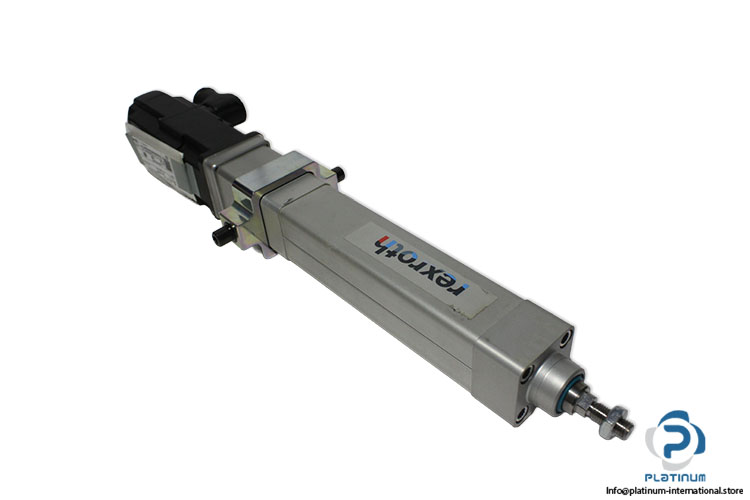

Rexroth MS2N03-B0BYN-CMSH0-NNNNE-NN Servomotor With Linear Actuator

Stokta5 ünitelerSevkiyata hazır

Bosch Rexroth Servomotor With Linear Actuator High precision Bosch Rexroth MS2N03 servo motor combined with EMC-032 electromechanical cylinder, designed for advanced industrial motion control and linear positioning applications. 600 VAC Servo Motor 3.75 Nm Maximum Torque 9000 rpm Maximum Speed 20-Bit Multiturn Absolute Encoder Low Rotor Inertia Design Integrated Rexroth Electromechanical Cylinder 100 mm Maximum Stroke Stainless Steel Construction, IP65 Cylinder

Üretici
REXROTH
SKU
1096899
Kategori
Servo Motors
Koşul
Yeni
Paylaş
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

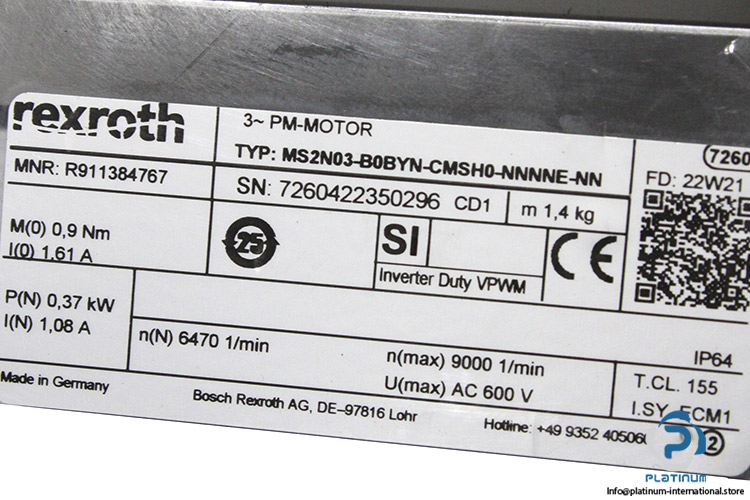

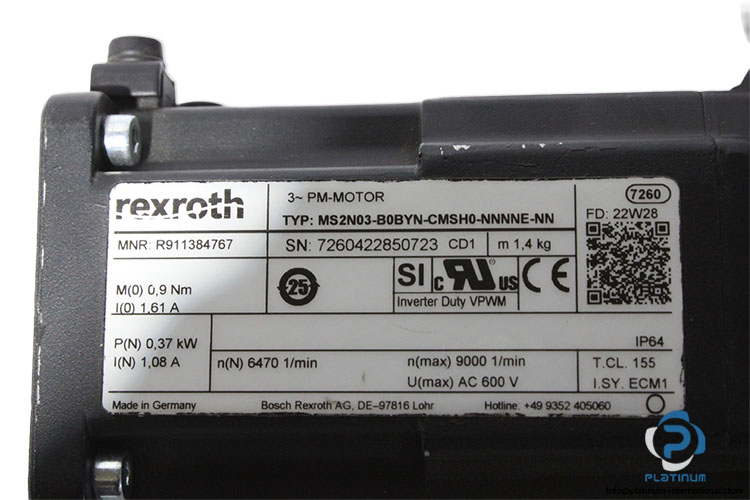

MNRR911384767
SN7260422350296
FD22W21
Rated voltage600 VAC
Maximum torque [Nm]3.75
Standstill torque (int./ext. cooling) 100k [Nm]0.9
Standstill Current1.61 A
Rated power0.37 Kw
Rated Current1.08 A
Rated speed [rpm]6470
Maximum speed [rpm]9000.0
Flange size [mm]58
Cooling typeSelf-cooling
Motor typewithout holding brake
ShaftSmooth, without shaft seal
Shaft length [mm]20
Shaft diameter [mm]9
Spigot [mm]40
Bolt circle [mm]63
Mounting hole (shaft)M4
International protection codeIP64
Rotor inertiaLow inertia
Rotor inertia (without brake) value [kg/m²]0.000023
Rotor inertia (with brake) value [kg/m²]0
Encoder resolutionADVANCED - digital 20 bit, ACURO@link, SIL2, PL d
Encoder designMultiturn ? 4,096 revolutions absolute

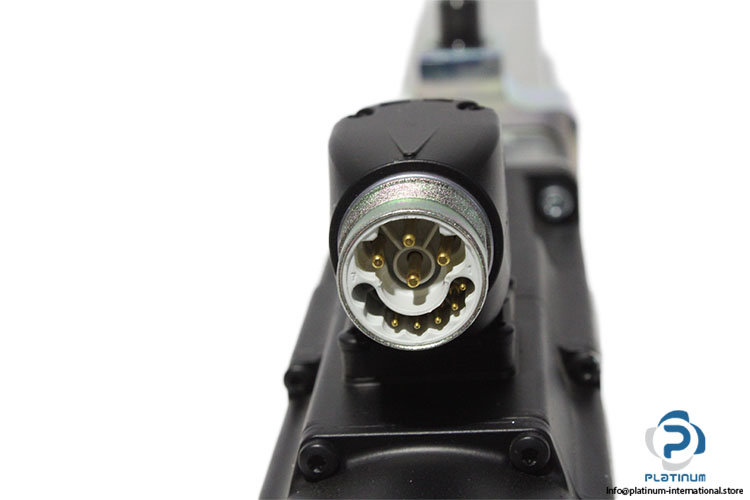

electrical connectionSingle cable connection M23, rotatable, right-angled connector
Standstill torque (int. cooling) 60k [Nm]0.73

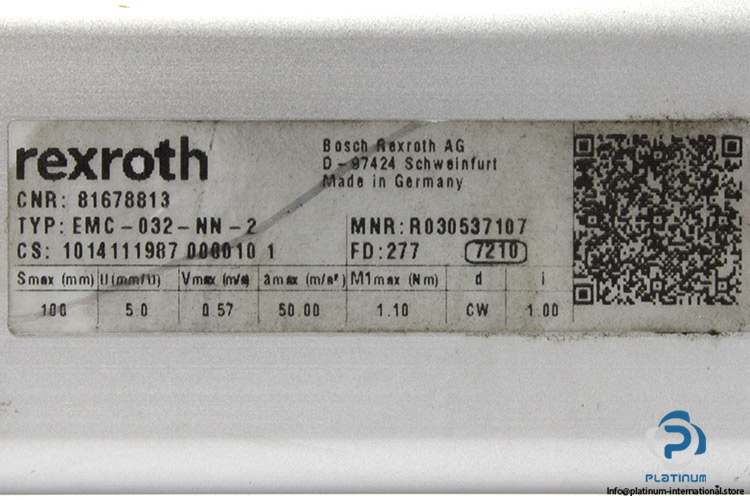

Attached withREXROTH EMC-032-NN-2 ELECTROMECHANICAL CYLINDER
MNR, ELECTROMECHANICAL CYLINDERR030537107
FD, ELECTROMECHANICAL CYLINDER277
CS, ELECTROMECHANICAL CYLINDER1014111987 000010 1
CNR, ELECTROMECHANICAL CYLINDER81678813
Measurement range (kN)1.3
Measurement inaccuracy (kN)± 0.007
Material, ELECTROMECHANICAL CYLINDERStainless steel
Protection class , ELECTROMECHANICAL CYLINDERIP65
Hardness (load range) , ELECTROMECHANICAL CYLINDER38 HRC
Operating temperature, ELECTROMECHANICAL CYLINDER-20 ... +60 °C
Gear Ratio (i)1.00
Direction of Rotation (d)CW (Clockwise)
Maximum Speed (V msx)0.57 in/s
Lead (U)5.0 mm/U (5.0 mm per revolution)
Maximum Acceleration A max (m/s)50.00
Maximum Stroke S max (mm)100
Maximum Torque M1 max (Nm)1.1
Stock keyJO-004
ConditionNew
SKU1096899
Weight3,6
