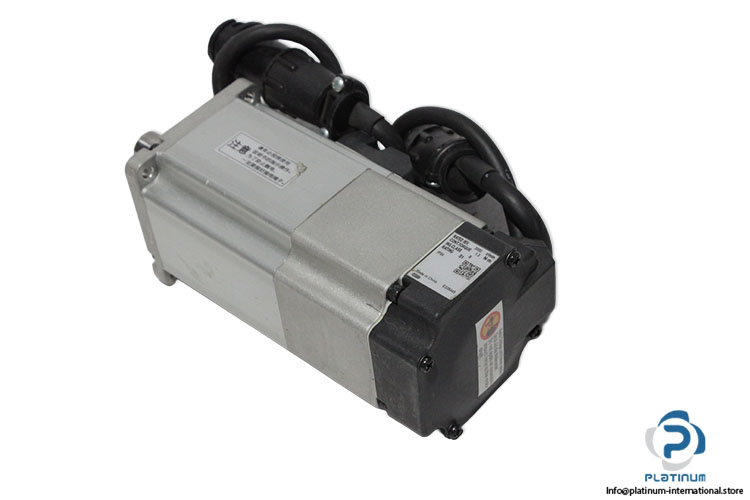

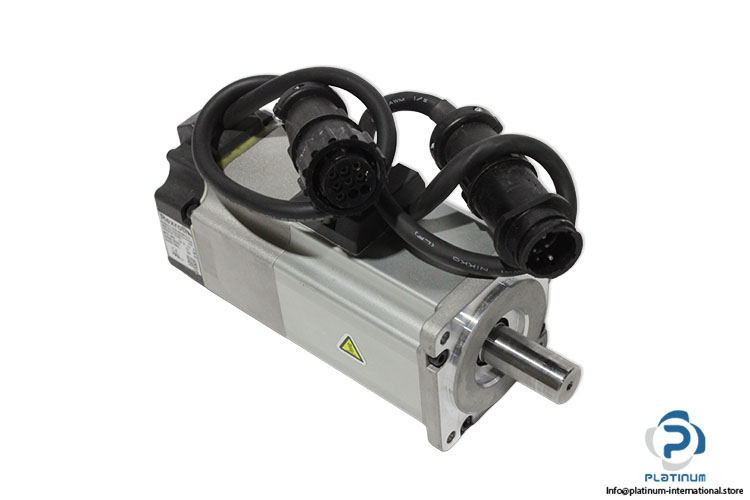

Rexroth MSM031C-0300-NN-M0-CH1 Servomotor
Yeni
Stokta3 ünitelerSevkiyata hazır
Synchronous Servomotor Bosch Rexroth MSM031C-0300-NN-M0-CH1 synchronous servomotor with 0.4 kW power, 3000 RPM rated speed, 1.3 Nm standstill torque, multi-turn absolute optical encoder, IP54 protection, natural convection cooling and integrated holding brake for precision industrial motion control applications.
ACAutomationBoschControlDriveEncoderHighIndustrialMotionmotorMultiOpticalPrecisionRexrothServoServomotorSpeedSynchronousTurn
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

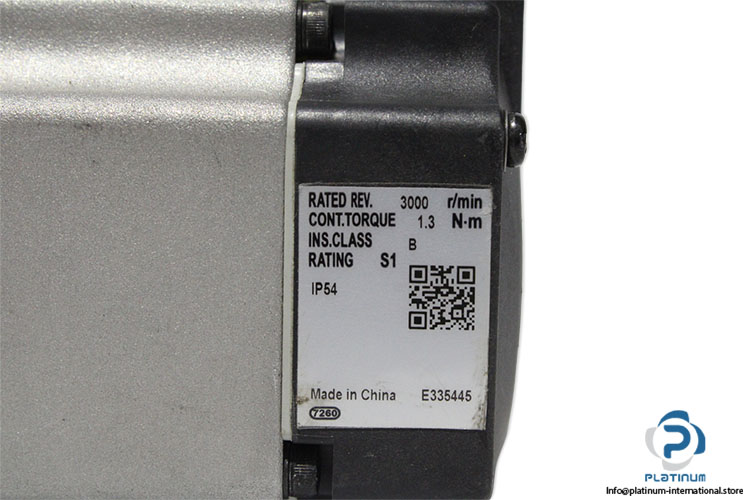

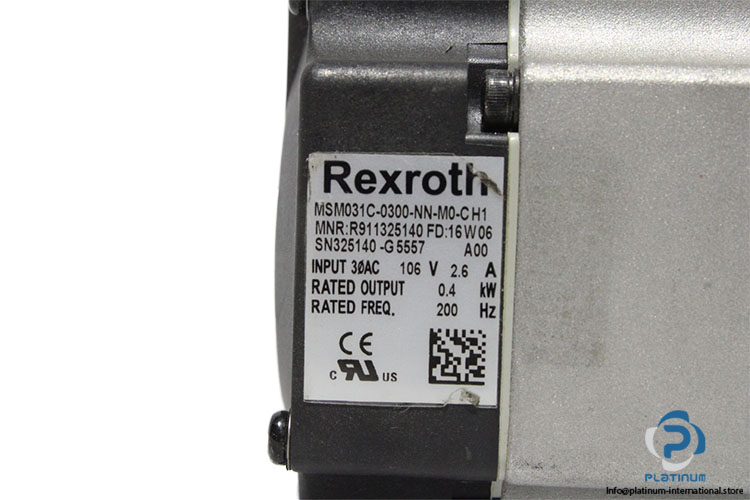

| MNR | R911325140 |
| FD | 16W06 |
| SN | 325140-G 5557 A00 |
| Input voltage | 106 vac |
| Rated current | 2.6 A |
| Rated power | 0.4 Kw |
| Rated frequency | 200 hz |
| Rated Speed | 3000 rpm |
| Continuous torque at standstill | 1.3 Nm |
| Thermal class | B |
| Duty | S1 |
| Standard | E335445 |
| Ambient temp | 0 to 40 °c |
| Cooling Mode | Natural convection |
| holding brake | electrical relese 1.27 Nm |
| Shaft | Plain shaft without shaft sealing ring |
| Shaft diameter [mm] | 14 |
| International protection code | IP54 |
| Encoder design | Optical encoder, Multi-turn absolute |

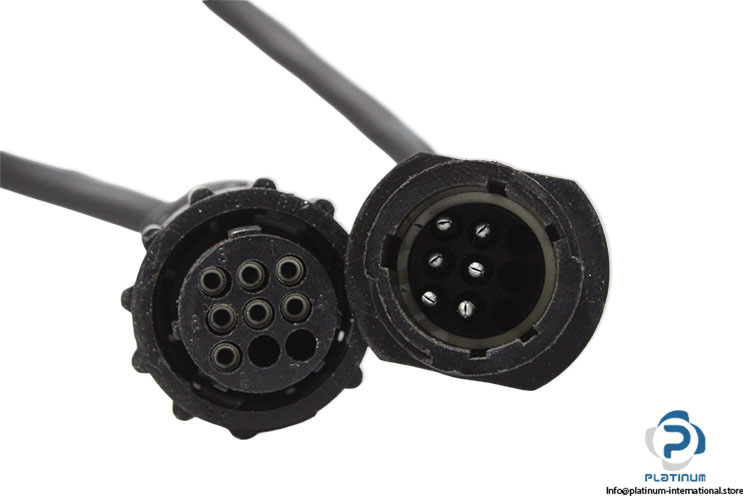

| Connection | circular connector,cable tail |
| Stock key | jo-004 |
| Condition | New |
| SKU | 1096903 |
| Weight | 1,7 |
