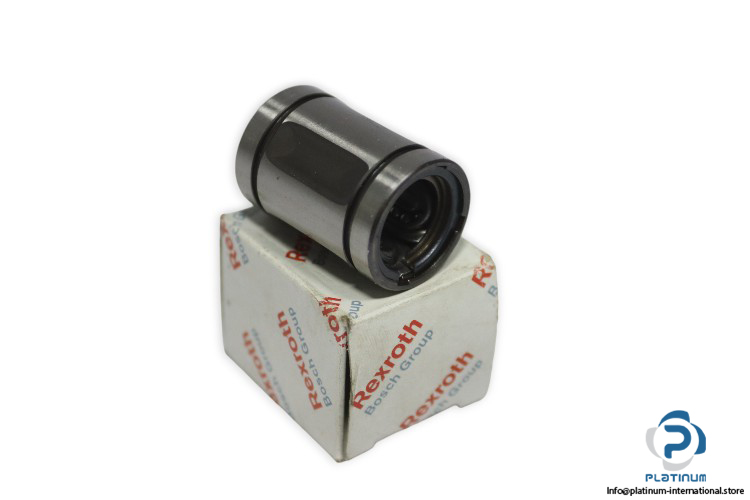

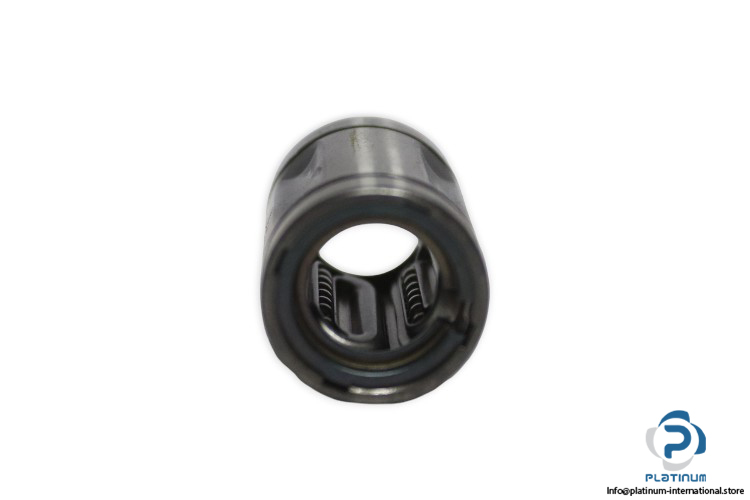

Rexroth R060001200 Standard Linear Bushing

Manufacturer: REXROTH
Type: STANDARD LINEAR BUSHING KBM

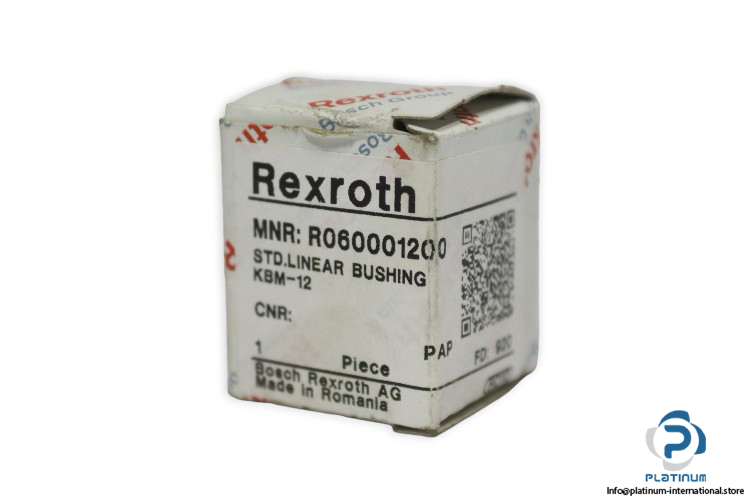

MNR: R0600 012 00

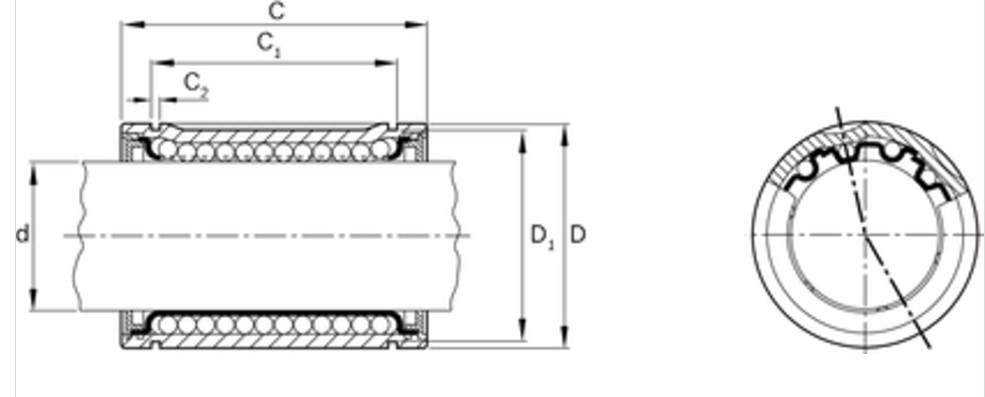

Dimensions:
Shaft diameter d0: 12 mm
Dimensions:
Outer diameter D: 22 mm
Length of linear bushing C: 32 mm
C2: 1.3 mm
D1: 20.5 mm
C1: 22.6 mm
Format of linear bushings: Closed
Series: Standard (metal)
Maximum Acceleration Travel amax:  100 m/s2
Max. Permissible Speed v_max: 2.5 m/s
Dynamic Load rating C _max: 480 N
Seals: No wiper seal
Permissible Ambient Temperature: -10 … +80 °C
