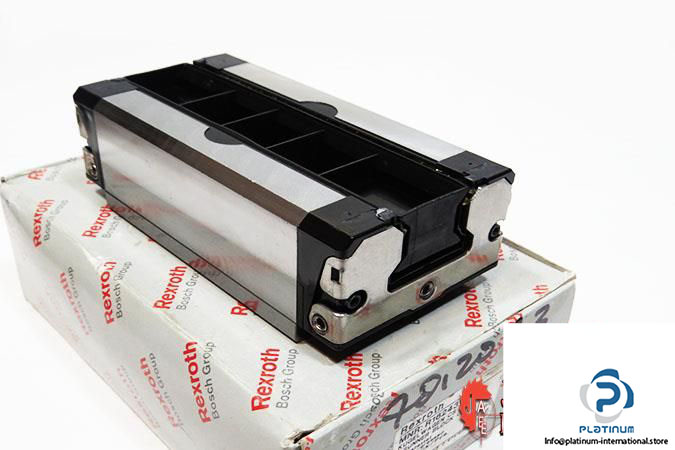

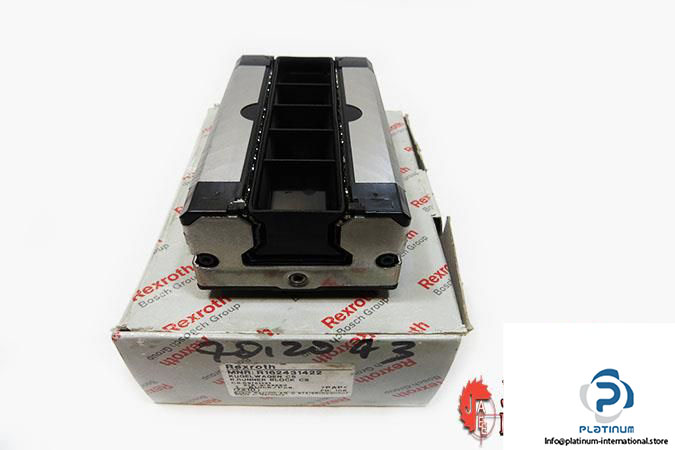

Rexroth R162431422 Ball Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block SLH

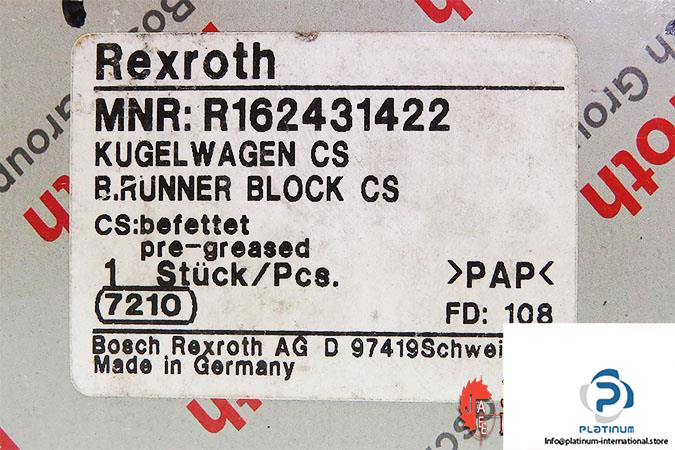

MNR: R1624 314 22

Size: 35 mm
Format: SLH – Slimline, long, high
Material (profiled rail systems): Carbon steel
Seals: with ball chain
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 66700  N
Static Load Capacity C₀ : 116000
Dynamic Torsional Moment Load Capacity M_t:  1440 Nm
Mt0: 2500 Nm
Dynamic longitudinal moment load capacity ML: 1290 Nm
Static longitudinal moment load capacity ML0: 2240 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload
Dimensions
Width (A): 70 mm
Length (B): 139 mm
Height of system(H): 55 mm
Height of block (H₁): 47.40 mm
E1: 50 mm
E2: 72 mm
Admissible Operating Temperature: -10 °C … +80 °C
