Bearings Housing Units Plummer Block Housing Units

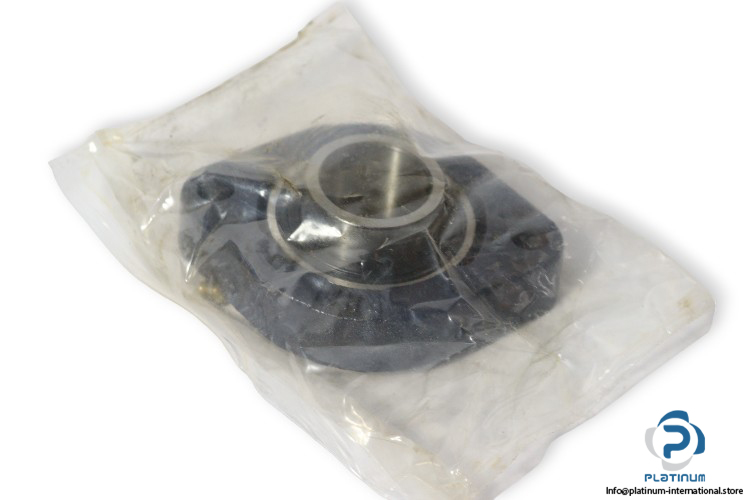

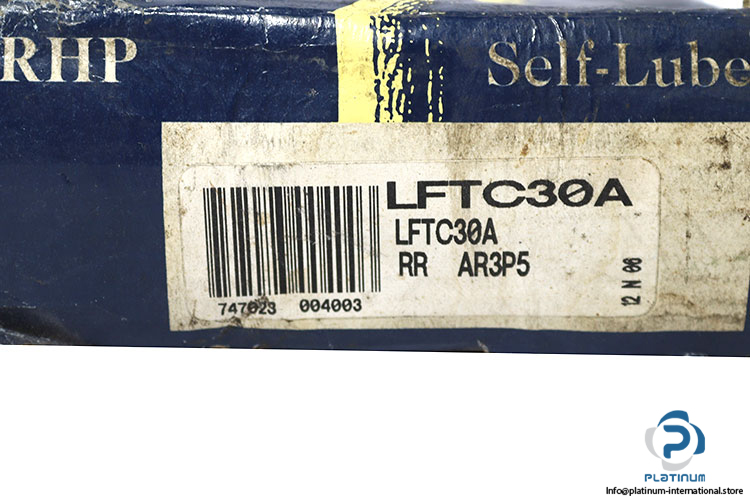

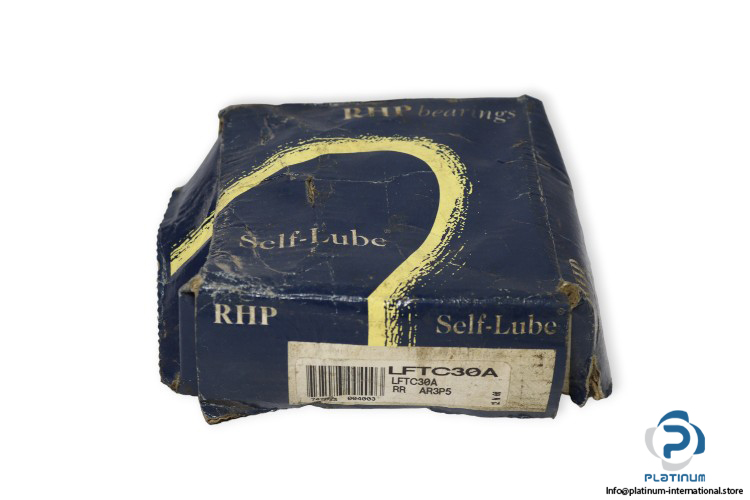

RHP LFTC30A Flanged Housing Unit

Name: RHP LFTC30A FLANGED HOUSING UNIT
SKU: 1030828
Availability: LimitedAvailability

rhp-LFTC30A-flanged-housing-unit-(new)-(carton)

rhp-LFTC30A-flanged-housing-unit-(new)-(carton)-1

rhp-LFTC30A-flanged-housing-unit-(new)-(carton)-2

rhp-LFTC30A-flanged-housing-unit-(new)-(carton)-3

rhp-LFTC30A-flanged-housing-unit-(new)-(carton)-4

Yeni

Stokta1 birimSevkiyata hazır

Üretici: RHP Tip: Kendinden yağlamalı dökme demir flanş rulman üniteleri Model: LFTC30A Gövde: LFTC4

Üretici

RHP?

SKU

1030828

Kategori

Plummer Block Housing Units

Koşul

Yeni

30 bearing bearings Cast Collar Eccentric flanged Housing Iron Lftc locking mm RHP Two-Bolt Units

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

Manufacturer: RHP
Type: Self-Lube cast iron flange bearing units
Model: LFTC30A

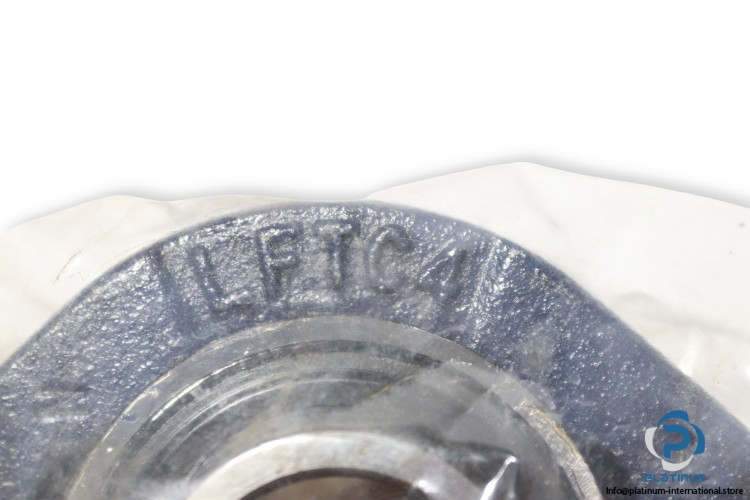

Housing: LFTC4

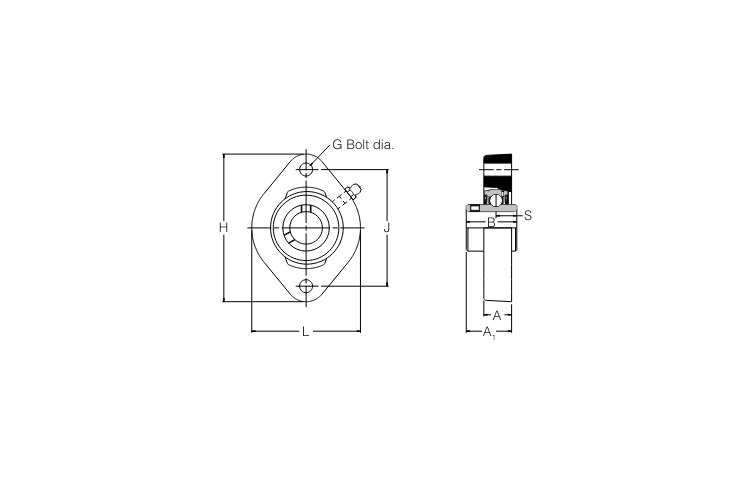

Bore Diameter d: 30 mm
Flange width L: 84 mm
Height flange H: 112 mm
Distance fixing bore J: 90.5 mm
Total bearing width A1: 33.62 mm
Fixing bore G: 10 mm
Number of holes: 2
Basic dynamic load rating: 19500 N
Basic static load rating: 11300 N
Rec. maximum speed: 5300 rpm
Material: cast iron
Locking Device: set screw
