RHP SF55 Four-Bolt Square Flange Unit
Yeni
Stokta2 ünitelerSevkiyata hazır

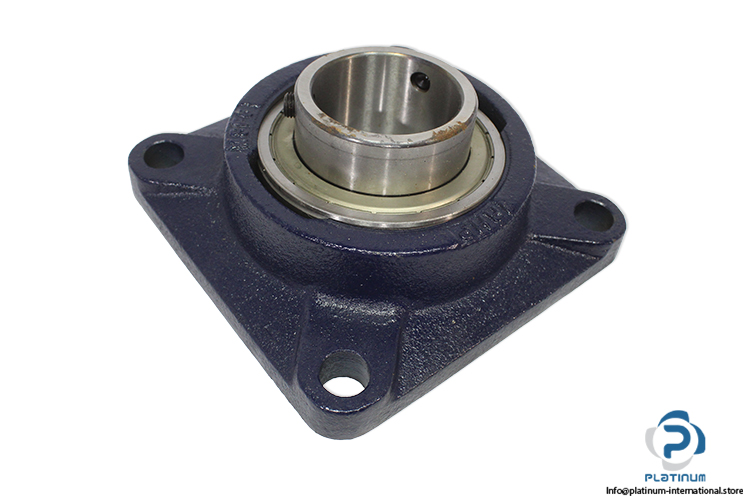

Four-Bolt Square Flange Unit RHP SF55 flange unit with 55 mm shaft diameter, cast iron housing, and high load capacity, designed for stable mounting and reliable industrial performance.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

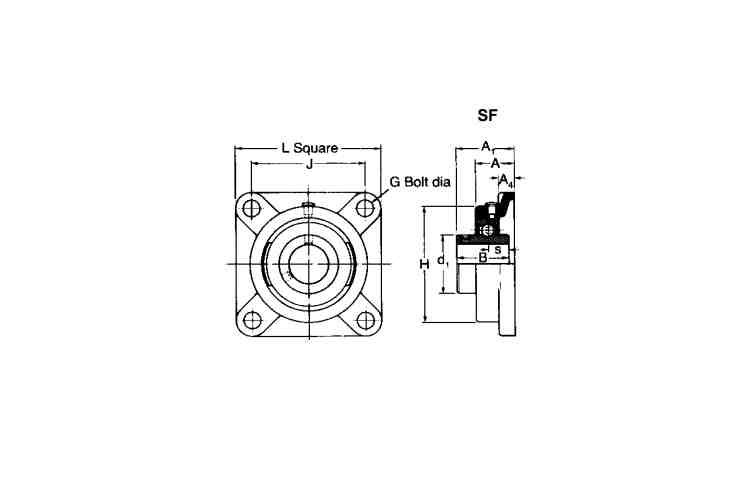

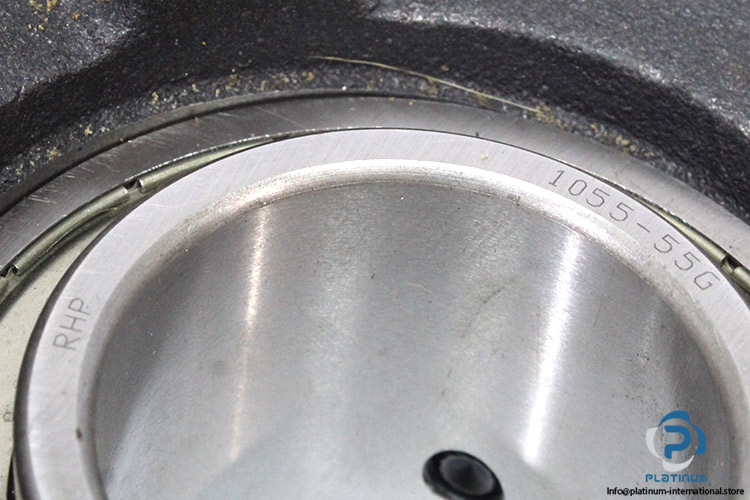

| Bearing No. | 1055-55G |

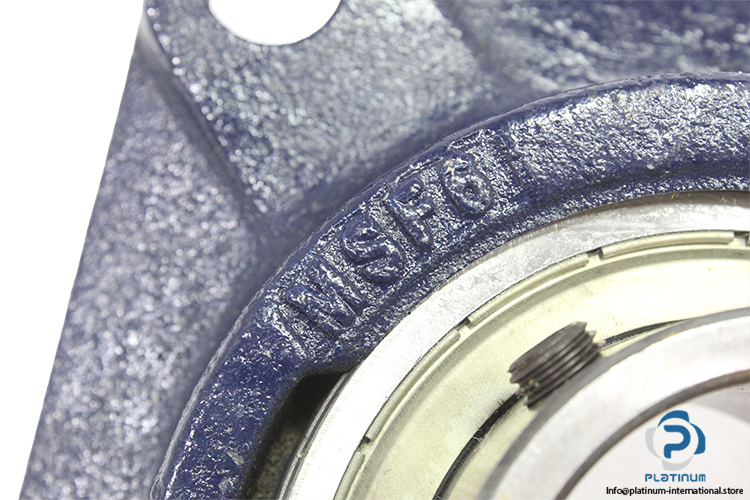

| Housing No. | MSF6 |
| Shaft diameter d | 55 mm |
| Overall length L | 161,9 mm |
| H | 127,0 mm |
| J | 130,00 mm |
| G | 16 mm |
| A | 43,7 mm |
| B | 55,55 mm |
| ISO load ratings dynamic | 43500 N |
| ISO load ratings Static | 29200 N |
| Speed | max. 3100 rev/min |
| Mounting | Four-Bolt Flange |
| Material, housing | Cast iron |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097091 |
| Weight | 3,2 |
