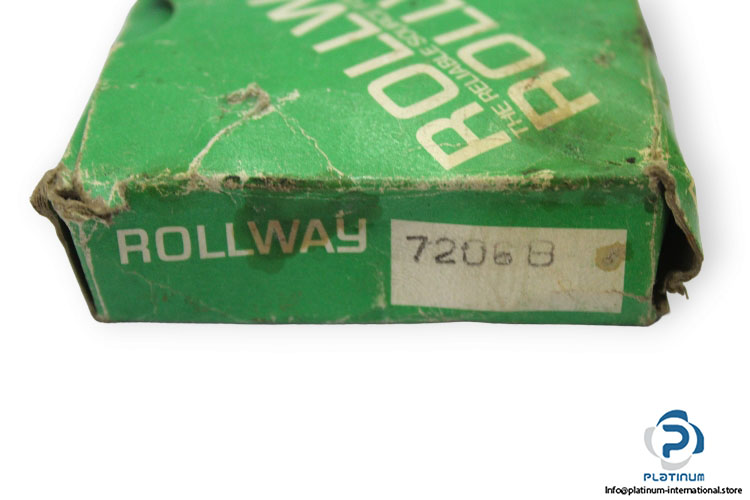

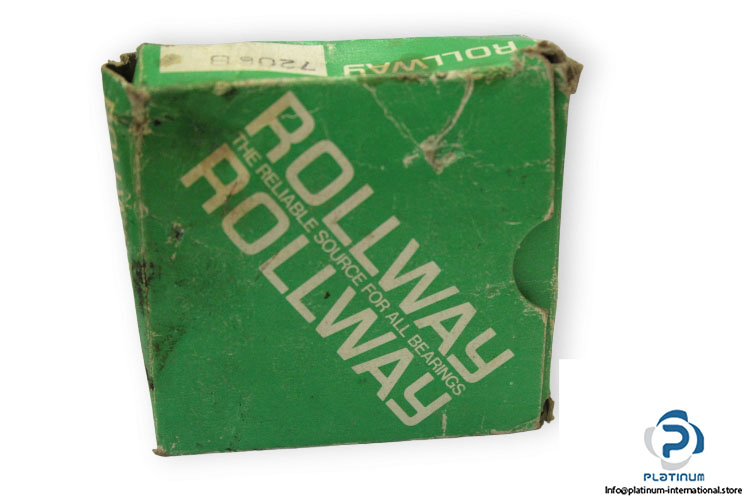

Rollway 7206B Angular Contact Ball Bearing
40° temas açısına sahip Bearing Rollway 7206 B açısal temaslı bilyalı rulman, yüksek hızlı performans ve birleşik yük uygulamaları için tasarlanmıştır.
Rollway 7206 B Angular Contact Ball Bearing
The Rollway 7206 B Angular Contact Ball Bearing is designed for high-performance applications requiring combined radial and axial load support. With a 40° contact angle, this bearing ensures optimal load distribution, high-speed capability, and reliable operation in demanding industrial environments.
Manufacturer: Rollway
Type: Angular Contact Ball Bearing
Model: 7206 B
Engineered for durability and precision, making it an excellent choice for high-speed and high-load industrial applications.
| Bore Diameter (d) | 30 mm |
| Outer Diameter (D) | 62 mm |
| Width (B) | 16 mm |
| Contact Angle (α) | 40 ° |
| Dynamic Load Rating (Cr) | 20500 N |
| Static Load Rating (C0r) | 13600 N |
| Limiting Speed (Grease) | 8500 rpm |
| Limiting Speed (Oil) | 12000 rpm |
