Rosemount E1151DP3E22 Differential Pressure Transmitter
Kullanılmış
Stokta1 birimSevkiyata hazır
339,00$
Differential Pressure Transmitter
The Rosemount E1151DP3E22 Differential Pressure Transmitter offers high precision with a 2000 PSI limit, 4“20 mA output, and durable stainless steel construction. Includes ASSY-01151-0137 transmitter circuit board.2000316L4-20600AluminumASSY-01151-0137BoardCircuitDiaphragmdifferentialE1151DP3E22FillFluidHousingIP66mAMmwgOutputPressureProtectionPSIRosemountSiliconSSTTransmitter
Yeni
Stokta 599,00$
Bu ürün ayrıca yeni olarak da mevcuttur
Yeni Sürümü Görüntüle →
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

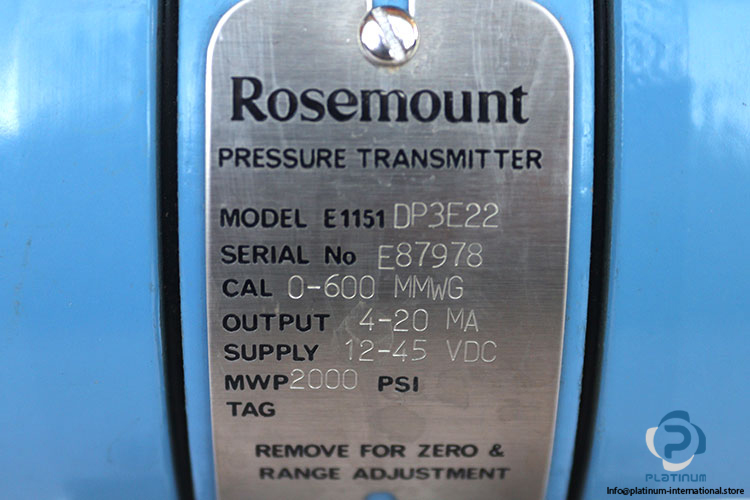

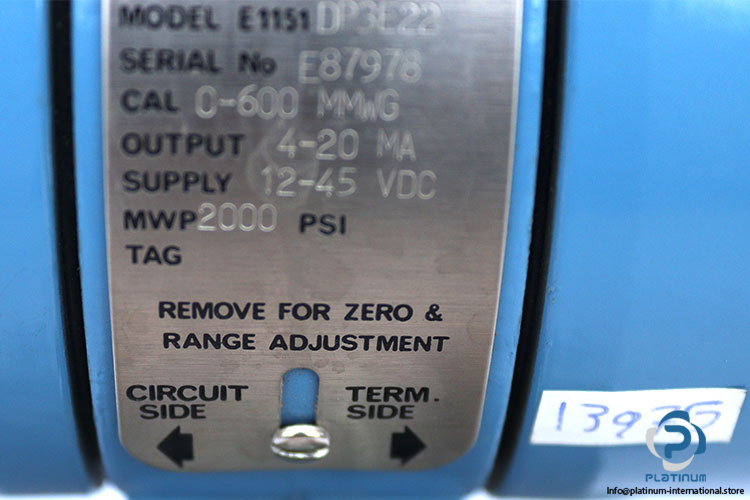

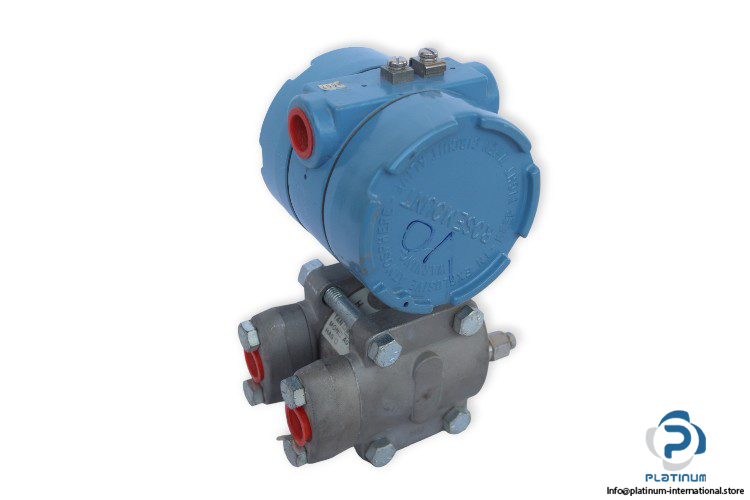

Rosemount E1151DP3E22 Differential Pressure Transmitter
The Rosemount E1151DP3E22 Differential Pressure Transmitter is a highly accurate and reliable device engineered to measure differential pressure in industrial applications. With rugged construction and a wide operating range, it ensures precise performance under harsh environmental conditions.
Manufacturer: ROSEMOUNT
Type: Differential Pressure Transmitter
Model: E1151DP3E22
Material:
Attachment:

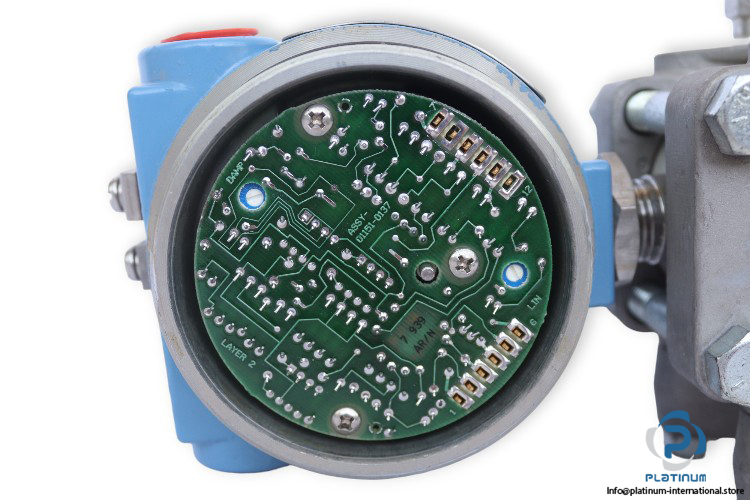

ROSEMOUNT ASSY-01151-0137 Transmitter Circuit Board
| Measure Pressure Limit | 2000 PSI |
| CAL. Range | 0 / 600 MMWG |
| Supply Voltage | 12 / 45 V DC |
| Output Current | 4 / 20 mA, Linear with Input |
| Fill Fluid | Silicon |
| Housing | Aluminum |
| Isolating Diaphragm | 316L SST |
| Flanges/Adapters | 316 SST |
| O-Ring/Bolting | 316L SST |
| Protection Class | IP66 |
| Temperature | -40 / 85 °C |
| Dimensions | 229 x 114 x 114 mm |
