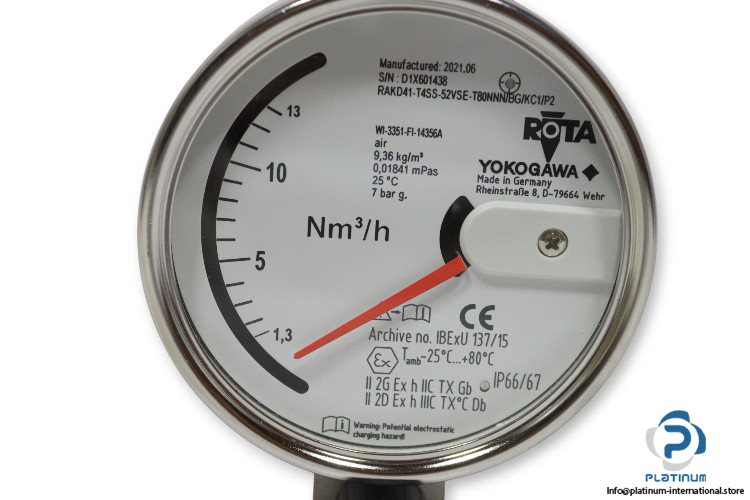

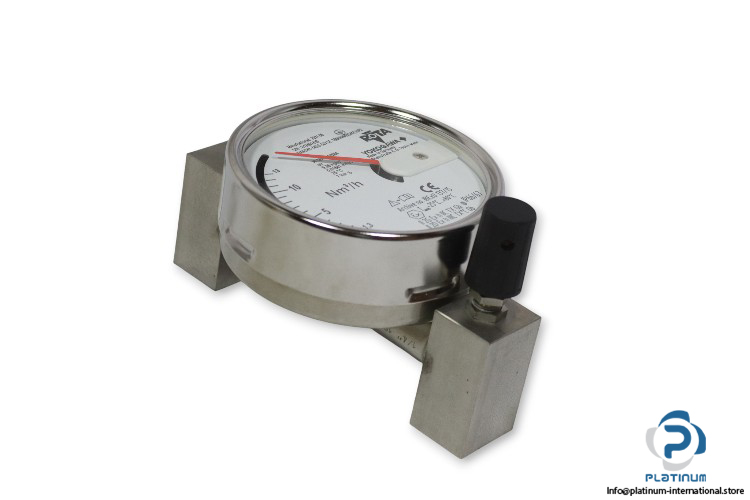

Rota RAKD41 Small Metal Rotameter
Small Metal Rotameter
High-precision stainless steel rotameter with ATEX protection, 4“20 mA output, and a 1.3“13 Nm³/h scale range. Designed for reliable airflow measurement in demanding industrial environments.Rota RAKD41-T4SS-52VSE-T80NNN/BG/KC1/P2 Small Metal Rotameter
The Rota RAKD41-T4SS-52VSE-T80NNN/BG/KC1/P2 is a high-quality small metal rotameter engineered for accurate air flow measurement under demanding industrial conditions. Designed with stainless steel 1.4571 / 316Ti materials, ATEX-certified protection, and reliable analog output, it provides stable and precise flow monitoring for critical applications.
Manufacturer: Rota
Type: Small Metal Rotameter
Model: RAKD41-T4SS-52VSE-T80NNN/BG/KC1/P2

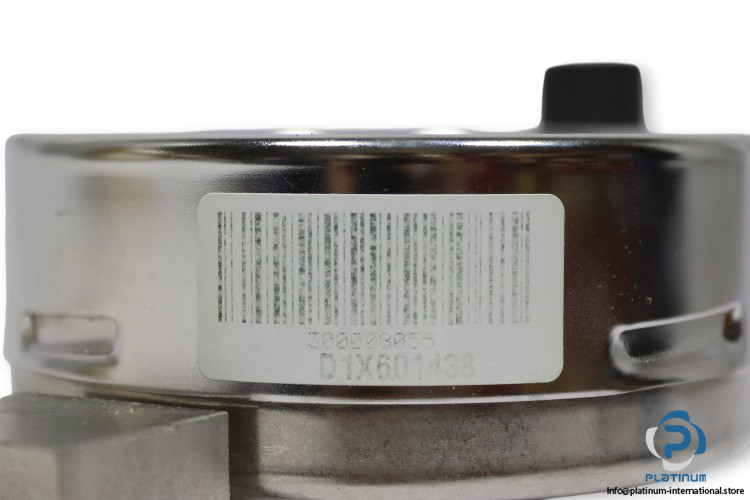

Serial Number: D1X601438
Code: WI-3351-F1-14356A / 300003055 / D1X601438
Archive No.: IBExU 137/15
Recommendation
This rotameter is highly recommended for industries requiring precise, stable, and explosion-protected air flow measurement. Its 4“20 mA analog output allows easy integration into automation systems, while the IP66/67 housing ensures long-term durability. Ideal for chemical plants, compressed air systems, environmental monitoring, and any setup needing accurate flow control in harsh environments.
| Power Supply | 14 to 30 V DC |
| Analog Output | 4 to 20 mA |
| Scale | 1.3 to 13 Nm³/h |
| Medium | Air |
| Air Density | 9.36 kg/m³ |
| Dynamic Viscosity | 0.01841 mPas |
| Temperature Reference | 25 °C |
| Operating Pressure | 7 bar |
| Scale Range | Approximately 1.3 to 13 Nm³/h |
| Certification | CE Certified |
| Explosion Protection (ATEX) | II 2G Ex h IIC TX Gb, II 2D Ex h IIIC TX°C Db |
| Temperature Range | -25 °C to +80 °C |
| Protection Class | IP66/67 |

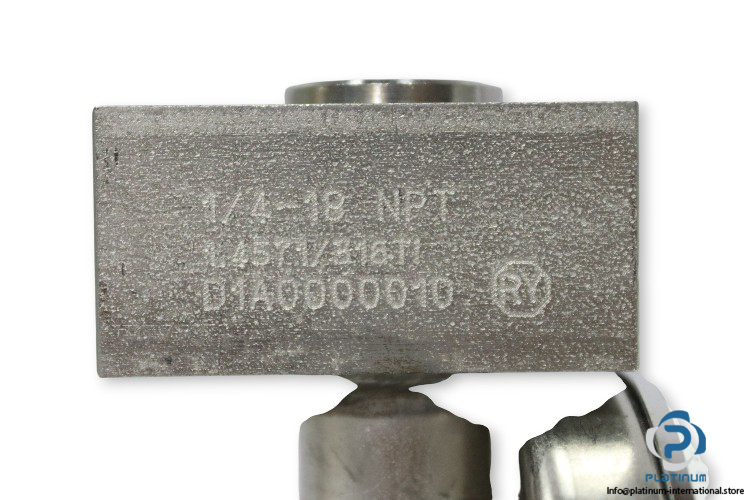

| Material Marking | 1.4571 / 316Ti (stainless steel) |

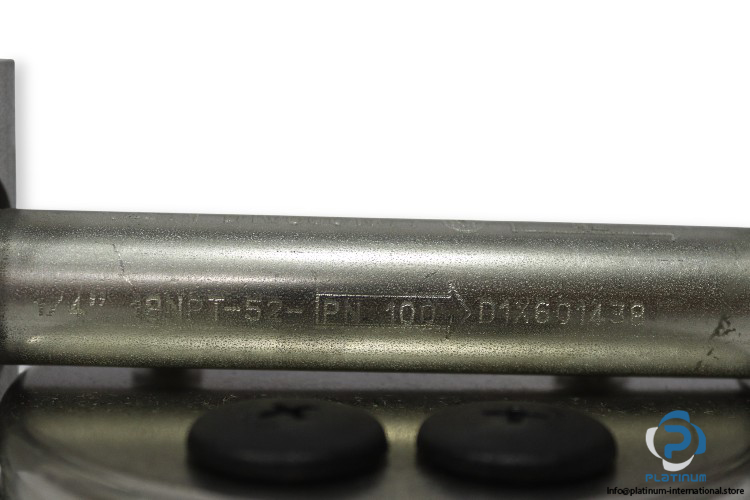

| Process Connection | G1/4 |
| Pressure Tube Rating | 100 bar |
