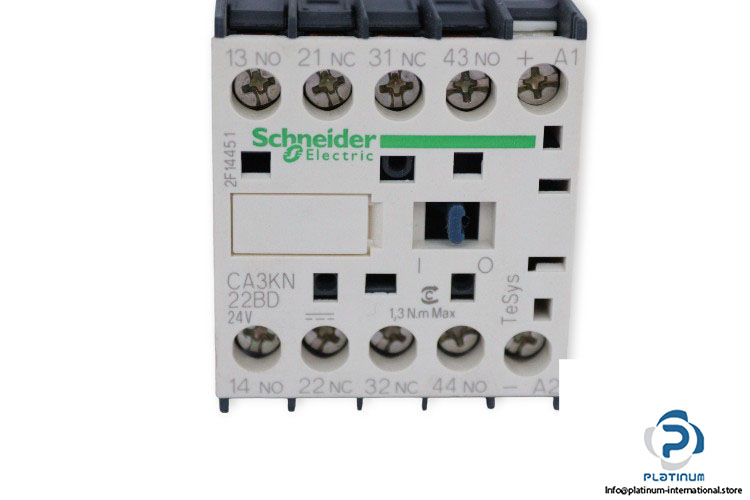

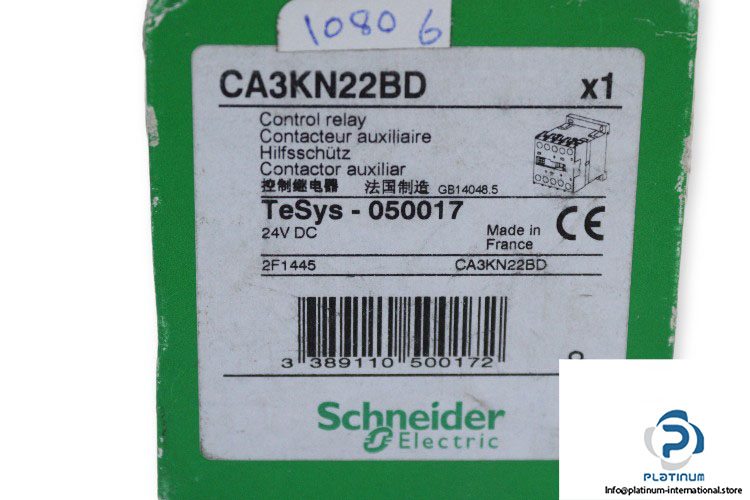

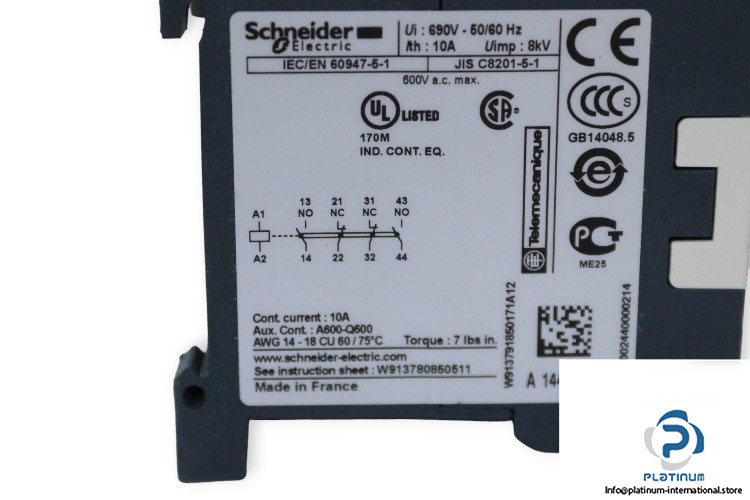

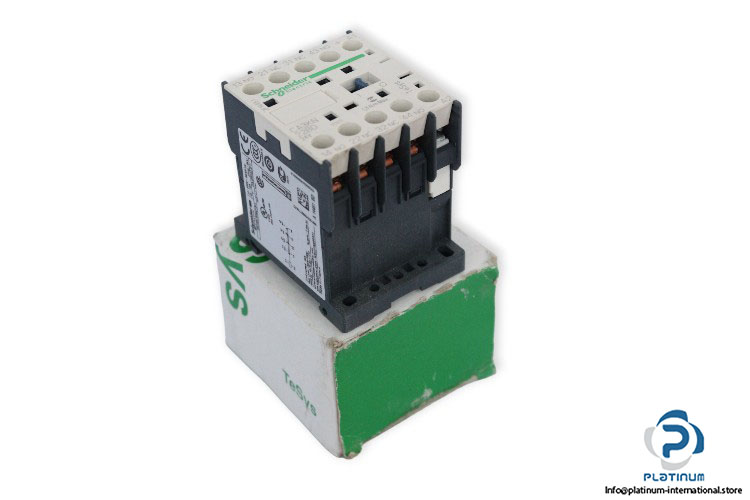

Schneider CA3KN22BD Control Relay

Manufacturer: SCHNEIDER
Type: Control Relay
Model: CA3KN22BD
Part No.: 050017

Series: CA3K
Rated Coil Voltage (Uc):  24 V DC
Rated Operational Voltage: 690 V AC
Rated Thermal Current (Ith): 10 A
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 8 kV
No. of Poles: 5-Pole
Contact: 4-Pole 2 Normally Open (NO) + 2 Normally Closed (NC)
Switching Voltage Min.: 17 V
Switching Current Min.: 5 mA
Protection Class: IP2X
Ambient Temperature: -40 … 60 °C
Dimensions: 58 x 45 x 57 mm
