Schneider Electric TSXDEY64D2K Discrete Input Module
Kullanılmış
Stokta1 birimSevkiyata hazır
64 akım-çekişli izole girişe sahip diskret giriş modülü, 24 V DC voltaj ve 0 ila 60°C çalışma sıcaklığı aralığı.
2464AutomationConnectorcurrent-sinkdcDiscreteElectricIndustrialInputinputsIsolatedModiconModulePremiumSchneiderV
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

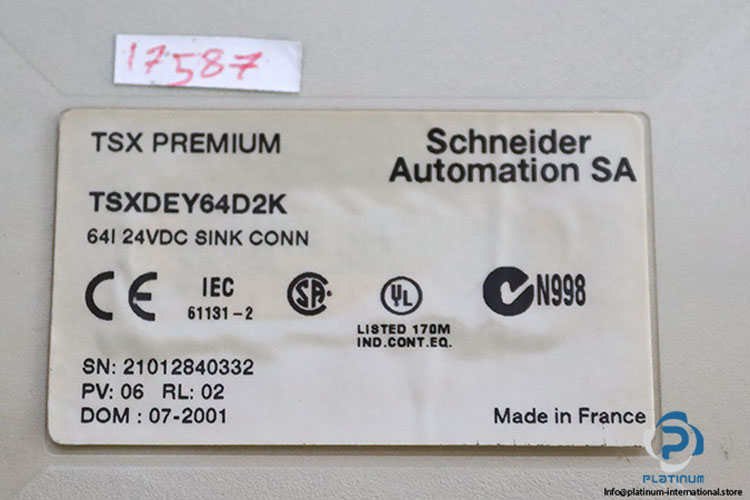

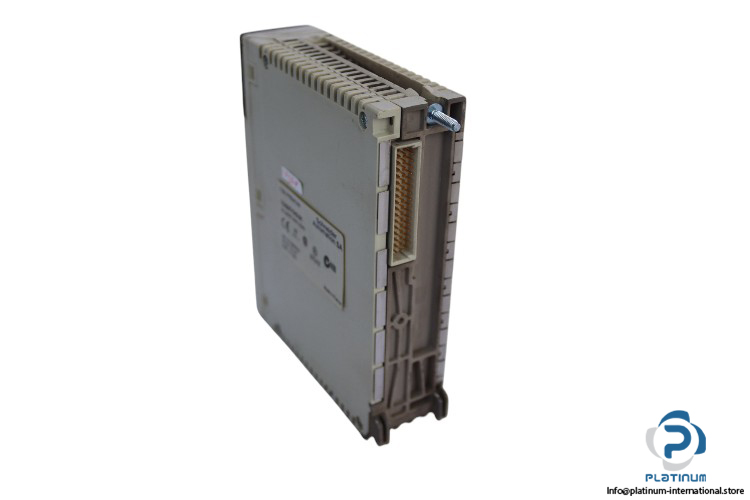

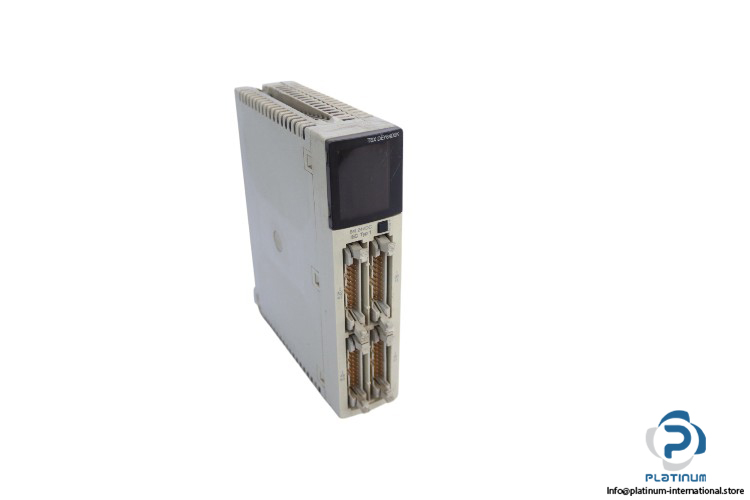

Schneider Electric Discrete Input Module TSXDEY64D2K
The Schneider Electric TSXDEY64D2K is a high-performance discrete input module, part of the Modicon Premium Automation platform. With 64 current-sink isolated discrete inputs, this module ensures precise and reliable operation in various industrial settings.
🔧 Technical Specifications:
- Manufacturer: Schneider Electric
- Type: Discrete Input Module
- Model: TSXDEY64D2K
- Range: Modicon Premium Automation Platform
- Discrete Input Number: 64 current-sink isolated EN/IEC 61131-2 type 1
- Discrete Input Voltage: 24 V DC positive
- Sensor Power Supply: 19 to 30 V
- Discrete Input Current: 3.5 mA
- Response Time: 4 ms, <= 7 ms
- Current Consumption: 155 mA 5 V DC, 315 mA 24 V DC
- Power Dissipation: 1.5 W + 0.1 W x No. of channels used
- Electrical Connection: HE-10 connector
- Standard: IEC 61131-2
- Operating Temperature: 0 to 60°C
- Protection Degree: IP20
