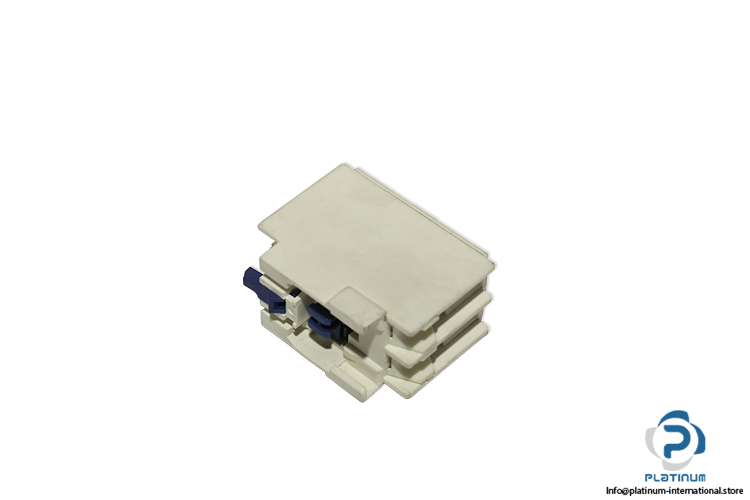

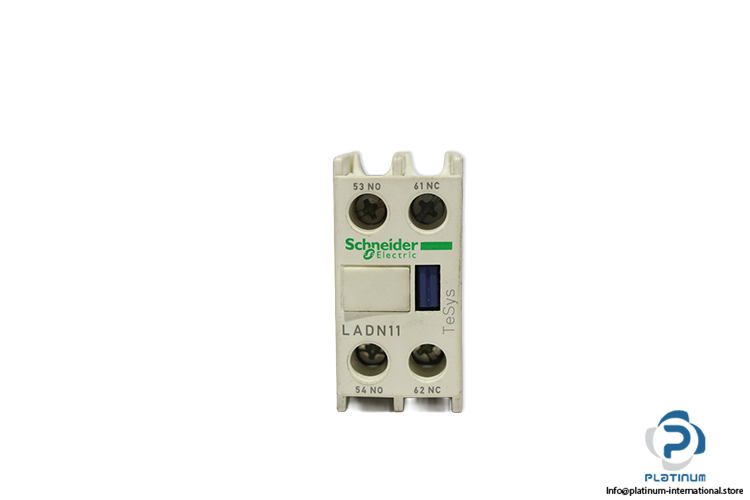

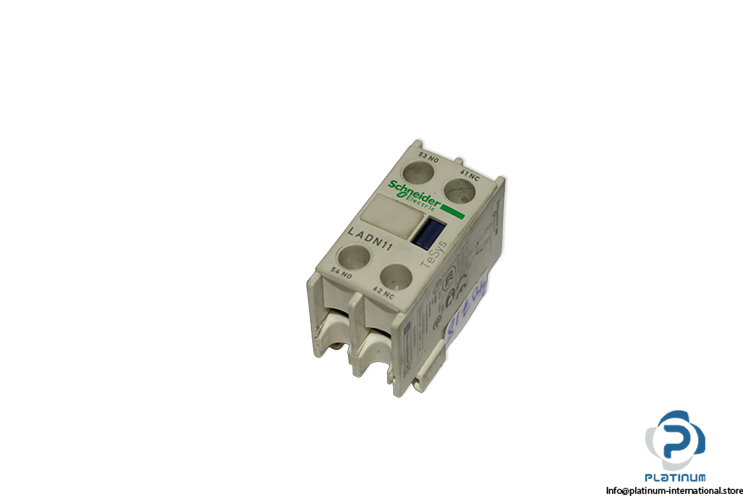

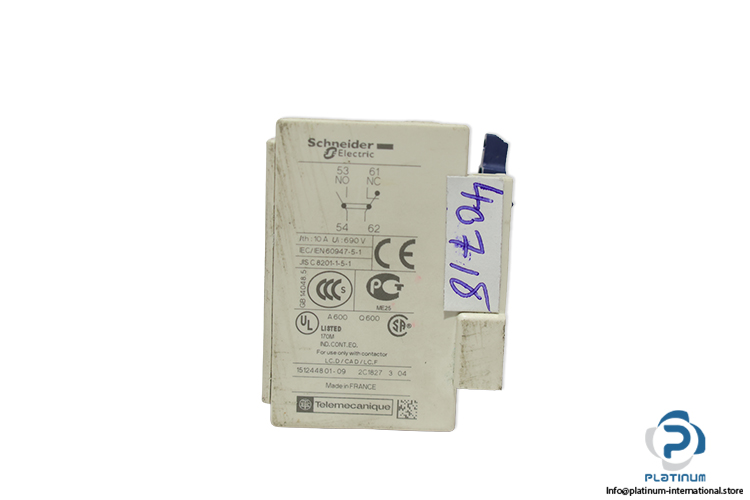

Schneider LADN11 Auxiliary Contact Block
Yeni
Stokta1 birimSevkiyata hazır
with 1 NO + 1 NC contacts, 10 A thermal current, and IP20 protection, compatible with TeSys contactors and control relays.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
| Code | 151244801-09 |
| Device short name | LADN |
| Range Compatibility | TESYS D CADM, TESYS D LC1D, TESYS F LC1F, TESYS F CR1F, TESYS Deca CAD, TESYS Deca LC1D |
| rated operational voltage | 690 V AC / 25...400 Hz |
| Rated Operational Current | 6 A at 120 V AC-15 , 1.04 A at 690 V AC-15, |
| Rated Insulation Voltage | 690 V conforming to IEC 60947-5-1, 600 V conforming to UL, 600 V conforming to CSA |
| Thermal Current (Ith) | 10 A |
| contact | 1 NO + 1 NC |
| Minimum Switching Current | 5 mA |
| Minimum Switching voltage | 17 V |
| Tightening Torque | 1.7 N.M |
| Degree Of Protection | IP20 |
| Ambient Temperature Operation | -5…60 °C |
| Dimensions | 28 x 26 x 42 mm |
| Standards | EN/IEC 60947-5-1 |
| Condition | New |
| SKU | 1105013 |
| Weight | 0,03 |
