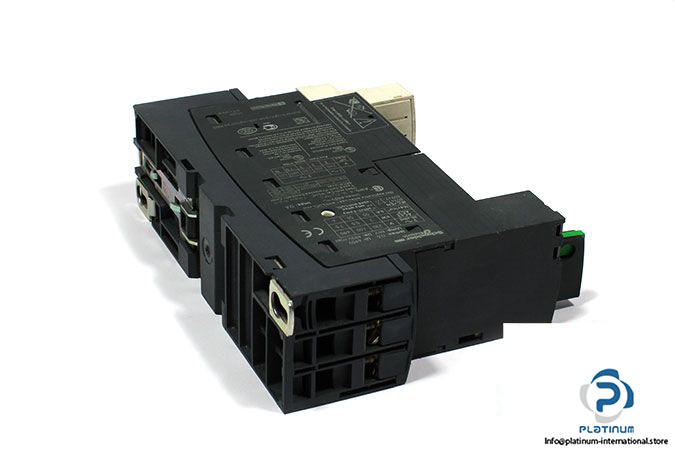

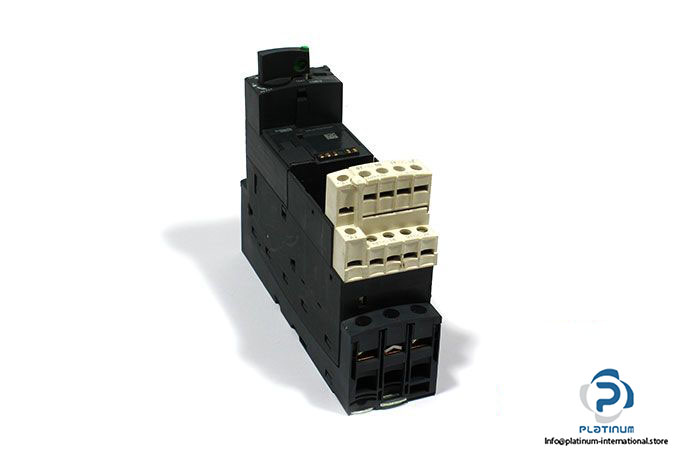

Schneider LUB12 LUA1C20 Power Base

Manufacturer: SCHNEIDER

Type: POWER BASE

Model: LUB12 LUA1C20

Range: TeSys

Device Application: Motor Control / Motor Protection

Number of Poles: 3

Rated Operational Current (Ie): 12 A

Rated Operational Voltage (Ue): 690 V AC

Operating Frequency: 40…60 Hz

Rated Surge Voltage Resistance (Uimp): 6 kV

Rated Insulation Voltage (Ui): 690 V AC

Torque: 15 lb-in

Connections – Terminals: Screw Clamps Control

Standards: IEC 60947-2 / EN 60947-6-2

Fixing Mode: Clipped (DIN Rail) / Screw-Fixed (Plate)

Protection Class: IP20

No of controls:3 Normally Open, 1 Normally Close

Dimensions: 45 x 126 x 154 mm

Operation Ambient Temperature: -40 … 85 °C

Weight: 0.81 kg
