Schneider MD40ER-24M Electronic Return Damper Actuator

Name: SCHNEIDER MD40ER-24M ELECTRONIC RETURN DAMPER ACTUATOR
SKU: 1034395
Availability: LimitedAvailability

schneider-MD40ER-24M-electronic-return-damper-actuator-(Used)

schneider-MD40ER-24M-electronic-return-damper-actuator-(Used)-1

schneider-MD40ER-24M-electronic-return-damper-actuator-(Used)-2

schneider-MD40ER-24M-electronic-return-damper-actuator-(Used)-3

Kullanılmış

Stokta1 birimSevkiyata hazır

Üretici: SCHNEIDER Tip: Elektronik Dönüş Damperi Aktüatörü Model: MD40ER-24M

Üretici

SCHNEIDER

SKU

1034395

Kategori

Electric Rotary Actuator

Koşul

Kullanılmış

Actuator damper Electric Electronic Return Rotary Schneider

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

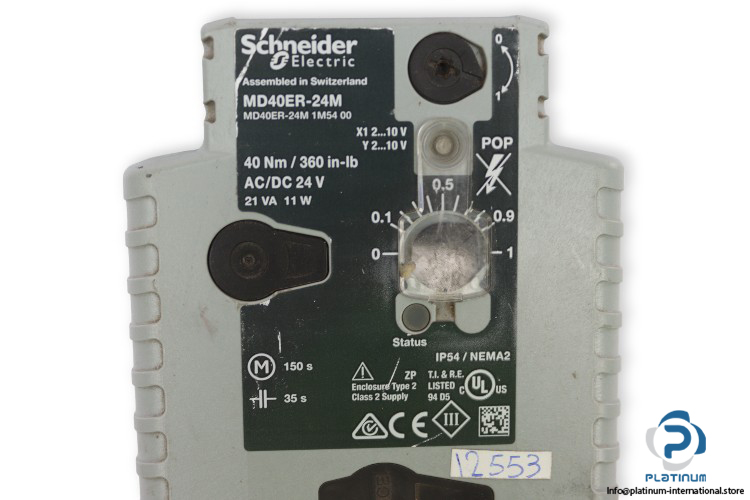

Manufacturer: SCHNEIDER
Type: Electronic Return Damper Actuator
Model: MD40ER24M

Rated Voltage: 24 V AC / DC
Rated Current: 0.5 mA
Nominal Torque: 40 Nm
Input Resistance: 100 kΩ
Power Consumption: 11 W
Running Time:
Motor Driven: 150 s / 90°
Capacitor Driven: 35 s / 90°
Position Indication: Mechanical
Electronic Return (Super Cap) Position: 0 … 100 %
Angle of Rotation Max.: 95°
Protection Class: IP54
Ambient Temperature: -30 … 50 °C
Dimensions: 210 x 116 x 87 mm
