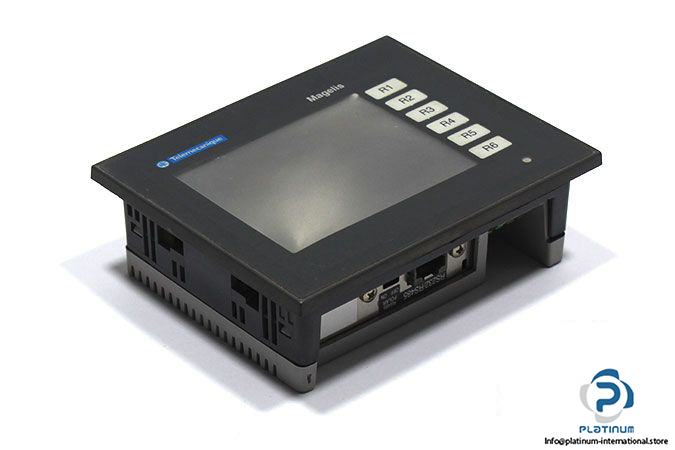

Telemecanique XBTGT1100 Advanced Touchscreen Panel

Manufacturer: Schneider Electric / Telemecanique

Type: Advanced Touchscreen Panel

Model: XBTGT1100

Rated Supply Voltage: 24 VDC

Supply Voltage Limits: 19.2…28.8 V

Inrush Current: 50 A

Power Consumption: 7 W

Display Type: Backlit Monochrome STN LCD

Display Color: Amber or Red, 8 Levels of Grey

Display Resolution: 320 x 240 pixels QVGA

Display Size: 3.8”

Software Type: Configuration Software

Software Designation: Vijeo Designer

Operating System: Magelis

Processor Name: CPU RISC

Processor Frequency: 100 MHz

Memory Description: 512 kB SRAM Back Up of Data with Lithium Battery Back-Up 8 MB Flash EPROM Application Memory

Ambient Temperature: 0…50 °C

Protection Class: IP20

Weight: 0.35 kg
