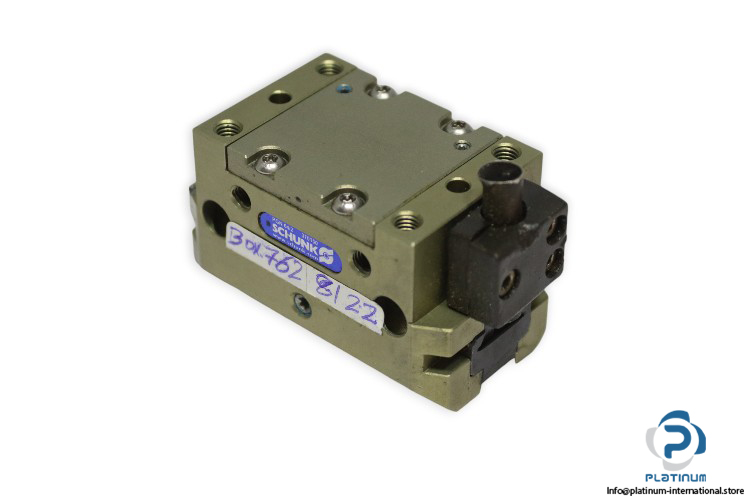

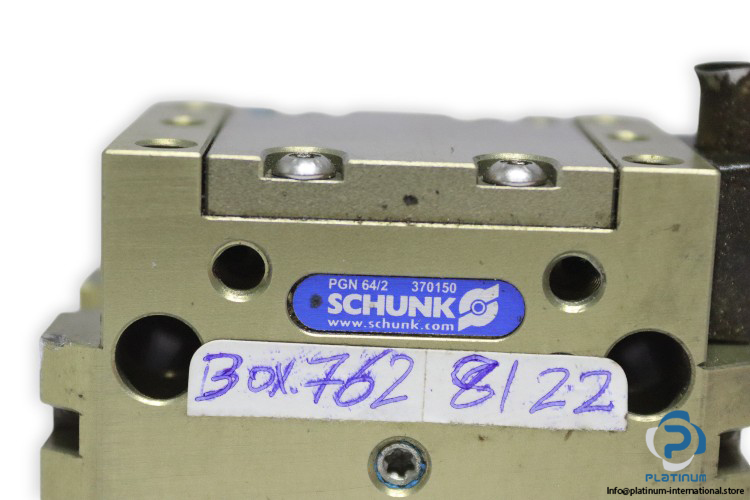

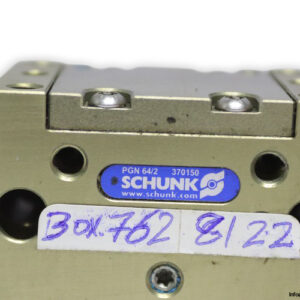

Schunk PGN 64/2 Parallel Gripper

Manufacturer: SCHUNK
Type: Parallel gripper
Model: PGN 64/2
Part No.: 370150

Size: 64
Stroke per jaw: 3 mm
Closing force: 720 N
Opening force: 770 N
Max. operating pressure: 8.0 bar
Nominal operating pressure: 6.0 bar
Max. ambient temperature: 90 °C
Max. permissible weight per finger: 0.4 kg
Min. ambient temperature: 5.0 °C
Max. ambient temperature: 90.0 °C
Repeat accuracy: 0.01 mm
Moment Mx max.: 47.0 Nm
Max. axial force Fz max.: 1300.0 N
Min. operating pressure: 2.5 Bar
Moment My max.: 60.0 Nm
Moment Mz max.: 53.0 Nm
IP protection class: 40
Pneumatic Connection: 5 mm
