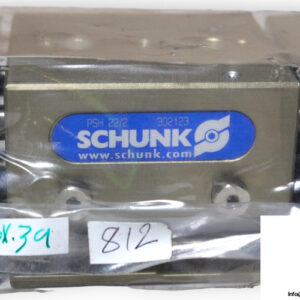

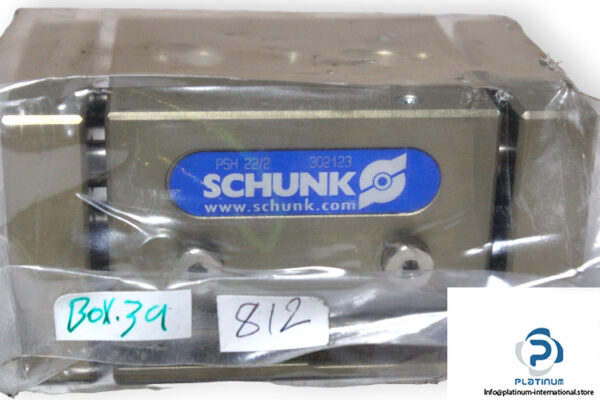

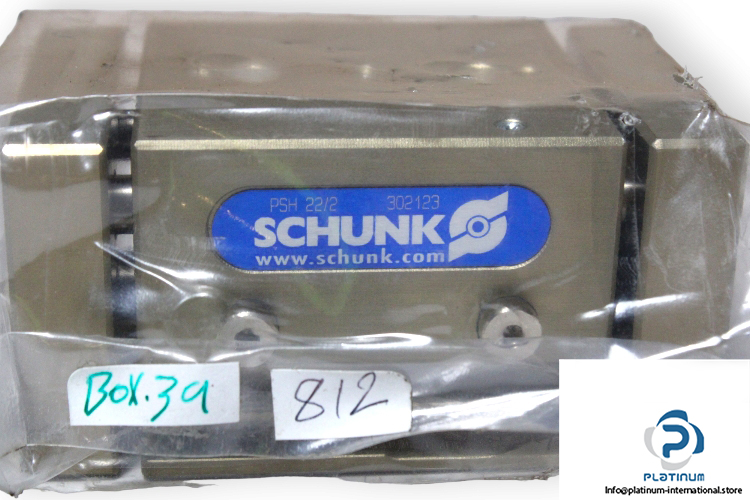

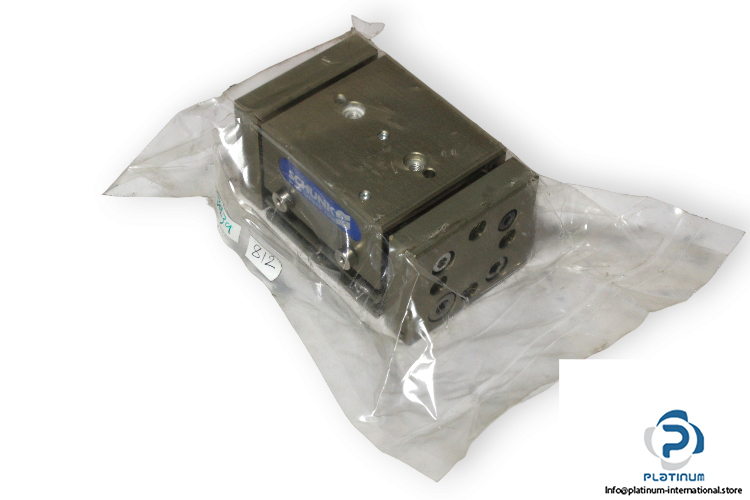

Schunk PSH22/2 Long-Stroke Gripper

Manufacturer: SCHUNK
Type: Long-stroke gripper
Model: PSH22/2
Part No.: 302123

Stroke per jaw: 14 mm
Closing force: 320 N
Opening force: 320 N
Closing force (with finger lengths of 0 mm): 380 N
Opening force (with finger lengths of 0 mm): 380 N
Recommended workpiece weight: 1.6 Kg
Fluid consumption double stroke: 18 cm³
Min. operating pressure: 3 bar
Max. operating pressure: 8 bar
Nominal operating pressure: 6 bar
Closing time: 0.12 s
Opening time: 0.12 s
Length X: 95 mm
Width Y: 58 mm
Height Z: 48 mm
Moment Mx max.: 20 Nm
Moment My max.: 10 Nm
Moment Mz max.: 10 Nm
Max. axial force Fz max.: 200 N
