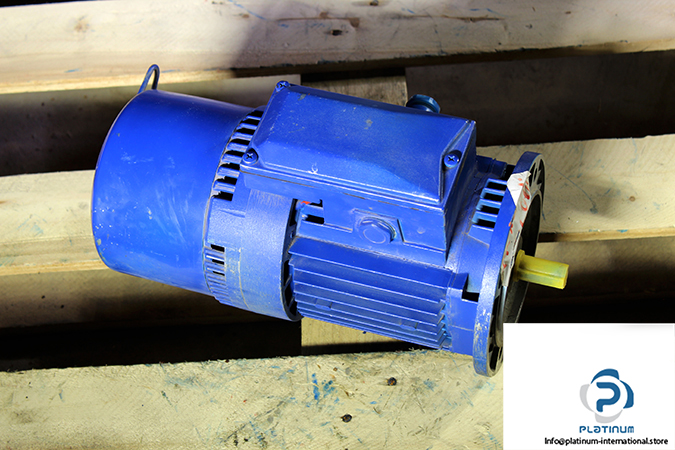

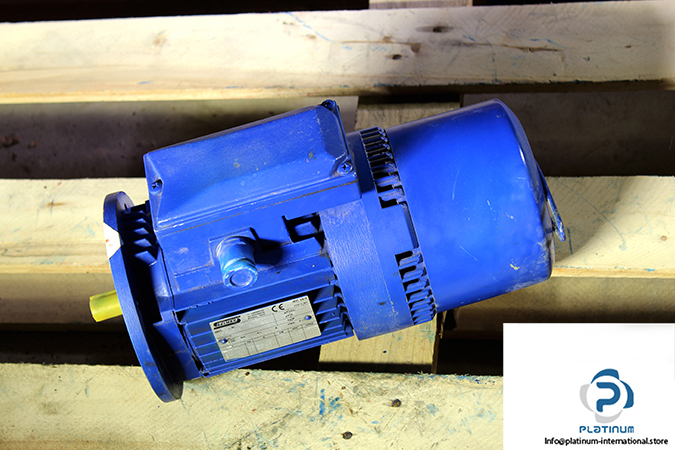

Seimec HFF 71B 4 B5 Brake Motor

Manufacturer: Seimec
Type: Brake Motors
Model: HFF71B4B5

Motor Speed [r/min]: 1400/1680
Motor Power [kW]: 0.37/0.44
Rated Voltage [V]: 230/277 Delta
Rated Voltage [V]: 400/480 Star
Nominal Current [A]: 2.04/1.18 Delta/Star
Motor Frequency [Hz]: 50/60
Cos Phi: 0.66
Thermal Class: F
Duty: S1
Protection Class [IP]: 54
Mounting Position [MI]: B5
Brake Model: FA03
Brake Torque [Nm]: 10/3
Brake Voltage [V]: 400/50
Brake Current [A]: 0.15
Weight [kg]: 10,9
