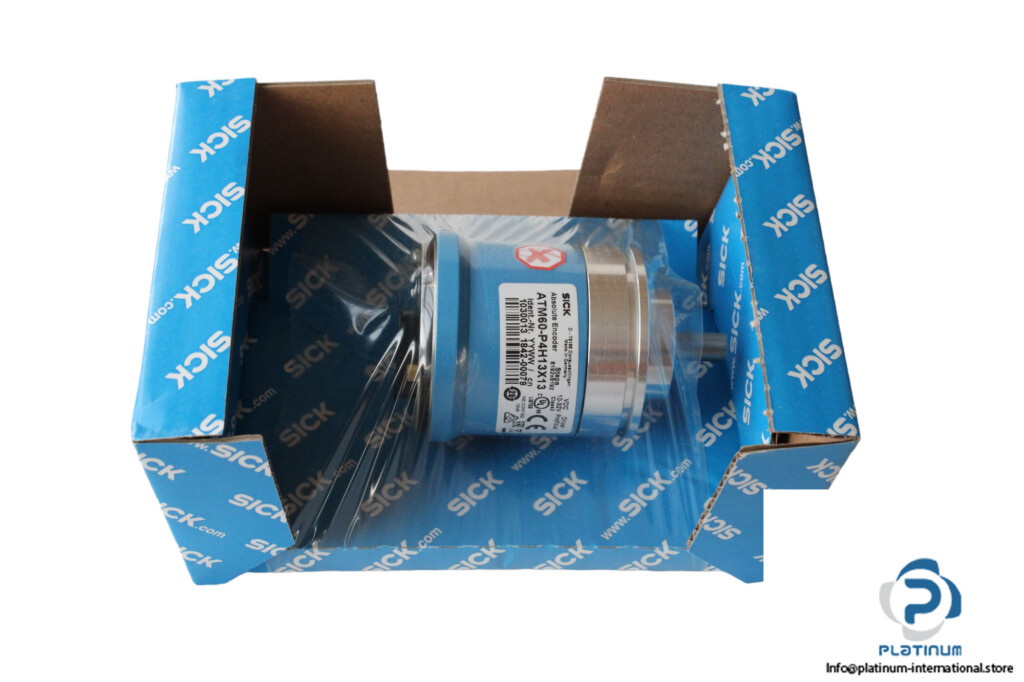

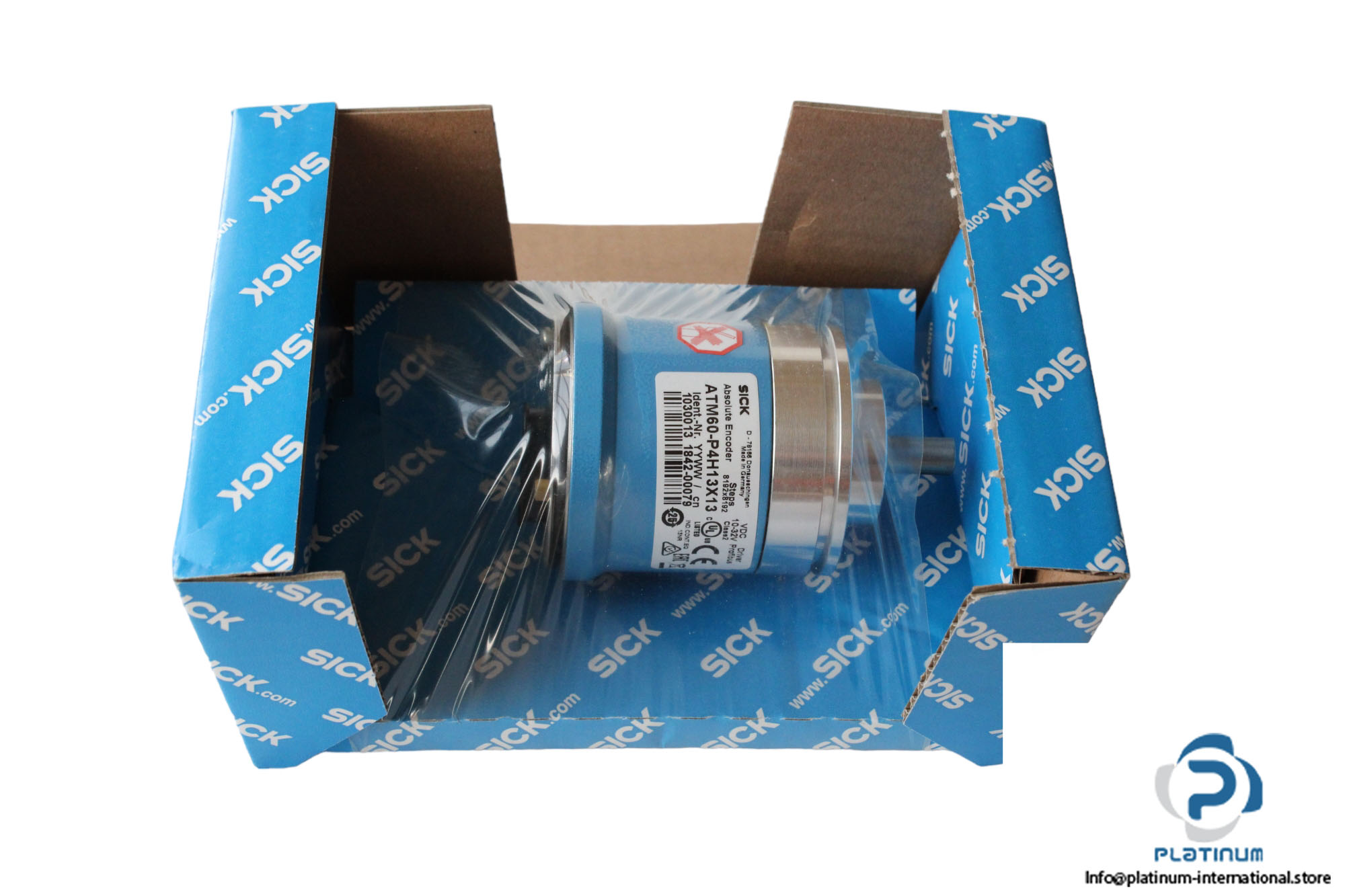

Sick ATM60-P4H13X13 Absolute Encoder
350,00$
ABSOLÜT ENKODER Sick ATM60P4H13X13, 13-bit çıkışlı ve PROFIBUS ara yüzüne sahip sağlam, yüksek çözünürlüklü bir mutlak enkoderdir. Paslanmaz çelik şaft ve IP67 koruması ile endüstriyel otomasyon sistemlerinde güvenilir pozisyon geri bildirimi sağlar.
SICK ATM60P4H13X13 ABSOLUTE ENCODER
Engineered for high-precision positioning and reliable performance in harsh industrial environments, the Sick ATM60P4H13X13 Absolute Encoder offers long-lasting durability and advanced signal transmission. Designed with PROFIBUS connectivity and robust materials, it's ideal for automation systems requiring accurate feedback and minimal maintenance.
Manufacturer: Sick
Type: Absolute Encoder
Model: ATM60P4H13X13

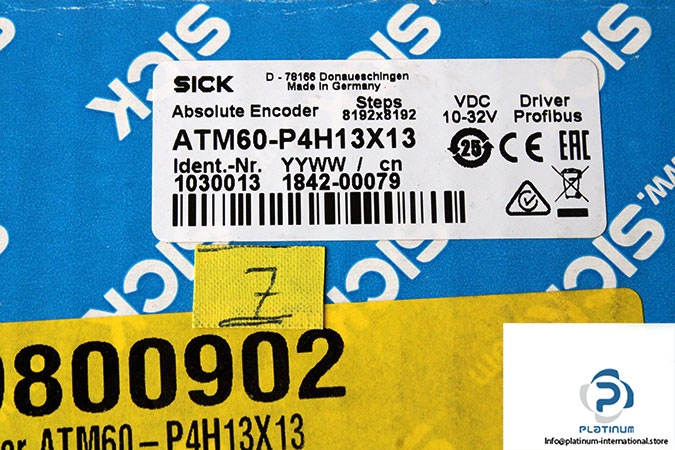

Part No.: 1030013 1842-00079
| Supply Voltage | 10 / 32 V DC |
| Power Consumption | ‰¤ 2 W (without load) |
| Connection Type | Bus adapter for PROFIBUS |
| Resolution | 8,192 steps/revolution (13 bit) |
| Mechanical Design | Solid shaft, face mount flange |
| Shaft Diameter | 10 mm |
| Shaft Length | 19 mm |
| Shaft Material | Stainless Steel |
| Housing Material | Aluminum Die Cast |
| Operating Torque | 1.8 Ncm (with shaft seal) |
| Operating Temperature | -20 / 85 °C |
| Enclosure Rating | IP67 (with shaft seal) |
| Dimensions | 66.8 x 59.5 x 48 mm |
