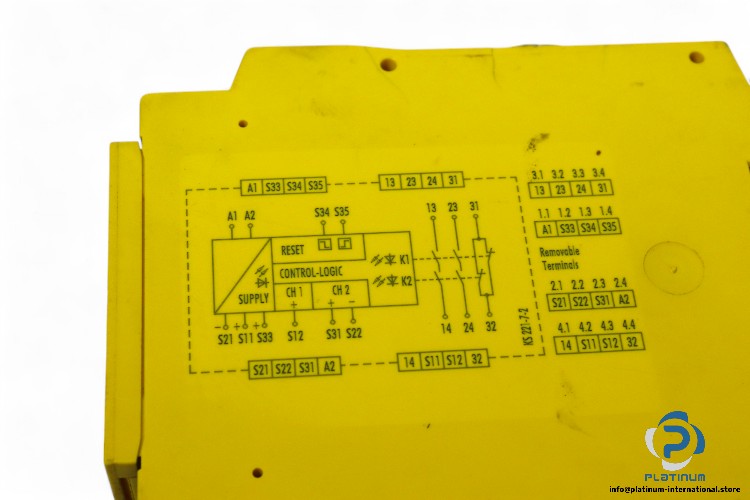

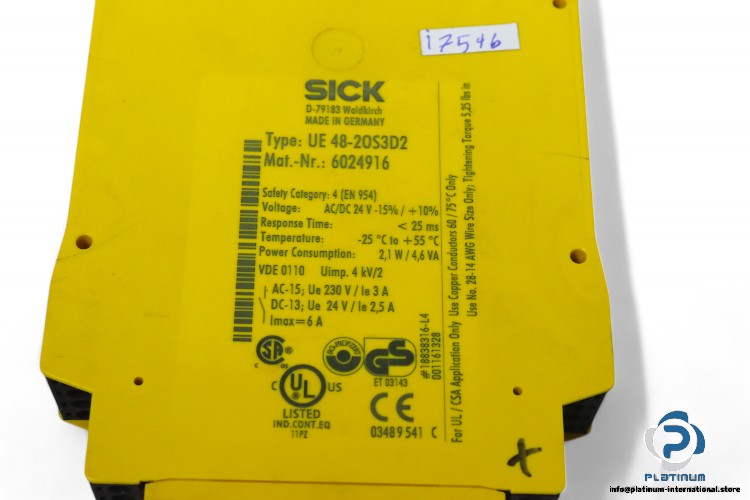

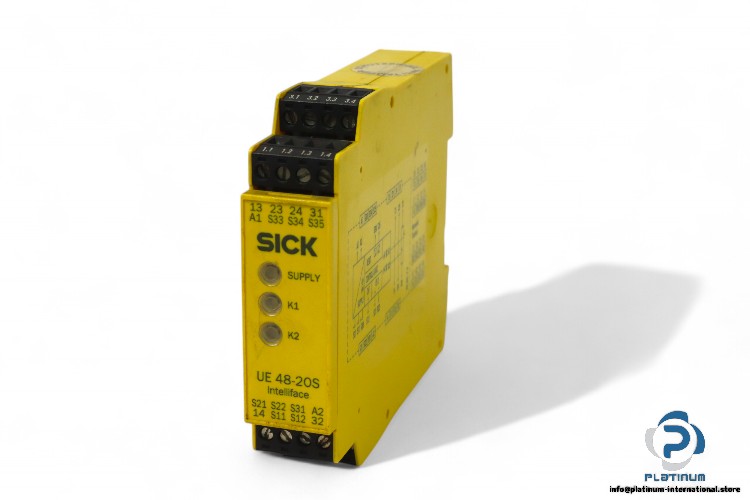

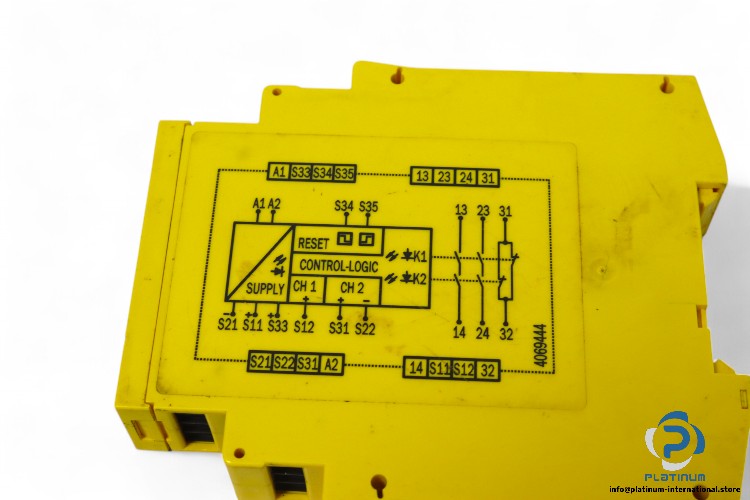

Sick UE48-2OS3D2 Safety Relay

SICK Safety Relay UE48-2OS3D2

The SICK Safety Relay UE48-2OS3D2 ensures high-level protection and safety in industrial applications. Designed with a supply voltage range of 20.4 V AC/DC to 26.4 V AC/DC, this relay offers a low residual ripple of 2.4 Vpp and a rated insulation voltage of 300 V AC. It has a strong impulse withstand voltage of 4 kV, ensuring reliable operation in demanding conditions. It is well-suited for control applications, with a control voltage of 22 V DC and an operating current range of 40 mA to 100 mA.

🔧 Technical Specifications:

• Manufacturer: SICK
• Type: Safety Relay
• Model: UE48-2OS3D2
• Supply Voltage: 20.4 V AC/DC … 26.4 V AC/DC
• Residual Ripple: 2.4 Vpp
• Power Consumption: 4.6 VA (AC), 2.1 W (DC)
• Overvoltage Category: II
• Rated Insulation Voltage: 300 V AC
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Test Voltage: 2 kV
• Control Voltage: 22 V DC
• Control Current: 40 mA … 100 mA
• Short-Circuit Current: 300 mA
• Dimensions (W x H x D): 22.5 mm x 114 mm x 96.5 mm
