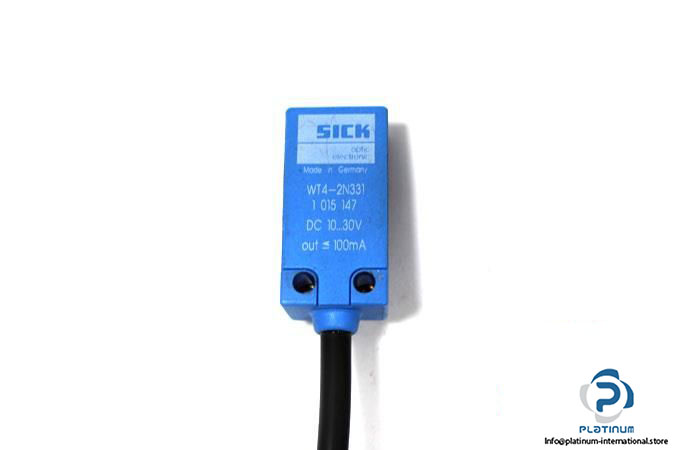

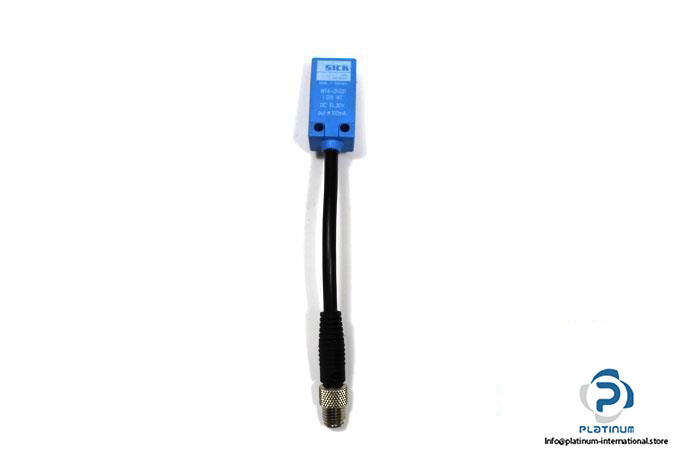

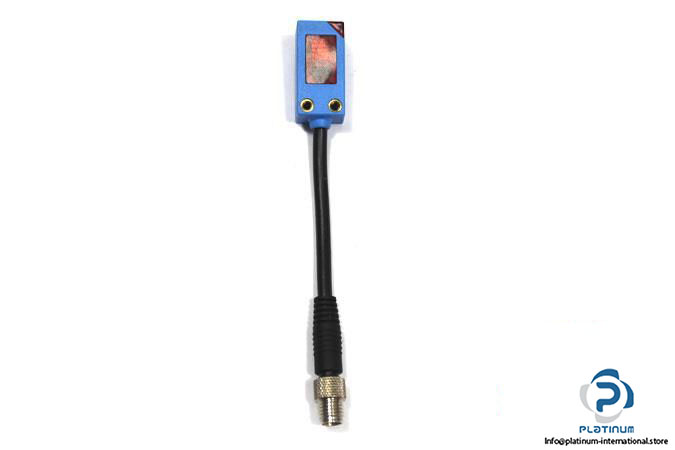

Sick WT4-2N331 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR, BACKGROUND SUPPRESSION

Model: WT4-2N331

Part No.: 1015147

Sensing Range: 4 … 130 mm

Response time: 500 µs

Operating Voltage: 10 … 30 V DC

Power consumption (without load): 20 mA

Switching output: NPN

Switching mode: Light/dark Switching

Adjustment: Single teach-in button

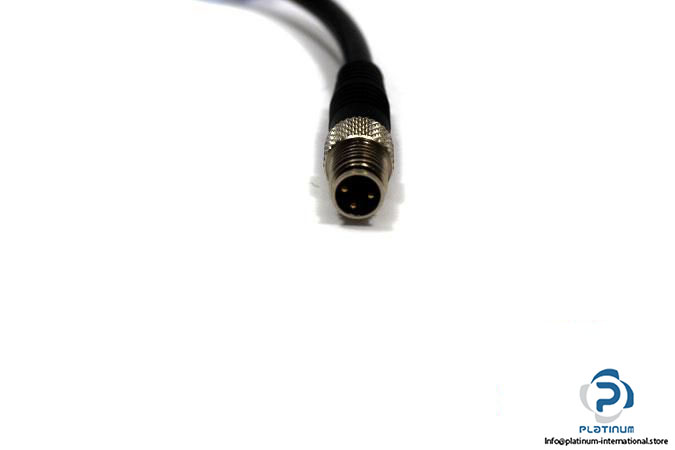

Connector type: Cable with connector M8, 3-pin, 100 mm

Enclosure rating: IP67

Ambient Operating temperature: -40 … 60°C

Dimensions: 16 X 32 X 12 mm

Housing: Rectangular

Housing material: Plastic, ABS

Sensing face material: Plastic, PMMA

Condition: New
