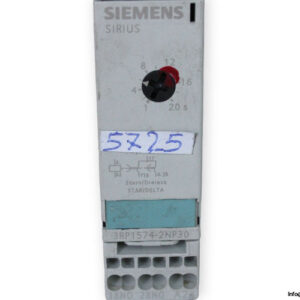

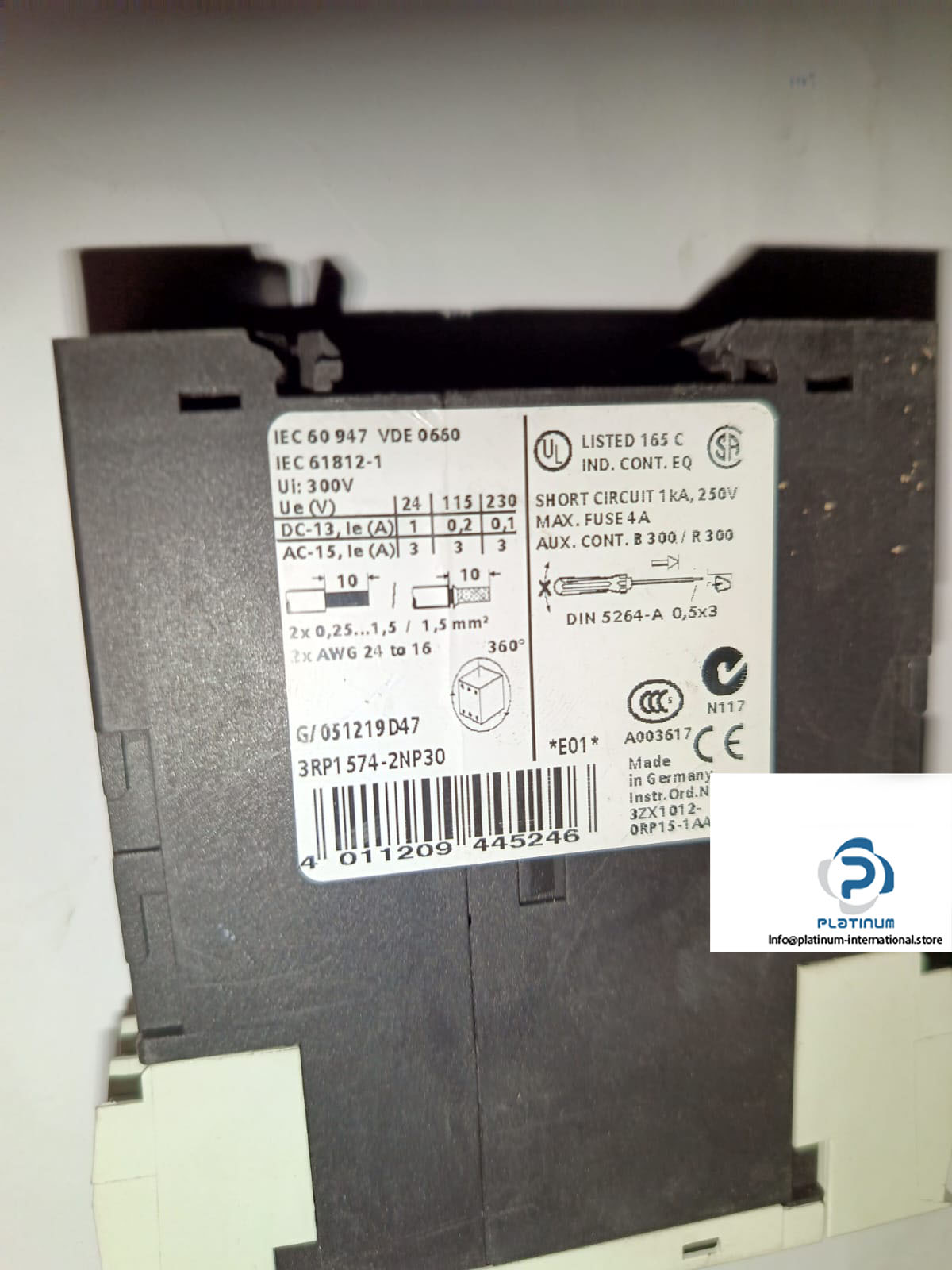

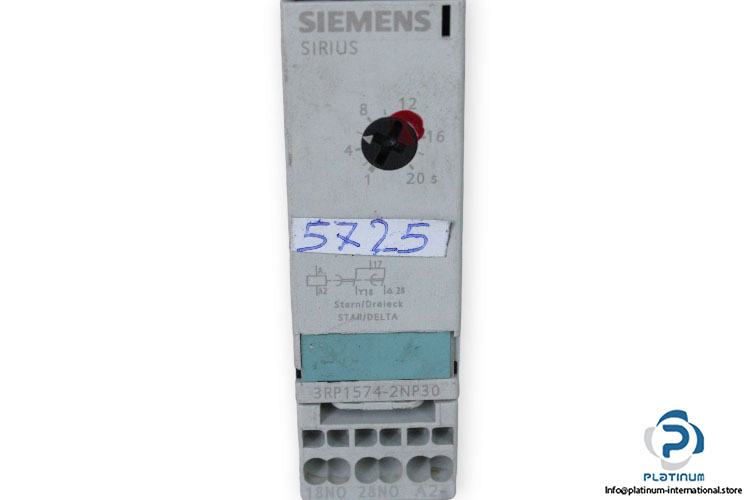

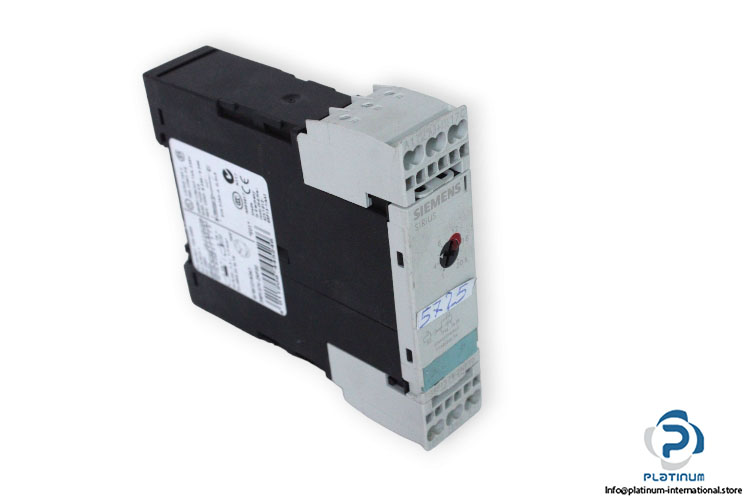

Siemens 3RP1574-2NP30 Timing Relay

Manufacturer: Siemens
Type: Timing Relay
Model: 3RP1574-2NP30
Order No.: 3ZX1012-0RP15-1AA1

Voltage: 24 V AC/ DC, 200 … 240 V AC/DC
Current: 28 A
Thermal Current: 5 A
Time Range: 1 … 20 s
Power Loss: 2 W
Max. Fuse: 4 A
Contact Configuration: 1 Normally Open
Contact Voltage: 24 … 230 V AC/DC
Contact Current: 1 … 0.1 A (DC)/ 3 A (AC)
Electrical Connection: Spring-Loaded Terminal
Insulation Voltage: 300 V
Degree of Pollution: 3
Operating Temperature: -25 … 60 °C
Degree of protection: IP20
Dimensions: 84 X 22.5 X 91 mm
