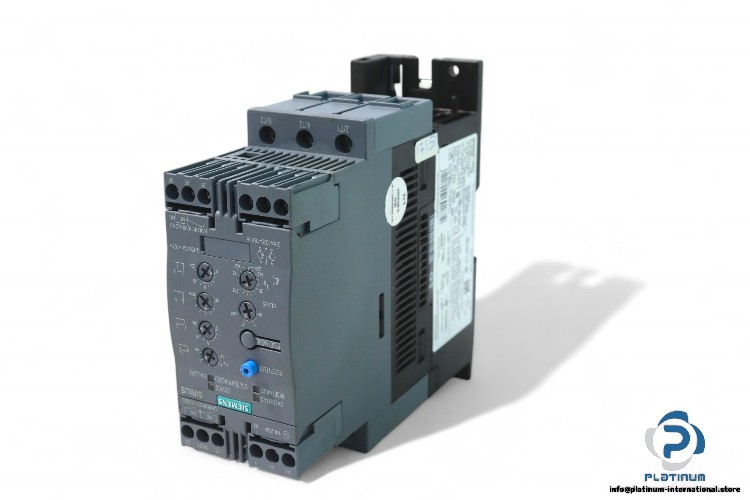

Siemens 3RW4036-1BB15 Soft Starter
Siemens Soft Starter 3RW4036-1BB15, 45 A nominal akım, 30 kW mekanik performans ve IP20 koruma ile yumuşak motor kontrolü için yüksek performanslı bir cihaz. Ayarlanabilir motor akımı ve 600 V nominal izolasyon gerilimi.
Soft Starter 3RW4036-1BB15 by Siemens
The Siemens Soft Starter 3RW4036-1BB15 is a high-performance device designed to efficiently start and stop 3-phase motors, ensuring smooth and reliable operation. Ideal for industrial applications, it offers exceptional protection and control, reducing mechanical stress on motors and extending their lifespan.
Key features include:
- Number of Poles: 3
- Number of Connections: 2 NO / 1 CO
- Control Supply Voltage: 110 “ 230 V AC/DC
- Insulation Voltage Rated Value: 600 V
- Operating Current (at 40°C): 45 A, (at 50°C): 42 A, (at 60°C): 39 A
- Mechanical Performance for 3-Phase Motors @500 V: 30 kW
- Short Circuit Protection: 10 kA, 600 V
- Operating Frequency: 50 / 60 Hz
- Operating Voltage: 400 / 600 V AC
- Adjustable Motor Current: 23 A
- Rated Impulse-Withstand Voltage (Uimp): 6 kV
- Protection Class: IP20
- Operating Temperature: -25 / 60 °C
- Dimensions: 55 x 160 x 170 mm
Designed to work with a wide range of industrial motors, the Siemens Soft Starter ensures precise control, energy efficiency, and protection from electrical faults, providing an optimal solution for demanding motor control applications.
