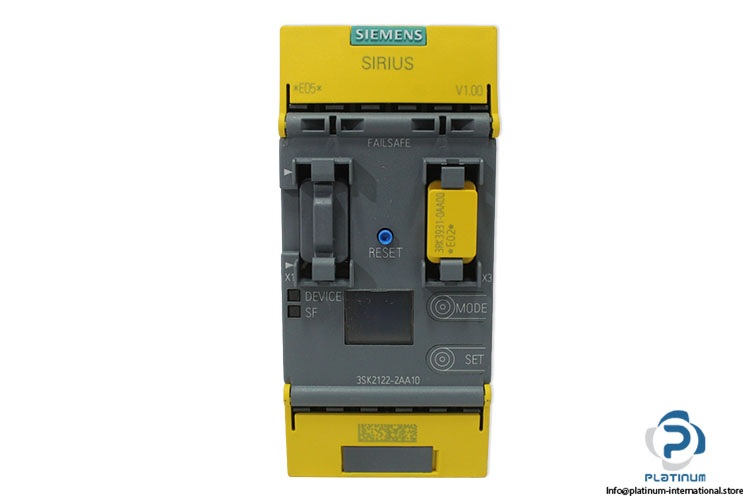

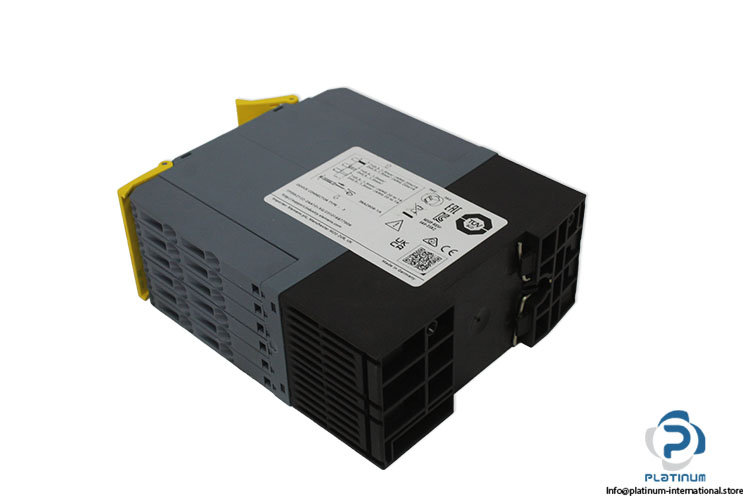

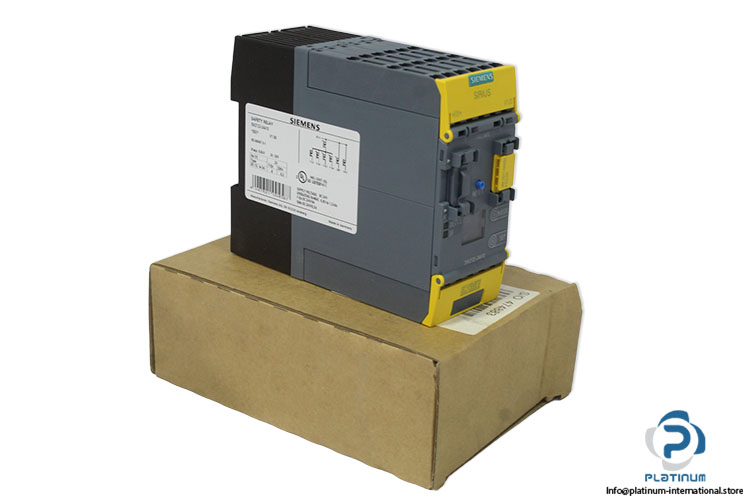

Siemens 3SK2122-2AA10 Safety relay Basic Unit
Yeni
Stokta2 ünitelerSevkiyata hazır
Safety Relay Base Unit SIEMENS SIRIUS safety relay base unit designed for industrial safety control, digital input monitoring, and reliable machine protection applications.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

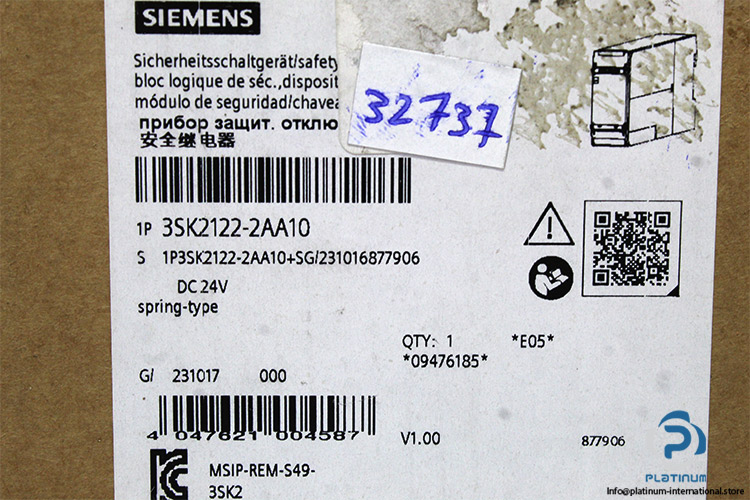

| MNR | 3SK2 122-2AA10 |
| Code | 1P3SK2122-2AA10+SG/231016877906 |
| SN | 4 047621 004587 |
| Ref no | 09476185 |
| product brand name | SIRIUS |
| product category | Safety relay |
| product designation | Base-Unit |
| input delay time | 0 ... 150 ms |
| type of digital inputs according to IEC 60947-1 | Type 1 |
| ingress aquisition time at digital input maximum | 60 ms |
| input delay time at digital input maximum | 150 ms |
| input voltage at digital input at DC rated value | 24 V |
| input current at digital input ? for signal typical | 2.6 mA |
| design of the product | 20 F-DI, 4 F-DQ, 2 DQ |
| protective devices according to IEC 61496-1 | Yes |
| number of function blocks typical | 50 |
| insulation voltage rated value | 50 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 800 V |
| protection class IP ? of the enclosure | IP20 |
| ambient temperature ? during operation | -25 ... +60 °C |
| number of outputs | safety-related 2-channel 4 ? for testing contact-based sensors 4 |
| height | 100 mm |
| width | 45 mm |
| depth | 124.5 mm |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1099216 |
| Weight | 0,38 |
