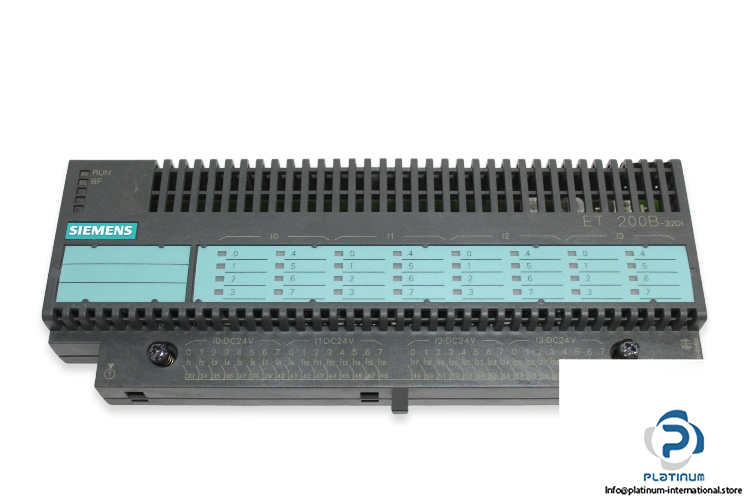

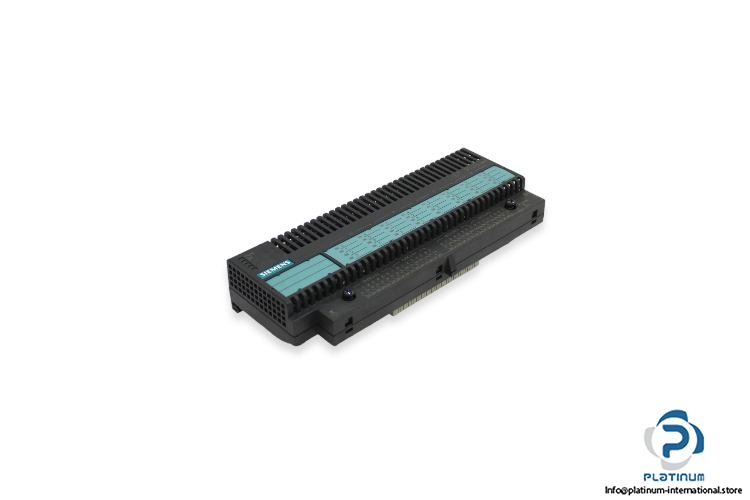

Siemens 6ES7 131-0BL00-0XB0 Digital Input Module
155,55$
ET 200B sistemleri için 32 dijital giriş, 24 V DC besleme, PROFIBUS DP iletişim ve IP20 koruma özelliklerine sahip SIEMENS SIMATIC S7 DİJİTAL GİRİŞ MODÜLÜ Model 6ES7131-0BL00-0XB0. Verimli endüstriyel otomasyon için idealdir.
SIEMENS SIMATIC S7 DIGITAL INPUT MODULE “ 6ES7131-0BL00-0XB0
The Siemens Simatic S7 Digital Input Module is engineered to ensure high reliability and fast input response in automation systems. Designed for ET 200B systems and operating on PROFIBUS DP, this module is an ideal solution for complex industrial applications requiring compact size and robust performance.
Manufacturer: Siemens
Type: Digital Input Module
Model Reference Number (MRN): 6ES7131-0BL00-0XB0

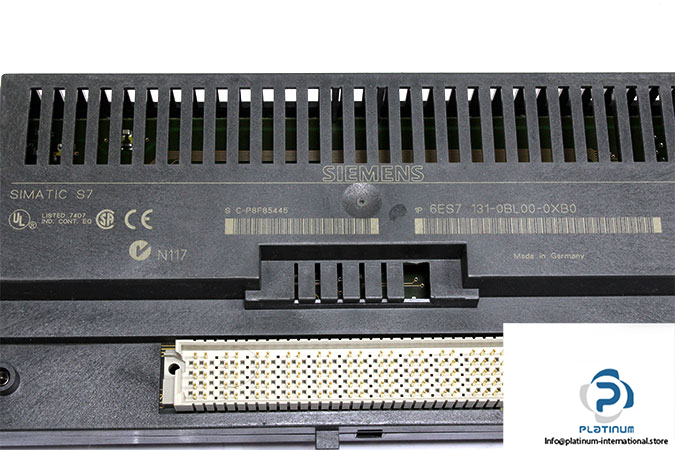

Serial No.: C-P8F85445
Family: Simatic S7
Used For: ET 200B
| Supply Voltage | 24 V DC (18.5 / 30.2 V DC) |
| Current Consumption | max. 1000 mA |
| Power Loss | 4.8 W |
| Input Delay | 3 ms |
| Number of Digital Inputs (DI) | 32 |
| Input Current for Signal œ1 | typ. 4 mA |
| Bus Protocol | PROFIBUS DP |
| Connection | Screw-type and spring-loaded terminals |
| Degree of Protection | IP20 |
| Dimensions | 235 x 60 x 130 mm |
