Siemens 6FC5203-0AF02-0AA1 / A5E03347910 Operator Panel

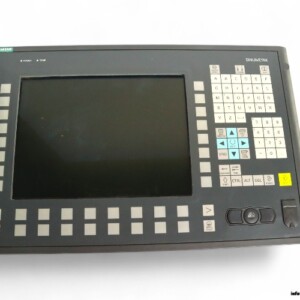

SIEMENS Operator Panel SINUMERIK OP 012

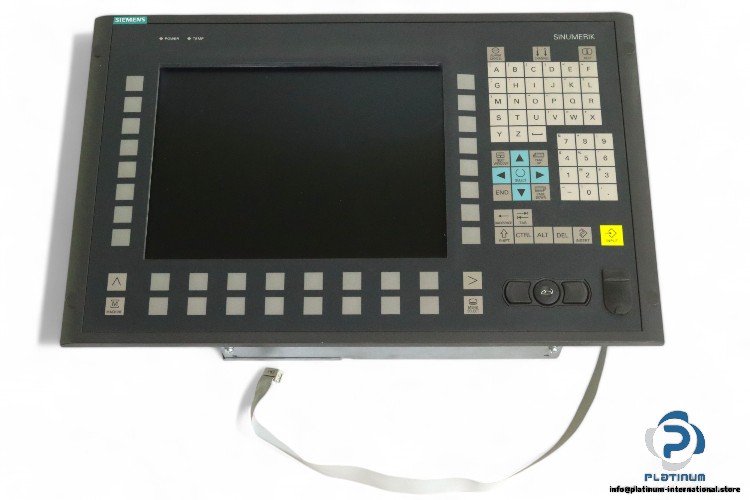

The SIEMENS Operator Panel (Model: 6FC52030AF020AA1) is a high-quality operator interface designed for precise control in industrial applications. It features a 12.1″ TFT display with membrane keys and a mouse, offering a resolution of 800 x 600 pixels. The panel operates with a 5 V DC supply voltage and a maximum power consumption of 21 W. Designed for robust environments, the panel is IP65 rated, providing excellent protection against dust and water ingress. Its ambient temperature range is from 0°C to 55°C, making it suitable for various industrial conditions. The dimensions of the operator panel are 310 mm x 483 mm x 30 mm.

🔧 Technical Specifications:

• Manufacturer: SIEMENS
• Type: Operator Panel

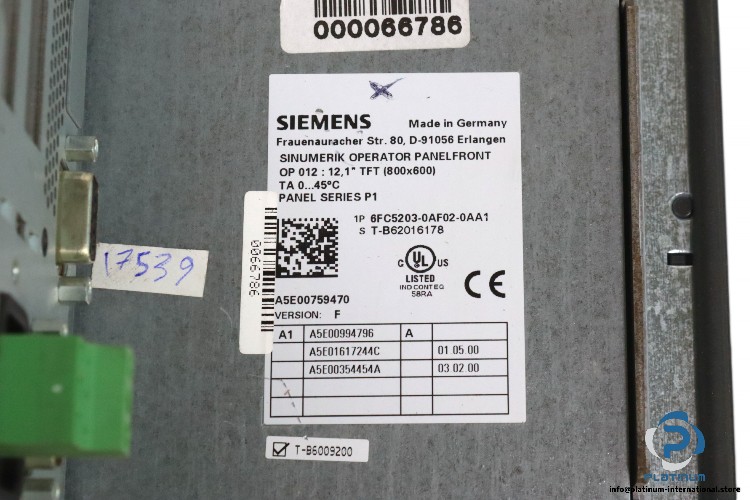

• Model Number: 6FC52030AF020AA1
• Range: SINUMERIK OP 012
• Display Design: 12.1″ TFT with Membrane Keys and Mouse
• Resolution: 800 x 600 pixels
• Supply Voltage: 5 V DC
• Power Consumption Max.: 21 W
• Protection Class: IP65
• Ambient Temperature Range: 0 / 55 °C
• Dimensions (W x H x D): 310 mm x 483 mm x 30 mm

Base Software: SIEMENS A5E03347910

The SIEMENS A5E03347910 Base Software (Model: PCU50.3b-C) is specifically designed for the SINUMERIK range, ensuring seamless operation and integration with the operator panel. This software is essential for the proper functionality of the SINUMERIK systems and provides users with a reliable and optimized interface for industrial control.

🔧 Base Software Technical Specifications:

• Manufacturer: SIEMENS
• Type: Base Software

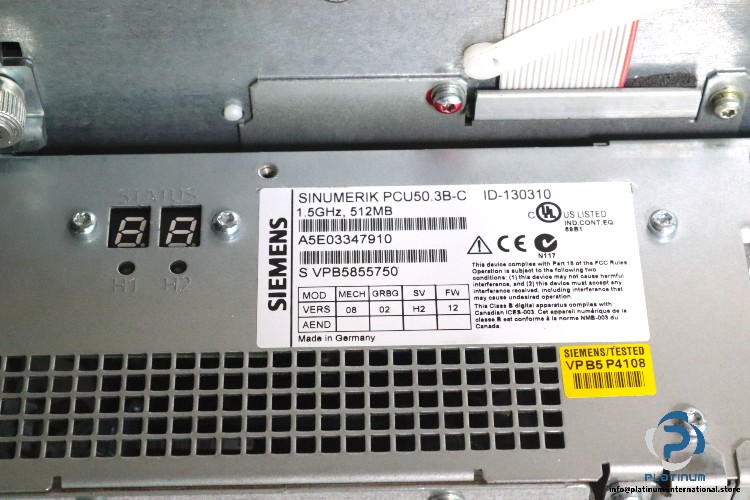

• Model Number: PCU50.3b-C
• Part Number: A5E03347910
• ID Number: 130310
• Range: SINUMERIK
