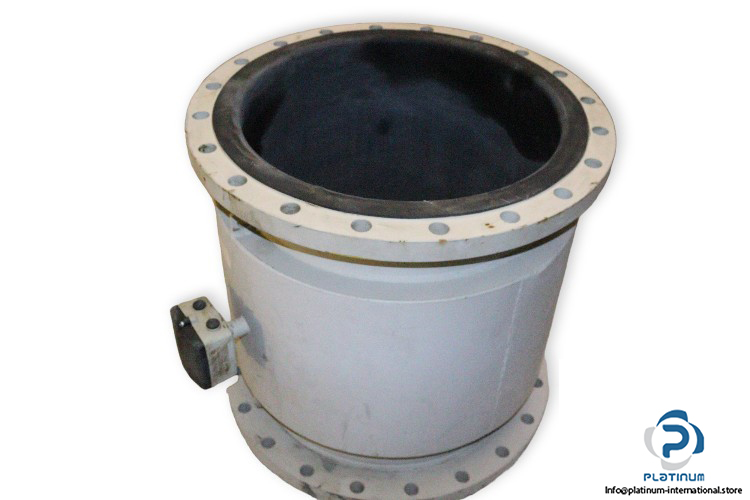

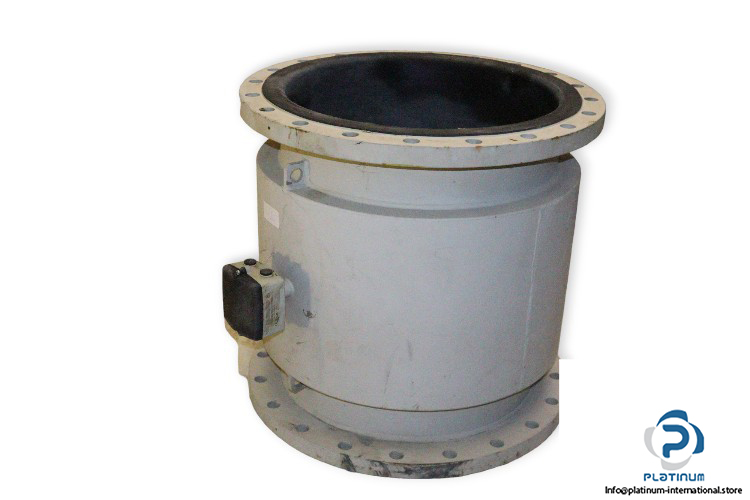

Siemens 7ME63506PB111AA0 Flow Meter

Manufacturer: Siemens
Type: Electromagnetic Flow Meters
Model: 7ME63506PB111AA0
Serial Nr.: 7ME635 243435T407

Input Max. Voltage [V]: 60
Input Max. Current [A]: 0.12
Diameter Nominal [mm]: DN 600
Nominal Pipe Size [In]: 24”
Max. Pressure [bar]: 10
Min. Pressure [bar]: 0.01
Range Temperature [°C]: 0…70
Lining: Neoprene
Material: Cast Iron
KA-Factor: 306.226
Enclosure Protection [IP]: 68
