Siemens FT2001-A1 Mimic Display Driver

Name: SIEMENS FT2001-A1 MIMIC DISPLAY DRIVER
Brand: SIEMENS
SKU: 995074
Availability: LimitedAvailability

siemens-ft2001-a1-mimic-display-driver-1

siemens-ft2001-a1-mimic-display-driver-2

siemens-ft2001-a1-mimic-display-driver-3

Kullanılmış

Stokta1 birimSevkiyata hazır

MIMIC DISPLAY DRIVER Siemens FT2001-A1, 2x 24 LED çıkışlı, programlanabilir fonksiyonlara, FDnet/C-NET bağlantısına ve entegre hat ayırıcıya sahip mimic display driver. AC/DC beslemeyi ve yerel sinyal kontrolünü destekler.

Üretici

SIEMENS

SKU

995074

Kategori

Circuit Boards

Koşul

Kullanılmış

AC C-NET Compatible Control Controller dc Device Display Driver FDnet Fire Integrated Interface LED Line mimic Module Output programmable Separator Siemens Signal System

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

SIEMENS FT2001-A1 MIMIC DISPLAY DRIVER

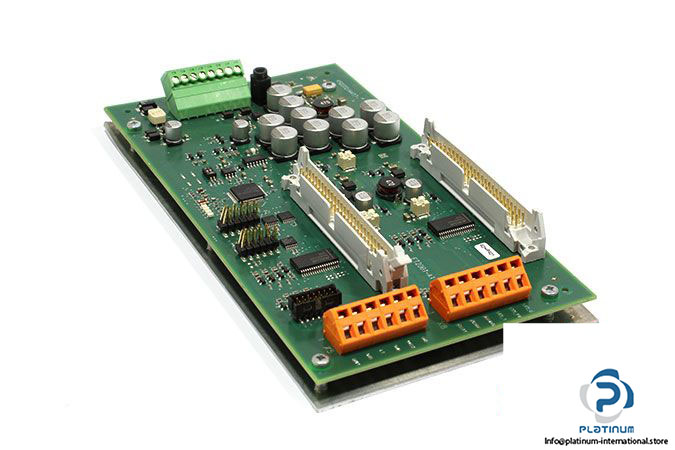

The Siemens FT2001-A1 is a versatile mimic display driver designed for integration into fire detection and signaling systems. With fully programmable outputs and multiple connection options, it enables precise control and monitoring of LED-based mimic displays and periphery devices.

Manufacturer: Siemens

Type: Mimic Display Driver

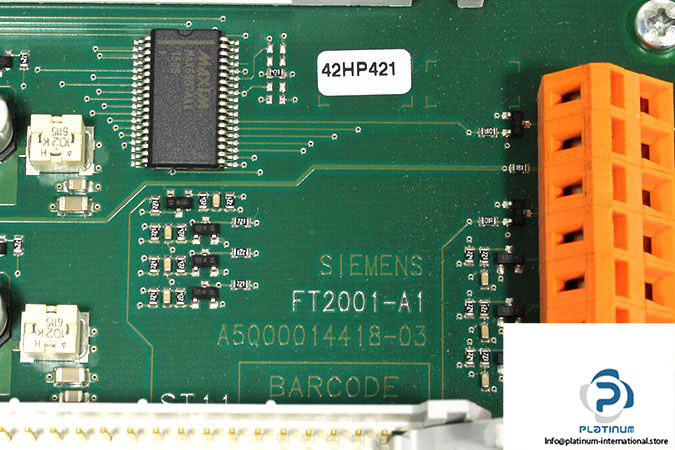

Model: FT2001-A1

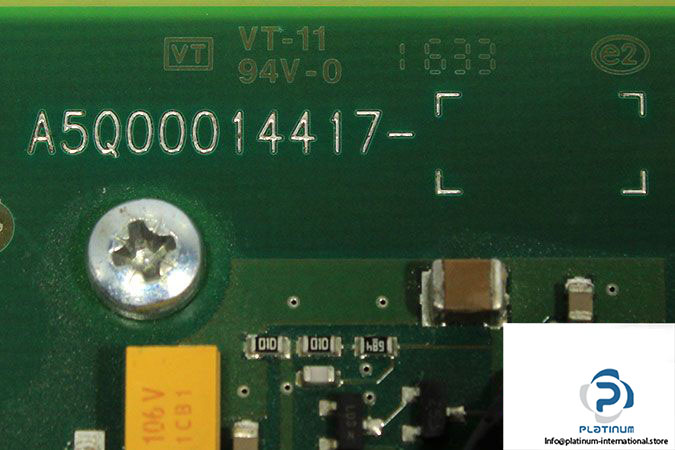

Order No.: A5Q00014417

MRN: A5000014418-03

Connection	FDnet / C-NET
Power Supply	Via FDnet / C-NET or external AC/DC
Programmable Outputs	2x 24 outputs for LEDs, 3 for expanded periphery
Control Outputs	2 outputs for buzzer and LED status
Function Inputs	2 inputs for ˜Silence Buzzer™ and ˜LED Test™
Line Separator	Integrated
MC Link	For firmware update
Voltage Supply	14 / 32 VDC / 11 / 22 V AC
LED Signal Output Connection	Plug-type with flat-ribbon cable
Terminal Connection	0.08 / 1.5 mm²
Operating Temperature	0 / 40 °C
