Siemens Nkodh Relay Terminal Module
RÖLE TERMINAL MODÜLÜ RS kart girişli, 0-10 V DC sinyal aralığına sahip kompakt ve verimli röle terminal modülü, 250 V AC / 6 A'ya kadar derecelendirilmiş röle kontakları. Kontrol ve otomasyon sistemleri için idealdir.

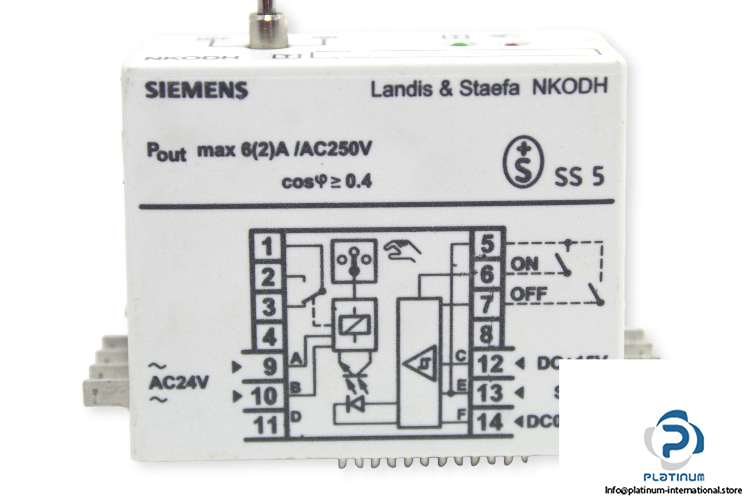

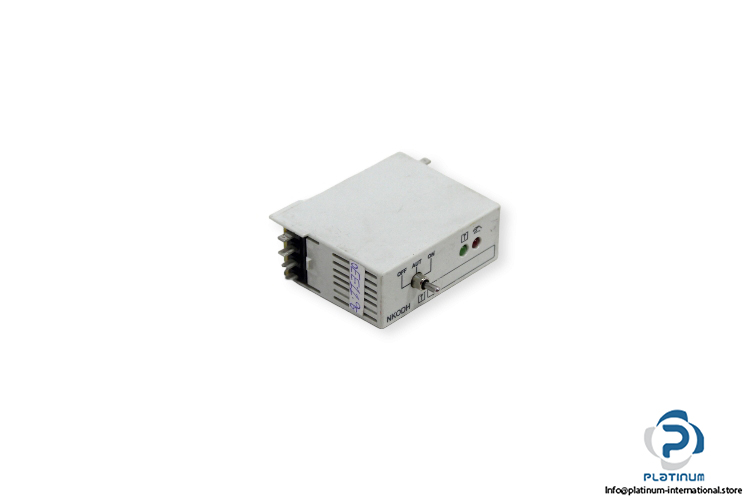

SIEMENS / LANDIS & STAEFA NKODH RELAY TERMINAL MODULE
The Siemens / Landis & Staefa NKODH is a high-reliability relay terminal module designed for control systems requiring accurate signal handling and dependable switching performance. Suitable for industrial automation and building management systems, this compact unit ensures precise relay operations with minimal power consumption.
Manufacturer: Siemens / Landis & Staefa
Type: Relay Terminal Module
Model: NKODH
Max. 250 V AC, Max. 6 A resistive load
| Voltage Supply (Nominal) | 15 V DC ±10 %, 24 V AC |
| Current Consumption (Max) | 10 mA |
| Power Consumption (Max) | 0.75 VA |
| Signal Input | RS card module |
| Range Input Signal | 0 / 10 V DC |
| Input Impedance | 100 k„¦ |
| Signal Output | Relay contact |
| Contact Rating | (2 N.O), (1 N.C) |
| Connection | By terminals directly on the base |
| Mounting | Plugged into base |
| Operating Temperature | 5 / +45°C |
| Dimensions | 24 x 68 x 58 mm |
