Siemens SP240S-MF2 Planetary Gearbox
Yeni
Stokta1 birimSevkiyata hazır
PLANETARY GEARBOX
High-torque Siemens SP240S-MF2 planetary gearbox with 1:28 ratio and 816 Nm rated torque. Features 2-stage design, 85 mm shaft, and SP+ series reliability for industrial applications.2combinationDriveDutyGearGearboxHeavyHighIndustrialmotorPlanetaryPowerPrecisionSeriesSiemensSPStageSystemTorqueTransmissionUnit
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

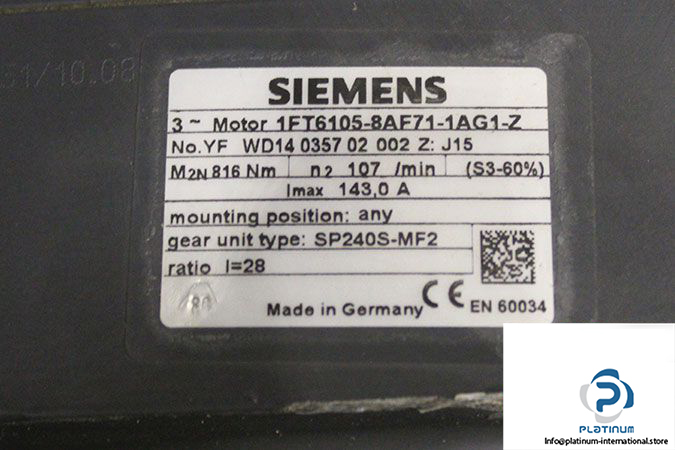

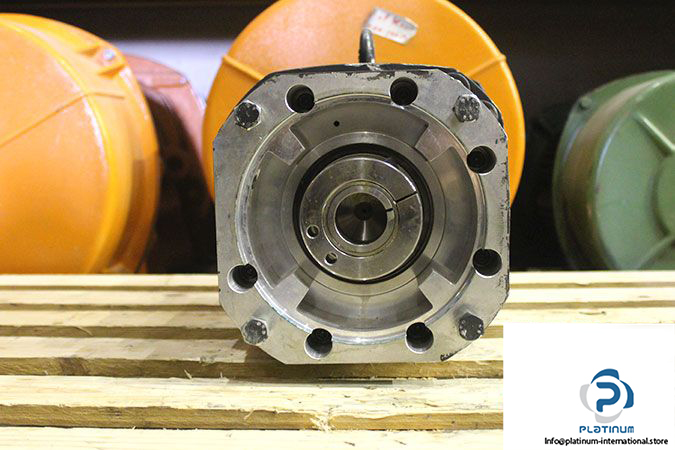

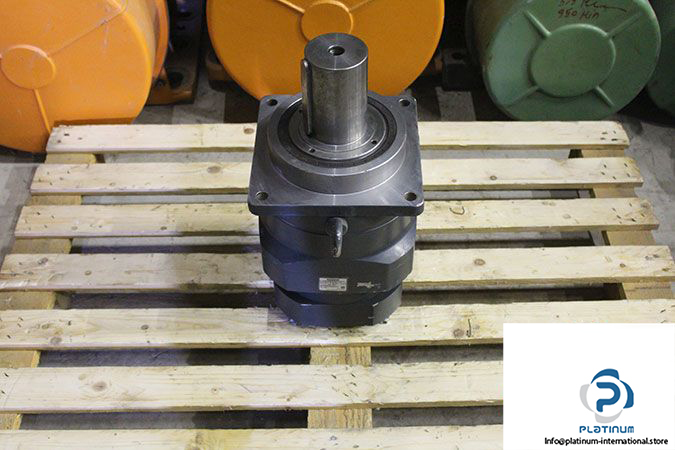

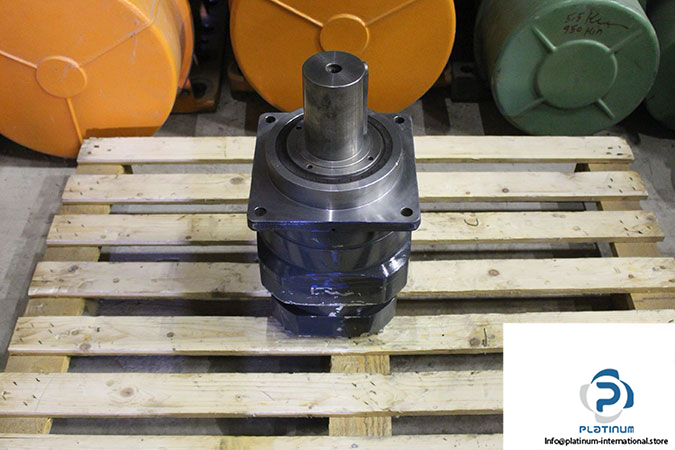

SIEMENS SP240S-MF2 PLANETARY GEARBOX WITH MOTOR
The Siemens SP240S-MF2 planetary gearbox with 1FT6105-8AF71-1AG1-Z motor is designed for high torque transmission, precision performance, and adaptability in demanding industrial applications. Its robust SP+ series build ensures reliable operation under heavy loads, while the 2-stage configuration delivers smooth and efficient power transfer.
Manufacturer: Siemens
Type: Planetary Gear Box
Gear Unit Model: SP240S-MF2
Motor Model: 1FT6105-8AF71-1AG1-Z
Part No.: wd14 0357 02 002 z: j15
| Ratio | 1:28 |
| Series | SP+ |
| Frame Size | 240 |
| Mounting Position | Any |
| Number of Stage | 2-stage |
| Shaft | 85 mm |
| Hollow Shaft | 38 mm |
| Flange Diameter | 210 mm |
| Max Current | 143 A |
| Rated Torque | 816 Nm |
| Rated Speed | 107 rpm |
