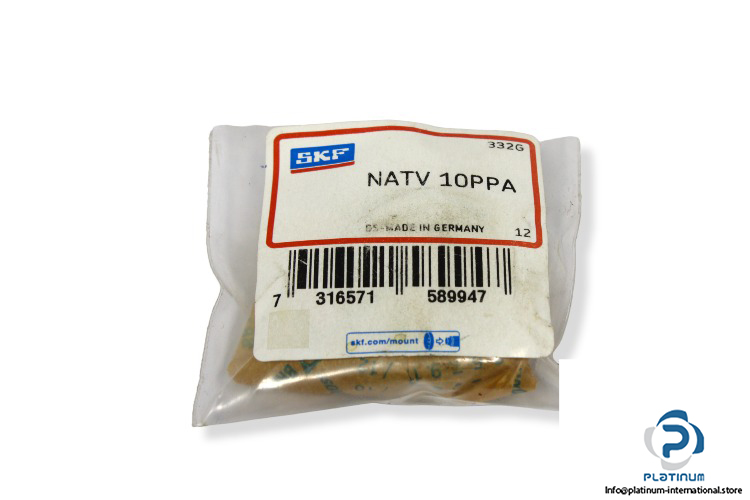

SKF Natv 10PPA Support Roller

Manufacturer: SKF

Type: Support roller (yoke-type track roller) with flange rings, integral sealing and relubrication feature

Model: NATV10PPA

Replaces: NATV 10 PP

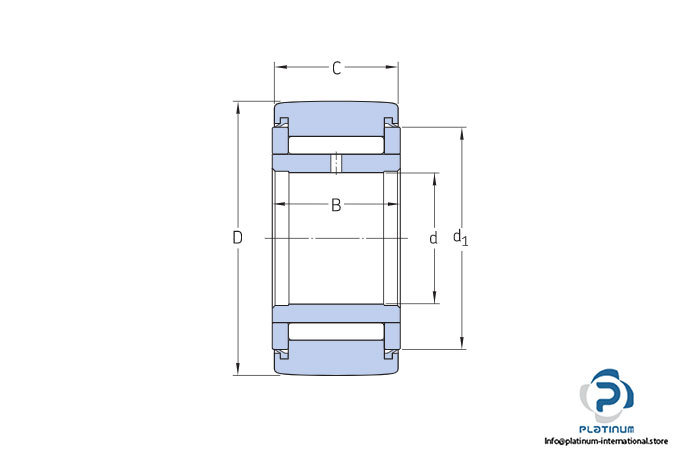

Dimensions:

Bore Diameter d: 10 mm

Outer diameter D: 30 mm

Width of the bearing B: 15 mm

Width outer ring C: 14 mm

Outer ring profile: Crowned

Basic load ratings:

Dynamic C: 10.1 kN

Static C₀: 13.4 kN

Limiting speed: 3200 rpm
