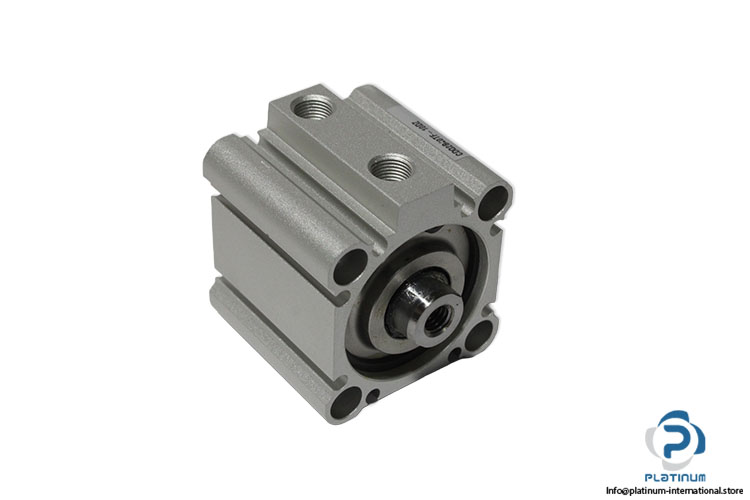

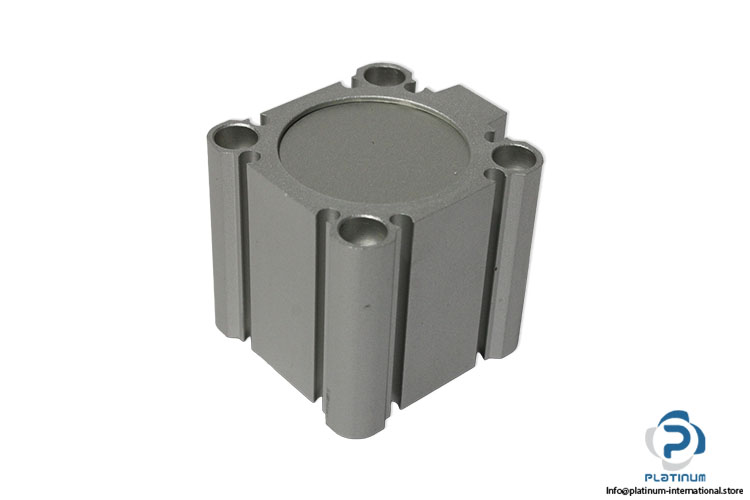

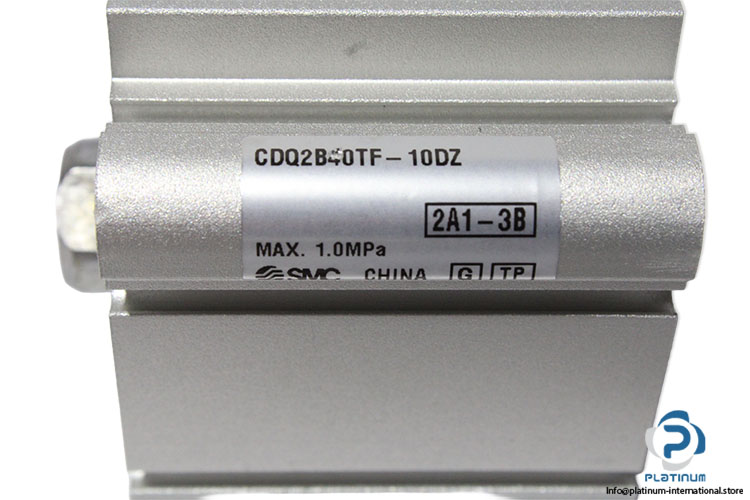

SMC CDQ2B40TF-10DZ Compact Cylinder
Yeni
Stokta1 birimSevkiyata hazır
The SMC CDQ2B40TF-10DZ Compact Cylinder is a precision pneumatic actuator featuring a 40 mm bore, 10 mm stroke, double-acting operation, built-in magnet, and aluminum alloy construction, designed for reliable and space-saving industrial automation applications.
ActingActuatorAirAluminumAutomationbuiltCompactComponentsCQ2CylinderDoubleinIndustrialMagnetmoPneumaticSMC
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
| Code | 2A1-3B / G TP |
| Series | CQ2-Z |
| Fluid | Air |
| Stroke | 10 mm |
| Bore Size | 40 mm |
| Piping Type | Built-in One-touch fittings |
| Operating Mode | Double acting, female thread |
| Magnet | With auto switch Built-in magnet |
| Mounting Type | Through-hole (Standard) |
| Proof pressure | 1.5 MPa |
| Operating pressure | max. 1 MPa/10 bar |
| Piston speed | 50 to 500 mm/s |
| Lubrication | Pneumatic (Non-lube) |
| Port size | G1/8 |
| Material Cylinder Tube | Aluminum alloy |
| Ambient and fluid temperature | -10 to 60°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097440 |
| Weight | 0,30 |
